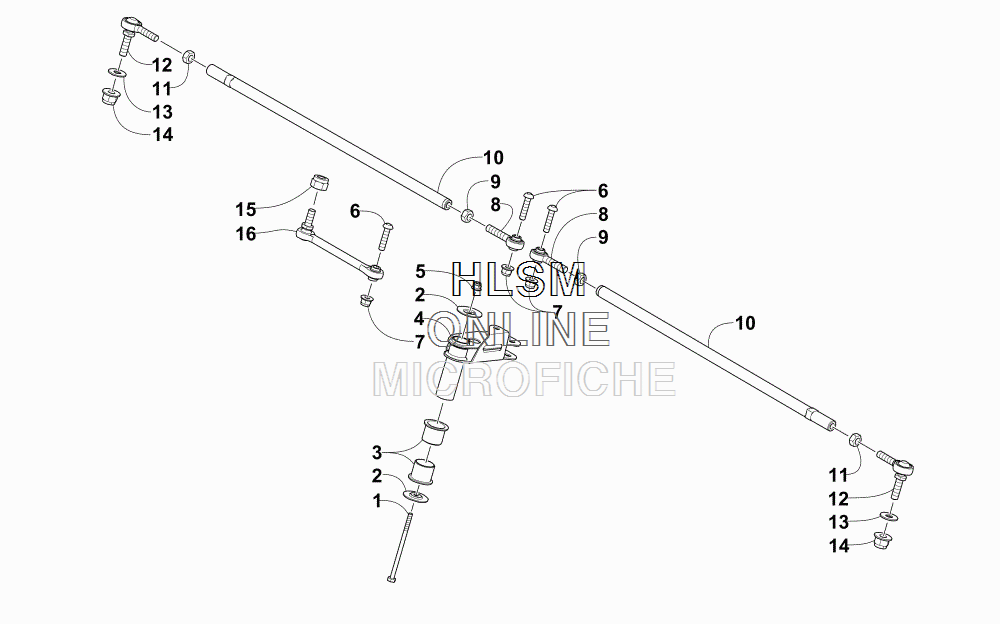

TIE ROD ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8402-600 SCREW,CAP-HH M6X1X100 8.8 Z & Y
    SCREW,CAP-HH M6X1X100 8.8 Z & Y
  • 2
    1623-807 WASHER,STEPPED-BELLCRANK
    WASHER,STEPPED-BELLCRANK
  • 3
    1605-161 BUSHING, PLASTIC (PFI1618-16)
    BUSHING, PLASTIC (PFI1618-16)
  • 4
    1705-488 BELLCRANK - PAINTED (BLACK)
    BELLCRANK - PAINTED (BLACK)
  • 5
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 6
    2623-026 SCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZ
    SCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZ
  • 7
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 8
    1605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 9
    8420-002 NUT - RIGHT-HAND THREAD
    NUT - RIGHT-HAND THREAD
  • 10
    1605-088 TUBE, TIE ROD - SPINDLE
    TUBE, TIE ROD - SPINDLE
  • 11
    0423-013 NUT,HEX M10-1.25(LH) Z & Y
    NUT,HEX M10-1.25(LH) Z & Y
  • 12
    1605-019 ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
    ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
  • 13
    1623-803 WASHER,FLAT HARD-M10X20X2.30 Z & Y
    WASHER,FLAT HARD-M10X20X2.30 Z & Y
  • 14
    8427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
  • 15
    8422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M10X1.25 CL8 Z & Y
  • 16
    1605-109 DRAGLINK, STEERING - 106 MM
    DRAGLINK, STEERING - 106 MM
