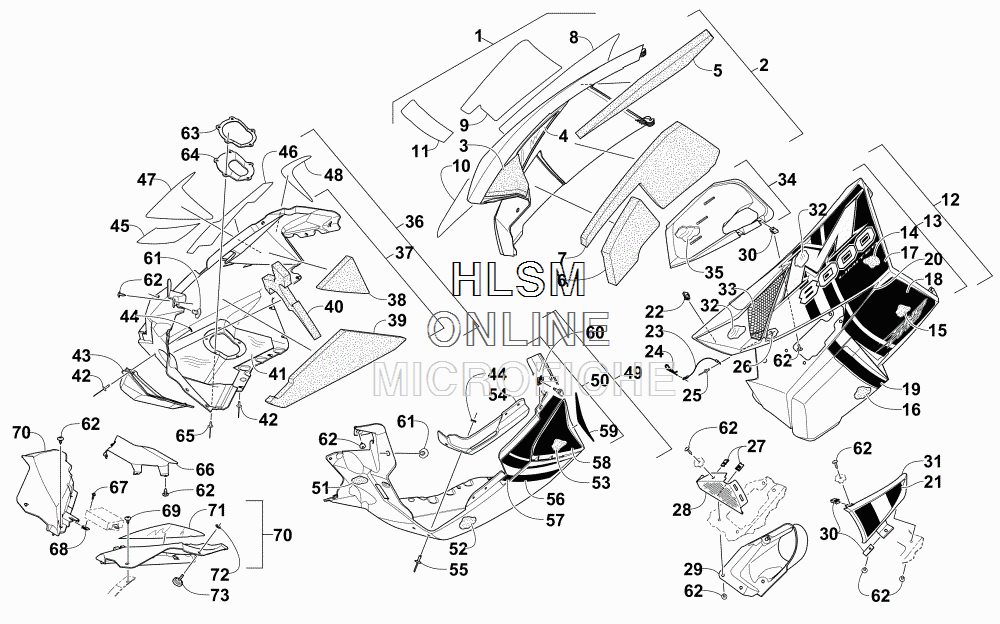

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 162 (GREEN) [S2015M8HELUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-204 PANEL, SIDE W/DECALS - RIGHT - (WHITE) (INC. 2-11)PANEL, SIDE W/DECALS - RIGHT - (WHITE) (INC. 2-11)
-
23718-438 ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
81621-666 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-672 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
101621-670 ...DECAL, SIDE PANEL - CENTER - RIGHT...DECAL, SIDE PANEL - CENTER - RIGHT
-
111621-674 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
124718-205 PANEL, SIDE W/DECALS - LEFT - (WHITE) (INC. 13-21)PANEL, SIDE W/DECALS - LEFT - (WHITE) (INC. 13-21)
-
134718-555 ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) (INC. 14-16)...PANEL, SIDE W/O DECALS - LEFT - (WHITE) (INC. 14-16)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
171621-667 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
181621-673 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
191621-675 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
202621-291 ...DECAL, SIDE PANEL - CENTER - LEFT...DECAL, SIDE PANEL - CENTER - LEFT
-
212621-289 ...DECAL, SIDE PANEL - CENTER VENT - LEFT...DECAL, SIDE PANEL - CENTER VENT - LEFT
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-447 CABLE,5"-HAIRPINCABLE,5"-HAIRPIN
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
268050-127 WASHER,FLAT- #8 X .375 X .049 Z & YWASHER,FLAT- #8 X .375 X .049 Z & Y
-
271623-052 CLIP, U-NUTCLIP, U-NUT
-
286606-925 SCREEN, INTAKESCREEN, INTAKE
-
292602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
301623-030 CLIP, U-NUTCLIP, U-NUT
-
312602-803 DUCT, INTAKE - OUTER - (WHITE)DUCT, INTAKE - OUTER - (WHITE)
-
320619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
335706-531 SCREEN, INTAKESCREEN, INTAKE
-
341702-369 DUCT, AIR - CLUTCH (INC. 35)DUCT, AIR - CLUTCH (INC. 35)
-
356606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
364718-206 PLATE, SKID W/DECALS - RIGHT - (WHITE) (INC. 37-48)PLATE, SKID W/DECALS - RIGHT - (WHITE) (INC. 37-48)
-
374718-532 ...PLATE, SKID W/O DECALS - RIGHT - (WHITE) (INC. 38-44)...PLATE, SKID W/O DECALS - RIGHT - (WHITE) (INC. 38-44)
-
380617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
390617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
400617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
412612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
428061-708 ......RIVET, BLIND-LF SS66 (BLACK)......RIVET, BLIND-LF SS66 (BLACK)
-
432612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
440123-802 ......WASHER,FLAT .194X.50X.048......WASHER,FLAT .194X.50X.048
-
451621-678 ...DECAL, SKID PLATE - FRONT - RIGHT...DECAL, SKID PLATE - FRONT - RIGHT
-
461621-676 ...DECAL, SKID PLATE - UPPER - RIGHT...DECAL, SKID PLATE - UPPER - RIGHT
-
471621-680 ...DECAL, SKID PLATE - LOWER - RIGHT...DECAL, SKID PLATE - LOWER - RIGHT
-
481621-682 ...DECAL, SKID PLATE - REAR - RIGHT...DECAL, SKID PLATE - REAR - RIGHT
-
494718-207 PLATE, SKID W/DECALS - LEFT - (WHITE) (INC. 50-59)PLATE, SKID W/DECALS - LEFT - (WHITE) (INC. 50-59)
-
504718-533 ...PLATE, SKID W/O DECALS - LEFT - (WHITE) (INC. 51-55)...PLATE, SKID W/O DECALS - LEFT - (WHITE) (INC. 51-55)
-
510617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
520617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
530617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
546606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
558061-688 ......RIVET,BLIND-LF SS66 ZINC......RIVET,BLIND-LF SS66 ZINC
-
561621-679 ...DECAL, SKID PLATE - FRONT - LEFT...DECAL, SKID PLATE - FRONT - LEFT
-
571621-677 ...DECAL, SKID PLATE - UPPER - LEFT...DECAL, SKID PLATE - UPPER - LEFT
-
581621-681 ...DECAL, SKID PLATE - LOWER - LEFT...DECAL, SKID PLATE - LOWER - LEFT
-
591621-683 ...DECAL, SKID PLATE - REAR - LEFT...DECAL, SKID PLATE - REAR - LEFT
-
602623-005 CLIP,RECEPTACLE-1/4 TURN STUDCLIP,RECEPTACLE-1/4 TURN STUD
-
616606-592 PIN,RETAINER-BODY PLASTICPIN,RETAINER-BODY PLASTIC
-
621623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
632612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
642612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
658061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
-
666606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
678408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
680423-031 NUT,SPEED M6 X 1.0 U-TYPENUT,SPEED M6 X 1.0 U-TYPE
-
690623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
706606-342 FASCIA, FRONT - RIGHT - (BLACK)FASCIA, FRONT - RIGHT - (BLACK)
-
703718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 71)FASCIA, FRONT - LEFT - (BLACK) (INC. 71)
-
716606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
722623-001 RETAINER,PUSHNUT-3/16" STUDRETAINER,PUSHNUT-3/16" STUD
-
731623-999 SCREW, THUMBSCREW, THUMB
