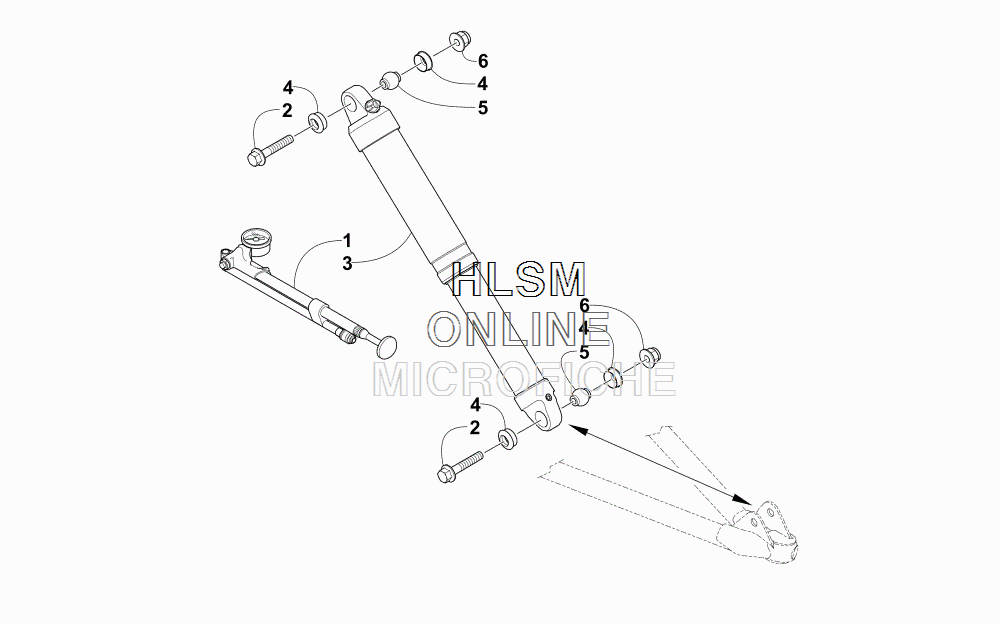

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 162 (GREEN) [S2015M8HELUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12603-614 PUMP, FOX HP W/BLEED - 150 PSI (FLOAT2)PUMP, FOX HP W/BLEED - 150 PSI (FLOAT2)
-
28413-850 SCREW,CAP-HFH M8X1.25X50 CL10.9 (SILVER)SCREW,CAP-HFH M8X1.25X50 CL10.9 (SILVER)
-
33703-284 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
43603-260 BUSHING,SHOCK (BLACK)BUSHING,SHOCK (BLACK)
-
53603-261 SLEEVE,SHOCK EYELETSLEEVE,SHOCK EYELET
-
68437-804 NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
