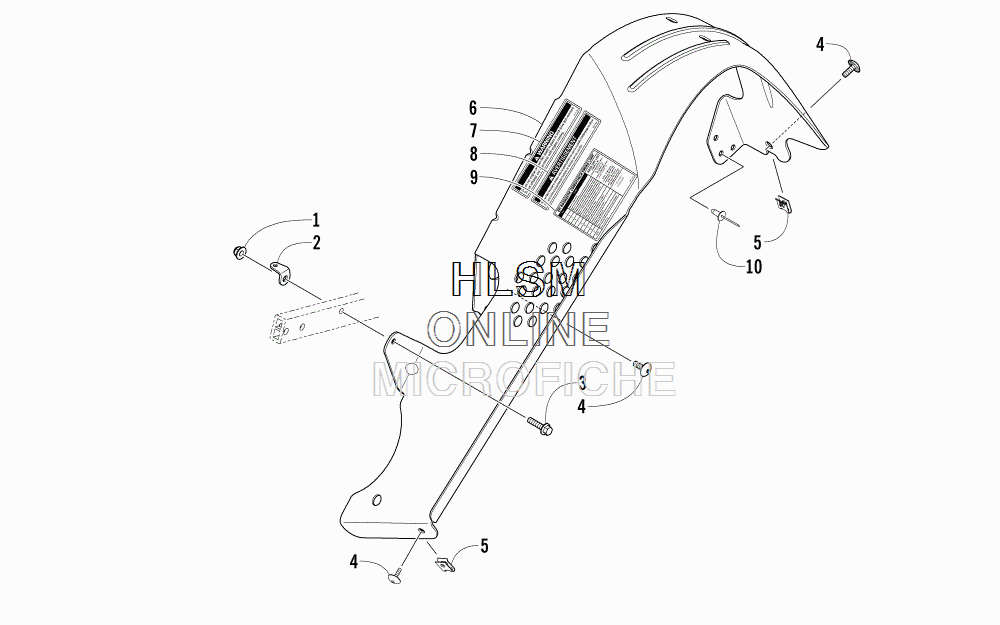

BELT GUARD ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 162 (GREEN) [S2015M8HELUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
  • 2
    2612-707 TAB, SPRING
    TAB, SPRING
  • 3
    8408-525 SCREW,CAP-HFH M5X0.8X25 CL8.8 Z & Y
    SCREW,CAP-HFH M5X0.8X25 CL8.8 Z & Y
  • 4
    0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
    SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
  • 5
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 6
    2707-275 GUARD, BELT (INC. 7-8)
    GUARD, BELT (INC. 7-8)
  • 7
    9611-690 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 8
    9611-691 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 9
    9611-743 DECAL, EFI DIAGNOSTIC CODES
    DECAL, EFI DIAGNOSTIC CODES
  • 10
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
