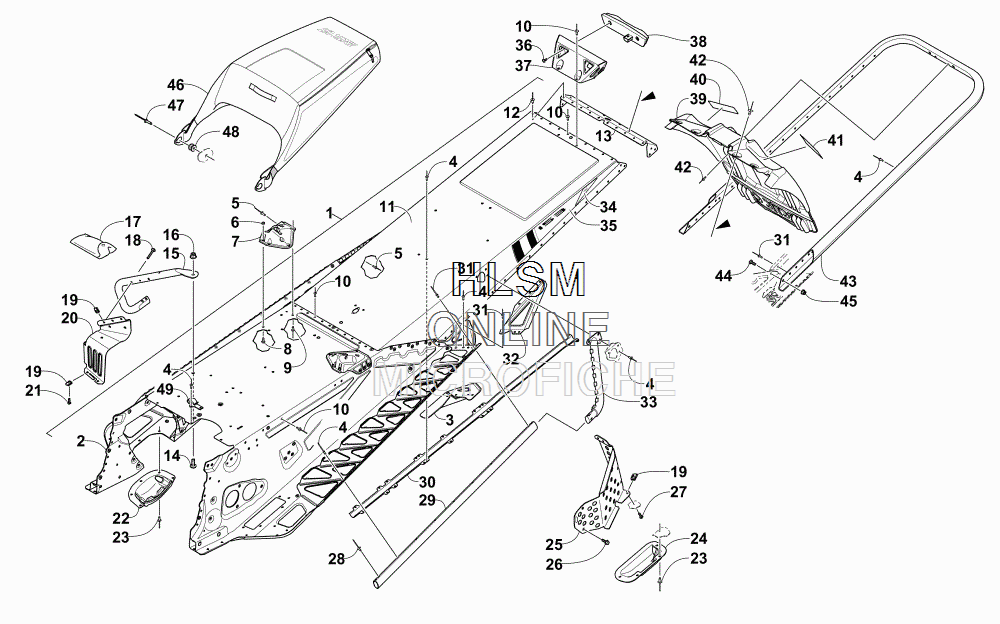

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (GREEN) [S2015M8HLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2707-092 COMPLETE CHASSIS ASSEMBLY - (BLACK)
    COMPLETE CHASSIS ASSEMBLY - (BLACK)
  • 1
    2707-302 TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)
    TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)
  • 2
    2707-294 ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)
  • 3
    2707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
  • 3
    2707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
    ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
  • 4
    8060-706 ......RIVET,BLIND-DH SS64 (BLACK)
    ......RIVET,BLIND-DH SS64 (BLACK)
  • 5
    1623-206 ...RIVET,3/16 HUCK-M9
    ...RIVET,3/16 HUCK-M9
  • 6
    8422-502 ...NUT, M5 X 1 NYL Z & Y
    ...NUT, M5 X 1 NYL Z & Y
  • 7
    1707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
  • 7
    1707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
  • 8
    8476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
    ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
  • 9
    1623-257 ...RIVET,3/16 HUCK-M5
    ...RIVET,3/16 HUCK-M5
  • 10
    8060-702 ...RIVET,BLIND-DH SS62 (BLACK)
    ...RIVET,BLIND-DH SS62 (BLACK)
  • 11
    2707-300 ...TUNNEL, REAR - (BLACK)
    ...TUNNEL, REAR - (BLACK)
  • 12
    8060-504 ...RIVET,BLIND-DH SS53 (BLACK)
    ...RIVET,BLIND-DH SS53 (BLACK)
  • 13
    1707-725 ...END CAP, TUNNEL - (BLACK)
    ...END CAP, TUNNEL - (BLACK)
  • 14
    8476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & Y
    SCREW,MACH-TSTRH M8X1.25X20 Z & Y
  • 15
    1707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)
    SUPPORT, FOOTREST - RIGHT - (BLACK)
  • 15
    1707-455 SUPPORT, FOOTREST - LEFT - (BLACK)
    SUPPORT, FOOTREST - LEFT - (BLACK)
  • 16
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 17
    0744-081 KIT,TOOL BAG-2 STROKE-ASSEMBLY
    KIT,TOOL BAG-2 STROKE-ASSEMBLY
  • 18
    8468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
  • 19
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 20
    1707-556 FOOTREST - RIGHT - (BLACK)
    FOOTREST - RIGHT - (BLACK)
  • 20
    1707-557 FOOTREST - LEFT - (BLACK)
    FOOTREST - LEFT - (BLACK)
  • 21
    8470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
  • 22
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 23
    8061-708 RIVET, BLIND-LF SS66 (BLACK)
    RIVET, BLIND-LF SS66 (BLACK)
  • 24
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 25
    2707-044 SHIELD, BRAKE DISC - (BLACK)
    SHIELD, BRAKE DISC - (BLACK)
  • 26
    8408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
    SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
  • 27
    8470-520 SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
  • 28
    1623-130 RIVET,3/16 HUCK-M4
    RIVET,3/16 HUCK-M4
  • 29
    1707-697 ROLL, TUNNEL - (BLACK)
    ROLL, TUNNEL - (BLACK)
  • 30
    0630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 31
    1623-241 RIVET,3/16 HUCK-M6
    RIVET,3/16 HUCK-M6
  • 32
    2707-288 GUSSET, RUNNING BOARD - RIGHT - (BLACK)
    GUSSET, RUNNING BOARD - RIGHT - (BLACK)
  • 32
    2707-289 GUSSET, RUNNING BOARD - LEFT - (BLACK)
    GUSSET, RUNNING BOARD - LEFT - (BLACK)
  • 33
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
    GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
  • 33
    1707-701 GUSSET, TUNNEL ROLL - LEFT - (BLACK)
    GUSSET, TUNNEL ROLL - LEFT - (BLACK)
  • 34
    0621-990 DECAL, REFLECTOR - (RED)
    DECAL, REFLECTOR - (RED)
  • 35
    1621-690 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 35
    1621-691 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 36
    8470-510 SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
  • 37
    0730-227 BRACKET, MOUNTING - TAILLIGHT - (BLACK)
    BRACKET, MOUNTING - TAILLIGHT - (BLACK)
  • 38
    0609-898 TAILLIGHT, LED (RED)
    TAILLIGHT, LED (RED)
  • 39
    6606-394 SNOWFLAP (BLACK)
    SNOWFLAP (BLACK)
  • 40
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 41
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 42
    8061-706 RIVET,BLIND-LF SS64 (BLACK)
    RIVET,BLIND-LF SS64 (BLACK)
  • 43
    2707-590 BUMPER, REAR - (BLACK)
    BUMPER, REAR - (BLACK)
  • 44
    8476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & Y
    SCREW,MACH-TSTRH M6X1.0X20 Z & Y
  • 45
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 46
    6606-600 SADDLEBAG,REAR
    SADDLEBAG,REAR
  • 47
    8060-630 RIVET,BLIND-DH AA68 (BLACK)
    RIVET,BLIND-DH AA68 (BLACK)
  • 48
    1623-940 MOUNT, SADDLEBAG
    MOUNT, SADDLEBAG
  • 49
    0645-709 CLIP,BATTERY CABLE
    CLIP,BATTERY CABLE
