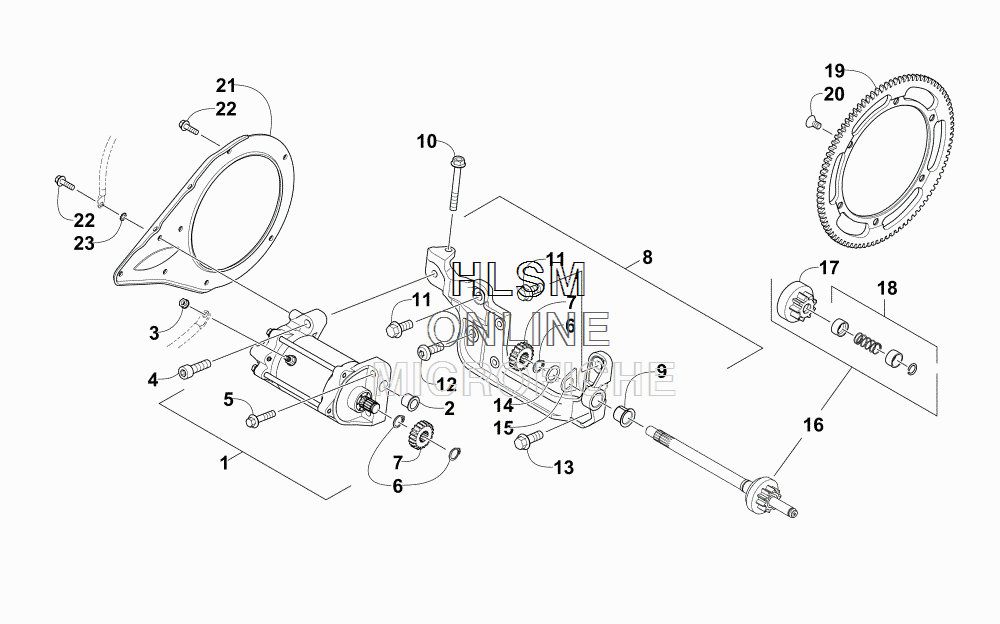

STARTER MOTOR ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (GREEN) [S2015M8HLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-370 MOTOR,STARTER W/BUSHING ASSEMBLY (INC. 2)
    MOTOR,STARTER W/BUSHING ASSEMBLY (INC. 2)
  • 2
    0645-108 ...BUSHING,SHAFT-PINION (OILITE)
    ...BUSHING,SHAFT-PINION (OILITE)
  • 3
    0623-038 NUT,HEX M6 Z & Y-SEMS (W/WASHER)
    NUT,HEX M6 Z & Y-SEMS (W/WASHER)
  • 4
    1423-093 SCREW,CAP-HSH M10 X 1.25 X 35
    SCREW,CAP-HSH M10 X 1.25 X 35
  • 5
    8408-836 SCREW,CAP-HFH M8X1.25X35 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X35 CL8.8 W/2353
  • 6
    0645-638 RING,RETAINING-EXTERNAL-14MM-SHAFT
    RING,RETAINING-EXTERNAL-14MM-SHAFT
  • 7
    0645-678 GEAR,STARTER-20T-9.52MM
    GEAR,STARTER-20T-9.52MM
  • 8
    0745-400 BRACKET, MOUNTING - STARTER MOTOR (INC. 9)
    BRACKET, MOUNTING - STARTER MOTOR (INC. 9)
  • 9
    0645-749 ...BUSHING, PINION SHAFT
    ...BUSHING, PINION SHAFT
  • 10
    1623-945 SCREW,CAP-HFH-M8X1.25X65 CL 10.9
    SCREW,CAP-HFH-M8X1.25X65 CL 10.9
  • 11
    8409-026 SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353
    SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353
  • 12
    1623-963 SCREW,MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9
    SCREW,MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9
  • 13
    8409-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
    SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
  • 14
    0645-752 WASHER,THRUST 17.17 ID X 24.41 OD.
    WASHER,THRUST 17.17 ID X 24.41 OD.
  • 15
    0645-780 WASHER,THRUST-16.6ID X 33.3 OD X 2.66MM
    WASHER,THRUST-16.6ID X 33.3 OD X 2.66MM
  • 16
    0745-405 SHAFT, PINION - ASSEMBLY (INC. 17-18)
    SHAFT, PINION - ASSEMBLY (INC. 17-18)
  • 17
    0645-686 ...GEAR,PINION-10T
    ...GEAR,PINION-10T
  • 18
    0745-398 ...PINION STOPPER ASSEMBLY
    ...PINION STOPPER ASSEMBLY
  • 19
    0745-402 RING GEAR, ELECTRIC START - TREATED
    RING GEAR, ELECTRIC START - TREATED
  • 20
    1623-821 SCREW,MACH-TSFH M8X1.25X14 CL10.9Z & Y
    SCREW,MACH-TSFH M8X1.25X14 CL10.9Z & Y
  • 21
    0645-694 PLATE, RETAINING - STARTER MOTOR
    PLATE, RETAINING - STARTER MOTOR
  • 22
    8408-621 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
  • 23
    8053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)
    WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)
