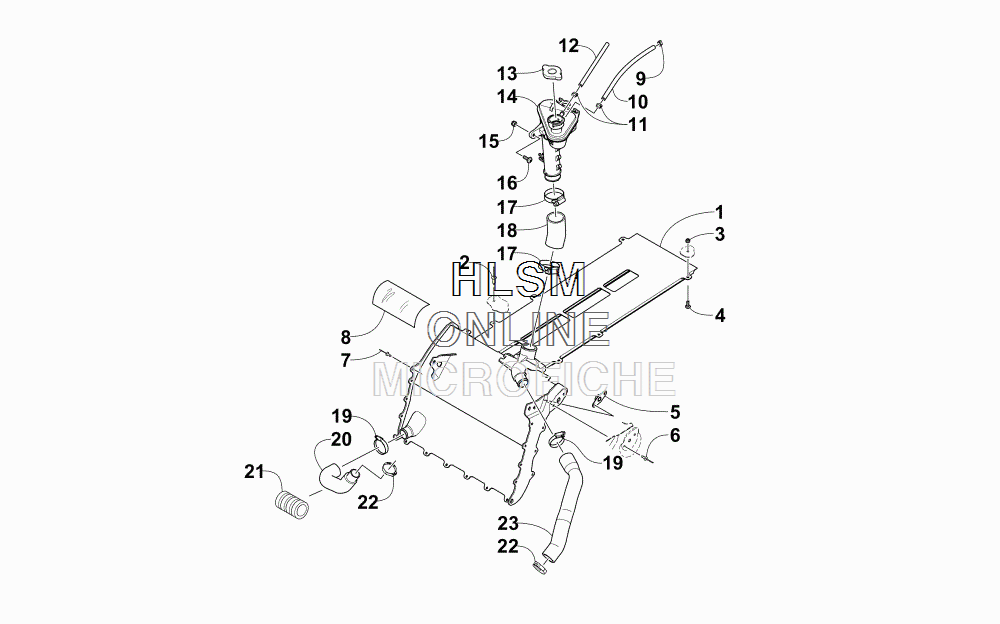

COOLING ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (GREEN) [S2015M8HLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-110 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 2
    8060-702 RIVET,BLIND-DH SS62 (BLACK)
    RIVET,BLIND-DH SS62 (BLACK)
  • 3
    8422-502 NUT, M5 X 1 NYL Z & Y
    NUT, M5 X 1 NYL Z & Y
  • 4
    8476-516 SCREW,MACH-TSTRH M5X0.8X16 Z & Y
    SCREW,MACH-TSTRH M5X0.8X16 Z & Y
  • 5
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    8060-708 RIVET,BLIND-DH SS66 (BLACK)
    RIVET,BLIND-DH SS66 (BLACK)
  • 7
    8060-706 RIVET,BLIND-DH SS64 (BLACK)
    RIVET,BLIND-DH SS64 (BLACK)
  • 8
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 9
    1623-619 CLAMP,H0SE-CRIMP-10.5
    CLAMP,H0SE-CRIMP-10.5
  • 10
    0610-538 HOSE, VENT - 25 (1054-152)
    HOSE, VENT - 25 (1054-152)
  • 11
    1623-655 CLAMP,HOSE-CRIMP-11.3
    CLAMP,HOSE-CRIMP-11.3
  • 12
    0610-692 HOSE, OIL/WATER - 25 FT
    HOSE, OIL/WATER - 25 FT
  • 12
    0610-693 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 13
    2606-284 CAP, MINI RADIATOR
    CAP, MINI RADIATOR
  • 14
    0613-135 TANK, COOLANT
    TANK, COOLANT
  • 15
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 16
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 17
    0423-317 CLAMP, HOSE - 32/50 (NORMA 962)
    CLAMP, HOSE - 32/50 (NORMA 962)
  • 18
    0610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
    HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
  • 19
    2623-088 CLAMP,HOSE-23/35
    CLAMP,HOSE-23/35
  • 20
    0610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 21
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 22
    1623-656 CLAMP,H0SE-CRIMP-36.1
    CLAMP,H0SE-CRIMP-36.1
  • 23
    0613-136 HOSE, COOLANT - HEAT EXCHANGER/ENGINE
    HOSE, COOLANT - HEAT EXCHANGER/ENGINE
