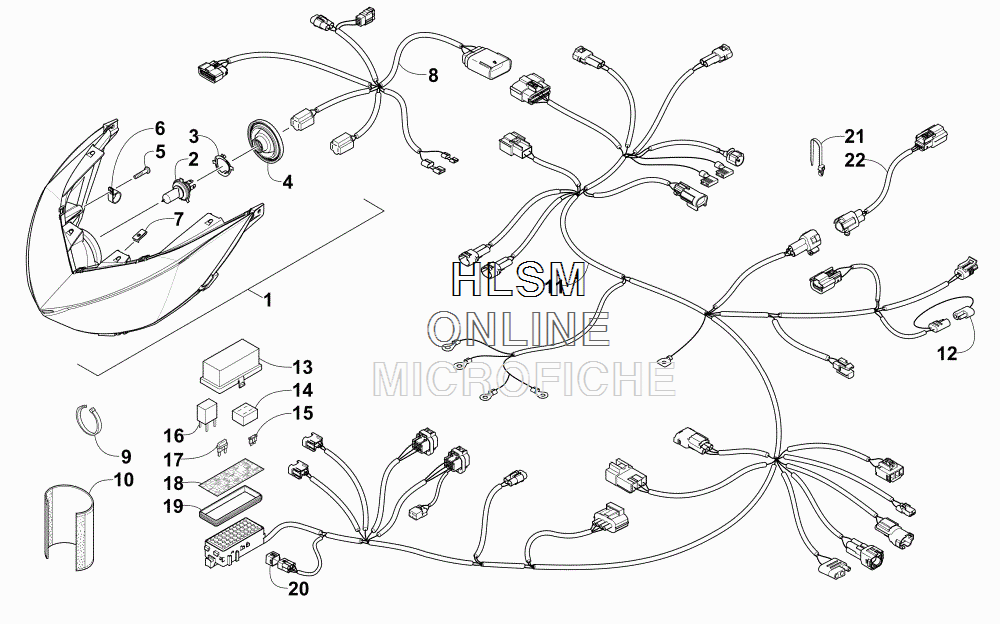

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat M 8000 SNO PRO LTD ES 153 (GREEN) [S2015M8HLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-899 HEADLIGHT ASSEMBLY (INC. 2-4)
    HEADLIGHT ASSEMBLY (INC. 2-4)
  • 2
    0109-724 ...BULB,QUARTZ HGN H4
    ...BULB,QUARTZ HGN H4
  • 3
    0409-097 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0609-919 ...BOOT,BULB
    ...BOOT,BULB
  • 5
    1623-915 SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B
    SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B
  • 6
    1623-675 CLAMP,CABLE,11/16 INSUL-1/4" MTG
    CLAMP,CABLE,11/16 INSUL-1/4" MTG
  • 7
    0423-031 NUT,SPEED M6 X 1.0 U-TYPE
    NUT,SPEED M6 X 1.0 U-TYPE
  • 8
    1686-638 HARNESS, HOOD
    HARNESS, HOOD
  • 9
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 9
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 9
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 10
    5706-618 WRAP, HARNESS
    WRAP, HARNESS
  • 11
    1686-724 HARNESS, MAIN (INC. 12-20)
    HARNESS, MAIN (INC. 12-20)
  • 12
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 13
    0430-085 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 14
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 15
    0430-068 ...FUSE - 7.5 AMP
    ...FUSE - 7.5 AMP
  • 15
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 15
    0430-098 ...FUSE, MINI - 20 AMP
    ...FUSE, MINI - 20 AMP
  • 16
    0430-033 ...RELAY (5-PIN) - 30 AMP
    ...RELAY (5-PIN) - 30 AMP
  • 17
    0430-034 ...DIODE, MINI-1A
    ...DIODE, MINI-1A
  • 18
    0621-493 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 19
    0430-086 ...SEAL,PDM (4X12)
    ...SEAL,PDM (4X12)
  • 20
    0430-097 ...COVER, DIAGNOSTICS CONNECTOR
    ...COVER, DIAGNOSTICS CONNECTOR
  • 21
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 22
    1686-641 HARNESS, EXTENSION - TAILLIGHT
    HARNESS, EXTENSION - TAILLIGHT
