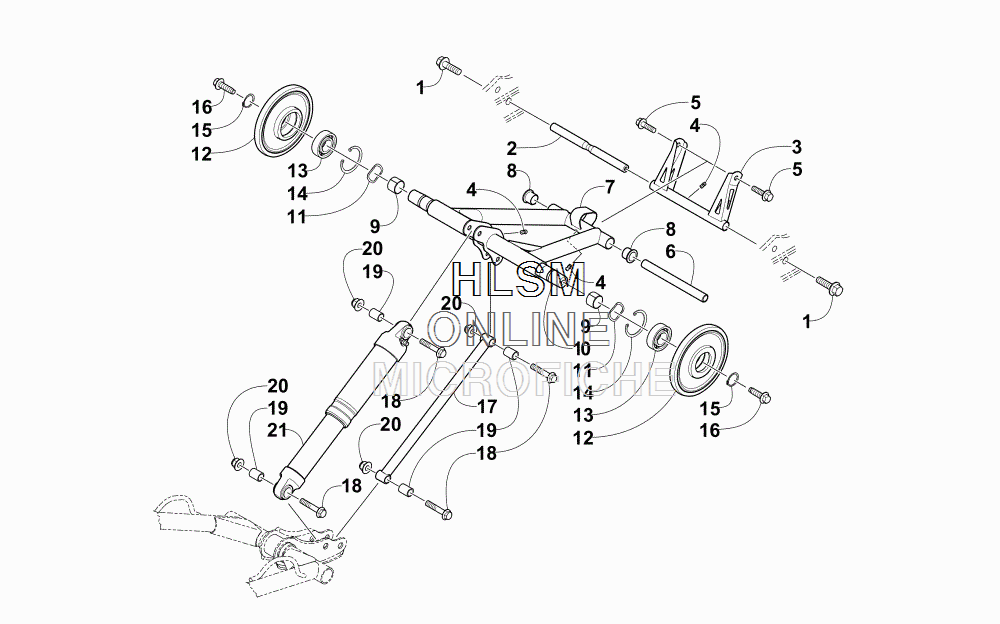

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (GREEN) [S2015M8HLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 2
    3604-857 AXLE
    AXLE
  • 3
    2704-422 ARM, REAR - (BLACK) (INC. ONE NO. 4)
    ARM, REAR - (BLACK) (INC. ONE NO. 4)
  • 4
    1623-010 ......FITTING,GREASE-1/4-28 UNF-SELF THREAD
    ......FITTING,GREASE-1/4-28 UNF-SELF THREAD
  • 5
    8413-831 SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353
    SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353
  • 6
    3604-855 AXLE
    AXLE
  • 7
    2704-420 ARM, IDLER - (BLACK) (INC. TWO NO. 4 AND 8-9)
    ARM, IDLER - (BLACK) (INC. TWO NO. 4 AND 8-9)
  • 8
    3604-028 ...BUSHING, FLARED -BRONZE .735" X .751 ID
    ...BUSHING, FLARED -BRONZE .735" X .751 ID
  • 9
    2604-852 ...BEARING, 16DU12
    ...BEARING, 16DU12
  • 10
    3604-854 AXLE, INNER CARRIAGE
    AXLE, INNER CARRIAGE
  • 11
    1623-692 WASHER, WAVE
    WASHER, WAVE
  • 12
    2604-699 WHEEL, IDLER (INC. 13-14)
    WHEEL, IDLER (INC. 13-14)
  • 13
    0107-598 ...BEARING,BALL-25MM
    ...BEARING,BALL-25MM
  • 14
    0123-798 ...RING INTERNAL RETAINING
    ...RING INTERNAL RETAINING
  • 15
    1623-690 SNAP RING,EXTL-.925 ID
    SNAP RING,EXTL-.925 ID
  • 16
    1623-836 SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPT
    SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPT
  • 17
    1704-724 LINK, REAR SHOCK - (BLACK)
    LINK, REAR SHOCK - (BLACK)
  • 18
    8413-845 SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)
    SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)
  • 19
    3604-846 SLEEVE,SHOCK EYELET-8MM ID
    SLEEVE,SHOCK EYELET-8MM ID
  • 20
    8437-804 NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
    NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
  • 21
    2704-567 SHOCK ABSORBER
    SHOCK ABSORBER
