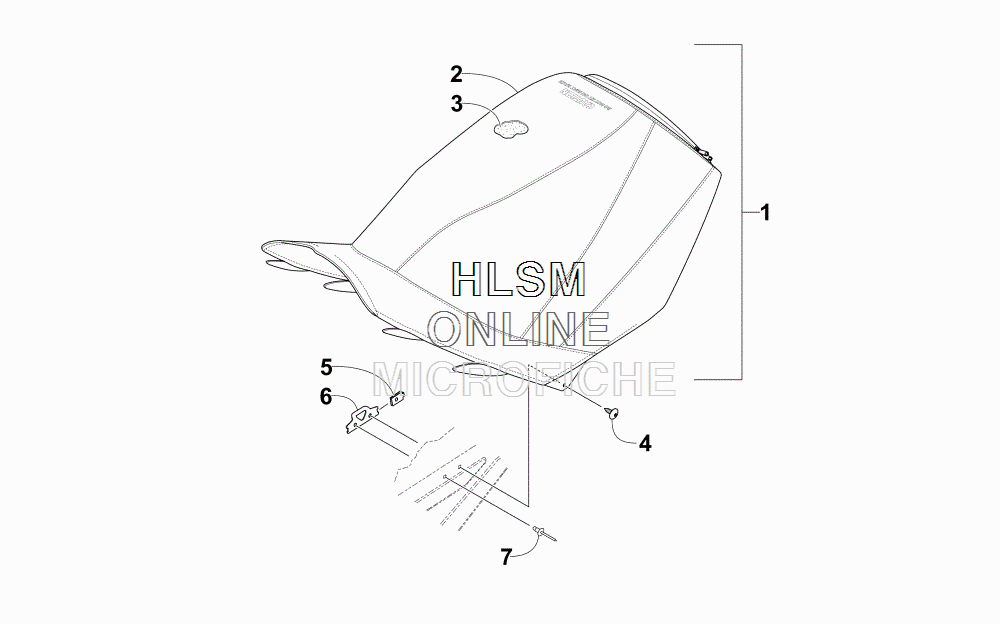

SEAT ASSEMBLY для Arctic Cat M 8000 HCR 153 (GREEN) [S2015M8HHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-647 COMPLETE SEAT ASSEMBLY - (BLACK) (INC. 2-3)
    COMPLETE SEAT ASSEMBLY - (BLACK) (INC. 2-3)
  • 2
    5706-648 ...COVER, SEAT
    ...COVER, SEAT
  • 3
    0717-213 ...FOAM, SEAT
    ...FOAM, SEAT
  • 4
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 5
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 6
    6606-704 PLATE,RETAINER-SEAT
    PLATE,RETAINER-SEAT
  • 7
    8060-702 RIVET,BLIND-DH SS62 (BLACK)
    RIVET,BLIND-DH SS62 (BLACK)
