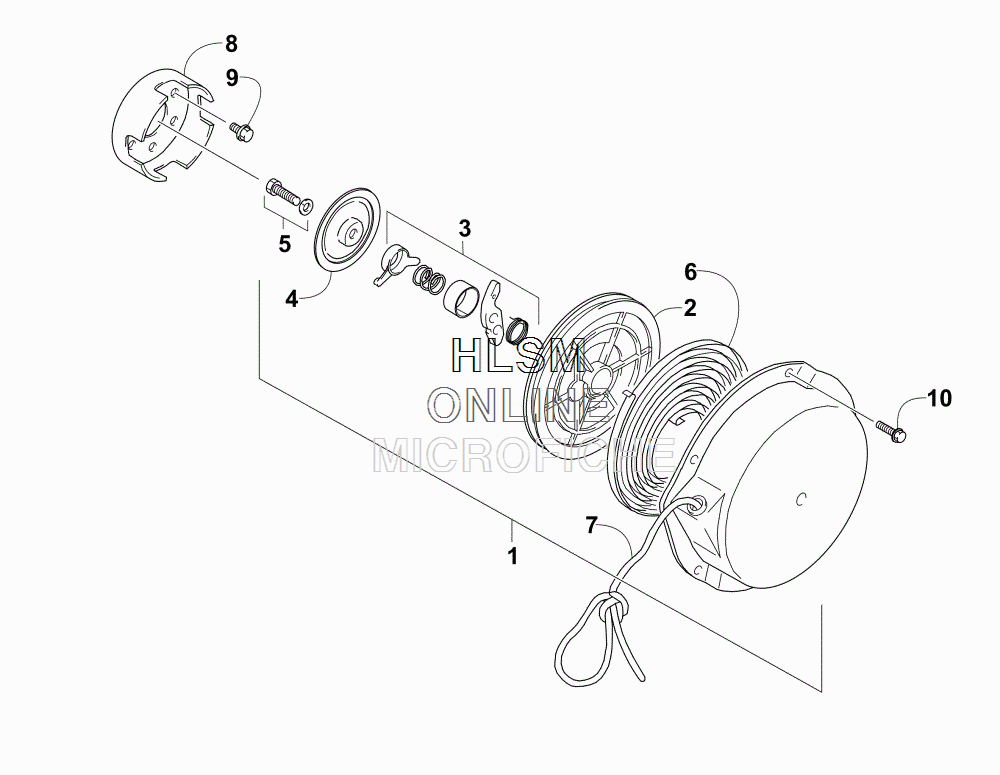

RECOIL STARTER для Arctic Cat M 8000 HCR 153 (GREEN) [S2015M8HHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-307 STARTER ASSEMBLY (INC. 2-7)
    STARTER ASSEMBLY (INC. 2-7)
  • 2
    3007-308 ...ROLLER, STARTER
    ...ROLLER, STARTER
  • 3
    3007-309 ...RATCHET SET
    ...RATCHET SET
  • 4
    3007-310 ...PLATE, FRICTION
    ...PLATE, FRICTION
  • 5
    3007-311 ...BOLT W/WASHER
    ...BOLT W/WASHER
  • 6
    3007-312 ...SPRING
    ...SPRING
  • 7
    3006-889 ...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)
    ...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)
  • 8
    3007-544 PULLEY, STARTER
    PULLEY, STARTER
  • 9
    3007-407 BOLT,GROUND
    BOLT,GROUND
  • 10
    3006-529 BOLT,6 X 20
    BOLT,6 X 20
