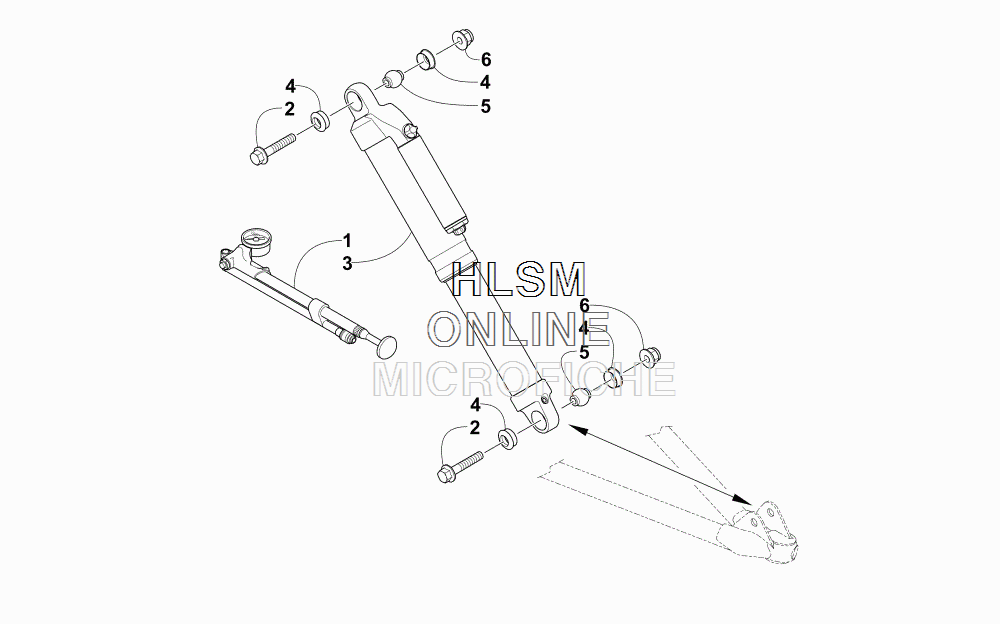

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat M 8000 HCR 153 (GREEN) [S2015M8HHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10641-257 PUMP,FOX FLOAT EVOL DUAL-GAUGE SHOCKPUMP,FOX FLOAT EVOL DUAL-GAUGE SHOCK
-
28413-850 SCREW,CAP-HFH M8X1.25X50 CL10.9 (SILVER)SCREW,CAP-HFH M8X1.25X50 CL10.9 (SILVER)
-
33703-378 SHOCK ABSORBERSHOCK ABSORBER
-
43603-260 BUSHING,SHOCK (BLACK)BUSHING,SHOCK (BLACK)
-
53603-261 SLEEVE,SHOCK EYELETSLEEVE,SHOCK EYELET
-
68437-804 NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
