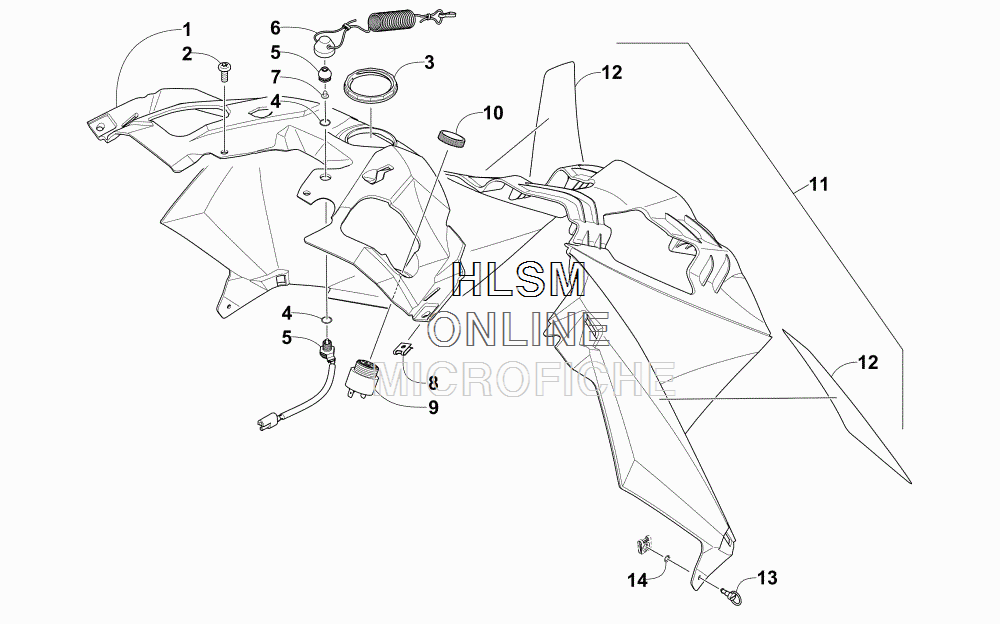

CONSOLE ASSEMBLY для Arctic Cat M 8000 HCR 153 (GREEN) [S2015M8HHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-188 CONSOLE, UPPER - (BLACK)
    CONSOLE, UPPER - (BLACK)
  • 2
    0423-396 SCREW,SELF TAP-TSPH M6-1.0X15
    SCREW,SELF TAP-TSPH M6-1.0X15
  • 3
    6606-390 NUT,RETAINING-CONSOLE
    NUT,RETAINING-CONSOLE
  • 4
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 5
    0709-071 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/ SCREW (INC. 7)
    ...TETHER CORD W/ SCREW (INC. 7)
  • 7
    0623-338 ...SCREW,SELF TAP-PNHD #4 X 3/16 TYPE AB
    ...SCREW,SELF TAP-PNHD #4 X 3/16 TYPE AB
  • 8
    1623-939 ......NUT,SPEED-#10 B "U" TYPE
    ......NUT,SPEED-#10 B "U" TYPE
  • 9
    0630-243 ALARM,REVERSE-DC ONLY (INC. 10)
    ALARM,REVERSE-DC ONLY (INC. 10)
  • 10
    0630-017 ...RING,RETAINING-REV ALARM
    ...RING,RETAINING-REV ALARM
  • 11
    3718-998 CONSOLE, LOWER - (BLACK) (INC. 12-13)
    CONSOLE, LOWER - (BLACK) (INC. 12-13)
  • 12
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 13
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 14
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 15
    2623-004 RETAINER,RING-SPLIT
    RETAINER,RING-SPLIT
