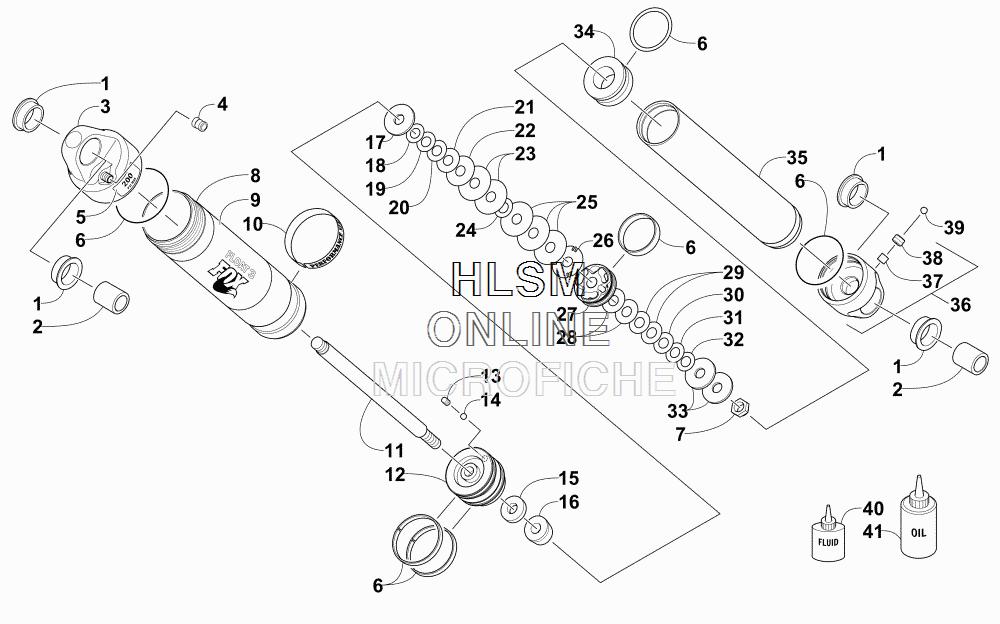

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-567 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    1604-222 BUSHING,REAR ARM SHOCK-.125" LIP
    BUSHING,REAR ARM SHOCK-.125" LIP
  • 2
    2604-223 SLEEVE
    SLEEVE
  • 3
    4604-006 END CAP, SHOCK
    END CAP, SHOCK
  • 4
    2603-327 CAP, AIR VALVE
    CAP, AIR VALVE
  • 5
    3603-419 DECAL,AIR PRESSURE 200PSI
    DECAL,AIR PRESSURE 200PSI
  • 6
    3603-293 KIT, SEAL/CAP REBUILD (INC. 7)
    KIT, SEAL/CAP REBUILD (INC. 7)
  • 7
    3603-018 ...NUT,LOCK,3/8-24THDX.562 FLATS
    ...NUT,LOCK,3/8-24THDX.562 FLATS
  • 8
    4604-009 BODY SHOCK, UPPER
    BODY SHOCK, UPPER
  • 9
    3603-369 DECAL, "FOX"
    DECAL, "FOX"
  • 10
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 11
    3603-364 ROD, SHOCK
    ROD, SHOCK
  • 12
    3603-291 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 13
    1603-940 SCREW-SET,8-32X.250
    SCREW-SET,8-32X.250
  • 14
    1604-315 BALL, BLEED
    BALL, BLEED
  • 15
    0603-386 BUMPER, INTERNAL - TOP OUT
    BUMPER, INTERNAL - TOP OUT
  • 16
    4604-008 SPACER,SHAFT-.500 ID X 1.100 OD X .500"
    SPACER,SHAFT-.500 ID X 1.100 OD X .500"
  • 17
    0603-540 WASHER, TOP OUT-1.125OD X .378 ID X.093
    WASHER, TOP OUT-1.125OD X .378 ID X.093
  • 18
    0603-331 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 19
    0603-334 VALVE, .800X.008 (3/8ID)
    VALVE, .800X.008 (3/8ID)
  • 20
    0603-337 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 21
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 22
    0603-346 VALVE, 1.250 X 0.008 (3/8 ID)
    VALVE, 1.250 X 0.008 (3/8 ID)
  • 23
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 24
    0603-878 VALVE, 0.700 X 0.012 IN.
    VALVE, 0.700 X 0.012 IN.
  • 25
    0603-348 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 26
    3603-344 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 27
    3603-397 PISTON, 3-PORT
    PISTON, 3-PORT
  • 28
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 29
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 30
    0603-880 VALVE, 0.900 X 0.012 IN.
    VALVE, 0.900 X 0.012 IN.
  • 31
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 32
    2603-045 VALVE,SHOCK- .700 DIA X .010
    VALVE,SHOCK- .700 DIA X .010
  • 33
    2604-966 WASHER,TOP OUT-.950OD X .378ID X .050TH
    WASHER,TOP OUT-.950OD X .378ID X .050TH
  • 34
    3603-023 PISTON, FLOATING W/O-RING
    PISTON, FLOATING W/O-RING
  • 35
    3604-999 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 36
    3603-332 END CAP, SHOCK (INC. 37-38)
    END CAP, SHOCK (INC. 37-38)
  • 37
    1604-428 ...PLUG, RUBBER - VALVE
    ...PLUG, RUBBER - VALVE
  • 38
    2603-338 ...SCREW,SET-3/8-24 X .25"
    ...SCREW,SET-3/8-24 X .25"
  • 39
    2603-337 BALL,AIR VALVE (.219 OD) - (FLOAT)
    BALL,AIR VALVE (.219 OD) - (FLOAT)
  • 40
    4639-012 FLOAT FLUID,FOX RACING SHOCK - 8 OZ
    FLOAT FLUID,FOX RACING SHOCK - 8 OZ
  • 41
    5639-530 SEMI-SYN SHOCK OIL-1 QUART
    SEMI-SYN SHOCK OIL-1 QUART
