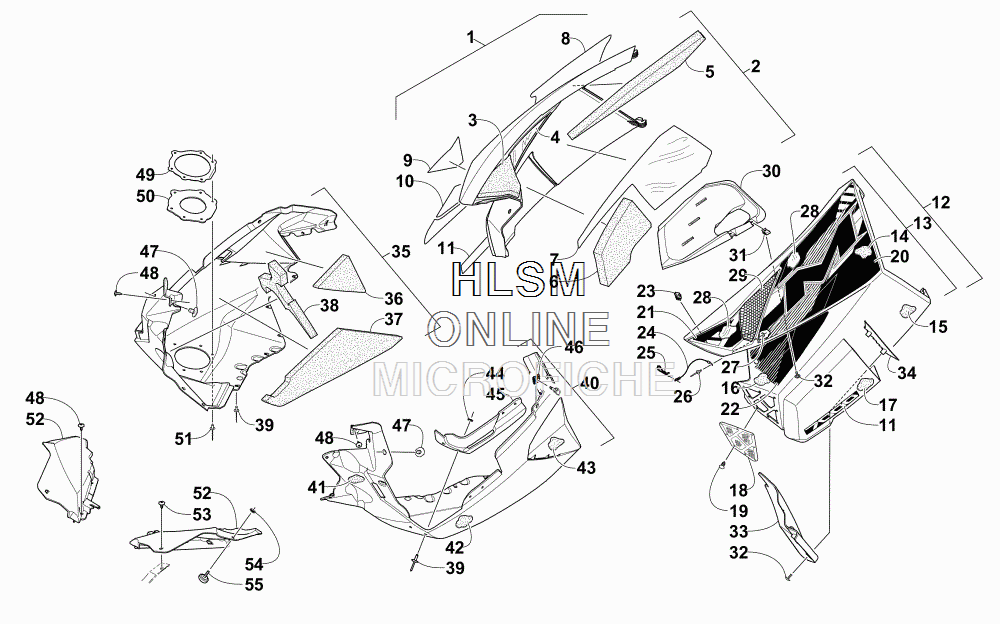

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-338 PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-10 AND ONE NO. 11)
    PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-10 AND ONE NO. 11)
  • 2
    3718-312 ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
    ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    6606-416 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 8
    1621-424 ...DECAL, SIDE PANEL - UPPER - RIGHT
    ...DECAL, SIDE PANEL - UPPER - RIGHT
  • 9
    1621-430 ...DECAL, SIDE PANEL - MID - RIGHT
    ...DECAL, SIDE PANEL - MID - RIGHT
  • 10
    1621-428 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
  • 11
    1621-426 ...DECAL, "7000"
    ...DECAL, "7000"
  • 12
    4718-453 PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. ONE NO. 11 AND 13-22)
    PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. ONE NO. 11 AND 13-22)
  • 13
    4718-101 ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-19)
    ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-19)
  • 14
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 15
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 16
    0617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
    ......FOAM, SIDE PANEL - CENTER FRONT - LEFT
  • 17
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 18
    2602-704 ......SCREEN, VENT
    ......SCREEN, VENT
  • 19
    0623-269 ......CLIP, RETAINER
    ......CLIP, RETAINER
  • 20
    1621-425 ...DECAL, SIDE PANEL - UPPER - LEFT
    ...DECAL, SIDE PANEL - UPPER - LEFT
  • 21
    1621-431 ...DECAL, SIDE PANEL - MID - LEFT
    ...DECAL, SIDE PANEL - MID - LEFT
  • 22
    1621-429 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
    ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
  • 23
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    0607-447 CABLE,5"-HAIRPIN
    CABLE,5"-HAIRPIN
  • 25
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 26
    8060-486 RIVET, BLIND-DH SS54 ZINC
    RIVET, BLIND-DH SS54 ZINC
  • 27
    8050-127 WASHER,FLAT- #8 X .375 X .049 Z & Y
    WASHER,FLAT- #8 X .375 X .049 Z & Y
  • 28
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 29
    5706-531 SCREEN, INTAKE
    SCREEN, INTAKE
  • 30
    1702-369 DUCT,AIR-CLUTCH W/FOIL
    DUCT,AIR-CLUTCH W/FOIL
  • 31
    1623-030 NUT,SPEED-#10B U TYPE
    NUT,SPEED-#10B U TYPE
  • 32
    0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
    SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
  • 33
    2602-711 DEFLECTOR, AIR
    DEFLECTOR, AIR
  • 34
    2602-703 RETAINER, AIR DEFLECTOR
    RETAINER, AIR DEFLECTOR
  • 35
    3718-788 PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 36-38)
    PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 36-38)
  • 36
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 37
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 38
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 39
    8061-708 RIVET
    RIVET
  • 40
    3718-789 PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 41-45)
    PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 41-45)
  • 41
    0617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT
    ...FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 42
    0617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT
    ...FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 43
    0617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT
    ...FOAM, SKID PLATE - UPPER REAR - LEFT
  • 44
    0123-802 ...WASHER,FLAT .194X.50X.048
    ...WASHER,FLAT .194X.50X.048
  • 45
    6606-613 ...PANEL, REINFORCEMENT
    ...PANEL, REINFORCEMENT
  • 46
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 47
    6606-592 PIN, RETAINING
    PIN, RETAINING
  • 48
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 49
    2612-685 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 50
    2612-964 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 51
    8061-508 RIVET,BLIND-LF SS56 BLACK
    RIVET,BLIND-LF SS56 BLACK
  • 52
    6606-342 FASCIA, FRONT - RIGHT - (BLACK)
    FASCIA, FRONT - RIGHT - (BLACK)
  • 52
    6606-579 FASCIA, FRONT - LEFT - (BLACK)
    FASCIA, FRONT - LEFT - (BLACK)
  • 53
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLK
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 54
    2623-001 NUT, PUSH
    NUT, PUSH
  • 55
    1623-999 SCREW,1" RND KNOB-M5X0.8X20MM LG
    SCREW,1" RND KNOB-M5X0.8X20MM LG
