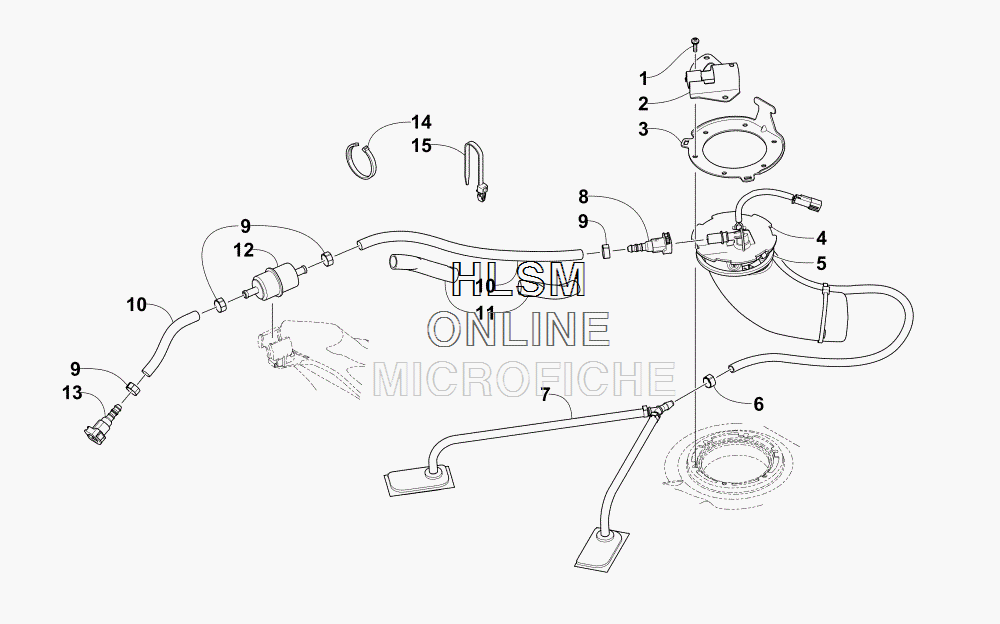

FUEL PUMP ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS
    SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS
  • 2
    2670-467 PROTECTOR, FUEL PUMP
    PROTECTOR, FUEL PUMP
  • 3
    2670-395 PLATE, RETAINING - FUEL PUMP
    PLATE, RETAINING - FUEL PUMP
  • 4
    2670-361 PUMP, FUEL - ASSEMBLY
    PUMP, FUEL - ASSEMBLY
  • 5
    0470-838 SEAL,FUEL-PUMP
    SEAL,FUEL-PUMP
  • 6
    1623-655 CLAMP,HOSE-CRIMP-11.3
    CLAMP,HOSE-CRIMP-11.3
  • 7
    2670-278 PICKUP, FUEL - ASSEMBLY
    PICKUP, FUEL - ASSEMBLY
  • 8
    2670-141 FITTING,QUICK CONNECTOR
    FITTING,QUICK CONNECTOR
  • 9
    0610-563 CLAMP, HOSE-13.2MM-15.7MM
    CLAMP, HOSE-13.2MM-15.7MM
  • 10
    0610-971 HOSE, FUEL - IN TANK - 10 FT
    HOSE, FUEL - IN TANK - 10 FT
  • 11
    2670-441 TUBE, HEAT SHRINK
    TUBE, HEAT SHRINK
  • 12
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 13
    2670-341 FITTING,QUICK CONNECT-STRAIGHT
    FITTING,QUICK CONNECT-STRAIGHT
  • 14
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 14
    0623-751 TIE, CABLE - REUSABLE
    TIE, CABLE - REUSABLE
  • 15
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
