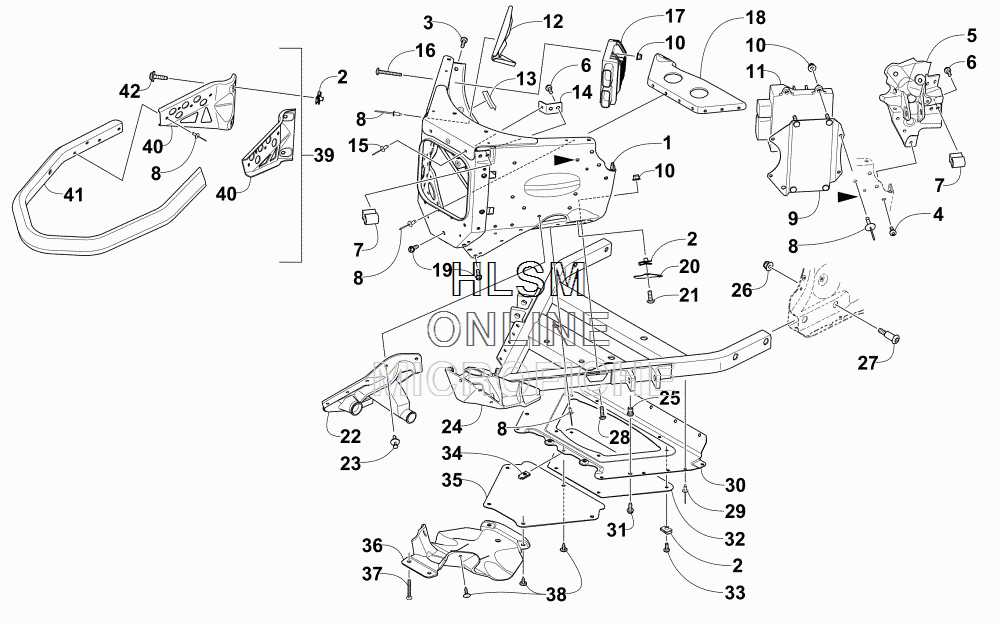

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2707-485 PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)
    PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)
  • 2
    0423-577 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 3
    1623-683 ...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B
    ...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B
  • 4
    0423-538 ...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B
    ...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B
  • 5
    2707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)
    ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)
  • 5
    2707-305 ..BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)
    ..BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)
  • 6
    8413-617 SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353
    SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353
  • 7
    1607-233 BRACKET, MOUNTING - UPPER A-ARM
    BRACKET, MOUNTING - UPPER A-ARM
  • 8
    8060-706 RIVET,BLIND-DH SS64 (BLACK)
    RIVET,BLIND-DH SS64 (BLACK)
  • 9
    0745-391 BRACKET, MOUNTING - ECM
    BRACKET, MOUNTING - ECM
  • 10
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 11
    0730-214 ECM,PROGRAMMED-Z3-7T/3.0P
    ECM,PROGRAMMED-Z3-7T/3.0P
  • 12
    1607-126 BRACKET, STEERING STOP
    BRACKET, STEERING STOP
  • 13
    0706-371 TRIM - 3 FT
    TRIM - 3 FT
  • 14
    1607-561 GUSSET, A-ARM MOUNTING BRACKET
    GUSSET, A-ARM MOUNTING BRACKET
  • 15
    1623-241 RIVET,3/16 HUCK-M6
    RIVET,3/16 HUCK-M6
  • 16
    8477-625 SCREW,MACH-TSTRH M6X1.0X25 Z & (BLACK)
    SCREW,MACH-TSTRH M6X1.0X25 Z & (BLACK)
  • 17
    0824-072 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 18
    1607-127 BRACKET, REINFORCEMENT
    BRACKET, REINFORCEMENT
  • 19
    1623-959 SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)
    SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)
  • 20
    1707-568 PANEL, CLOSE-OFF
    PANEL, CLOSE-OFF
  • 21
    8471-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)
    SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)
  • 22
    1605-028 BOOT, STEERING - RIGHT
    BOOT, STEERING - RIGHT
  • 22
    1605-029 BOOT, STEERING - LEFT
    BOOT, STEERING - LEFT
  • 23
    0623-362 RIVET,PLASTIC-REINSTALLABLE
    RIVET,PLASTIC-REINSTALLABLE
  • 24
    1707-862 FRAME, FRONT - LOWER - (BLACK)
    FRAME, FRONT - LOWER - (BLACK)
  • 25
    1623-797 INSERT,M5X0.8-AL SERIES ALS4-580-3.3
    INSERT,M5X0.8-AL SERIES ALS4-580-3.3
  • 26
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 27
    1623-817 SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16
    SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16
  • 28
    8468-620 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)
  • 29
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 30
    1607-217 BELLY PAN - CENTER
    BELLY PAN - CENTER
  • 31
    8476-520 SCREW,MACH-TSTRH M5X0.8X20 Z & Y
    SCREW,MACH-TSTRH M5X0.8X20 Z & Y
  • 32
    1607-218 COVER, ACCESS
    COVER, ACCESS
  • 33
    8468-617 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353
    SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353
  • 34
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 35
    1607-063 PANEL, ACCESS
    PANEL, ACCESS
  • 36
    6606-614 BELLY PAN - FRONT
    BELLY PAN - FRONT
  • 37
    1623-929 SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B
    SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B
  • 38
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 39
    1707-596 BUMPER, FRONT - ASSEMBLY - (BLACK) (INC. EIGHT NO. 8 AND 40-41)
    BUMPER, FRONT - ASSEMBLY - (BLACK) (INC. EIGHT NO. 8 AND 40-41)
  • 40
    1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)
    ...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)
  • 40
    1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)
    ...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)
  • 41
    1707-578 ...BUMPER, FRONT - (BLACK)
    ...BUMPER, FRONT - (BLACK)
  • 42
    0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)
    SCREW,FUEL TANK MOUNT (M6X18 DP)
