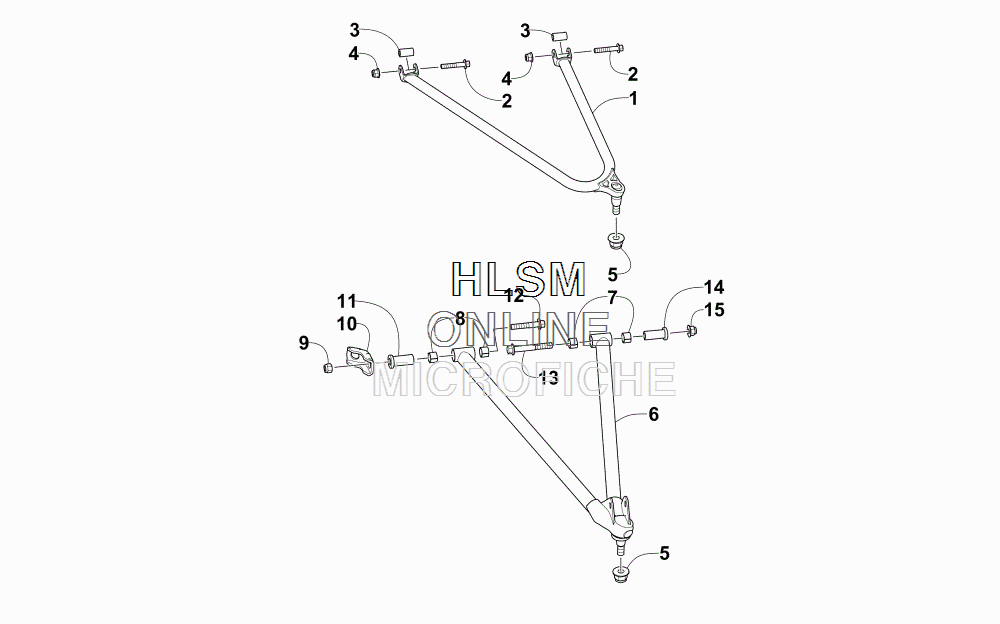

A-ARM ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-150 A-ARM, UPPER - RIGHT - (BLACK)
    A-ARM, UPPER - RIGHT - (BLACK)
  • 1
    3703-151 A-ARM, UPPER - LEFT - (BLACK)
    A-ARM, UPPER - LEFT - (BLACK)
  • 2
    8413-645 SCREW,CAP-HFH M6X1.0X45 CL10.9 (SILVER)
    SCREW,CAP-HFH M6X1.0X45 CL10.9 (SILVER)
  • 3
    3603-258 AXLE
    AXLE
  • 4
    8437-604 NUT,HEX FLG-NYL LOCK M6X1.0 CL10 (SILVER)
    NUT,HEX FLG-NYL LOCK M6X1.0 CL10 (SILVER)
  • 5
    8427-202 NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z & Y
  • 6
    3703-152 A-ARM, LOWER - RIGHT - (BLACK) (INC. 7-8)
    A-ARM, LOWER - RIGHT - (BLACK) (INC. 7-8)
  • 6
    3703-153 A-ARM, LOWER - LEFT - (BLACK) (INC. 7-8)
    A-ARM, LOWER - LEFT - (BLACK) (INC. 7-8)
  • 7
    1603-895 ...BEARING, 10DU10-FRONT SUSPENSION
    ...BEARING, 10DU10-FRONT SUSPENSION
  • 8
    2603-911 ...BEARING,SPLIT-18 X 20 X 15
    ...BEARING,SPLIT-18 X 20 X 15
  • 9
    1623-965 NUT,HEX-THK NYL M12X1.25 CL8 Z & Y(DIN)
    NUT,HEX-THK NYL M12X1.25 CL8 Z & Y(DIN)
  • 10
    2603-909 BRACE, LOWER A-ARM - FRONT
    BRACE, LOWER A-ARM - FRONT
  • 11
    2603-916 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 12
    1623-953 SCREW,CAP-HFH M12X1.25X76 CL 10.9 MZ
    SCREW,CAP-HFH M12X1.25X76 CL 10.9 MZ
  • 13
    8409-075 SCREW,CAP-HFH M10X1.25X75 CL10.9 Z & Y
    SCREW,CAP-HFH M10X1.25X75 CL10.9 Z & Y
  • 14
    3603-259 AXLE, LOWER A-ARM - REAR
    AXLE, LOWER A-ARM - REAR
  • 15
    8427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
