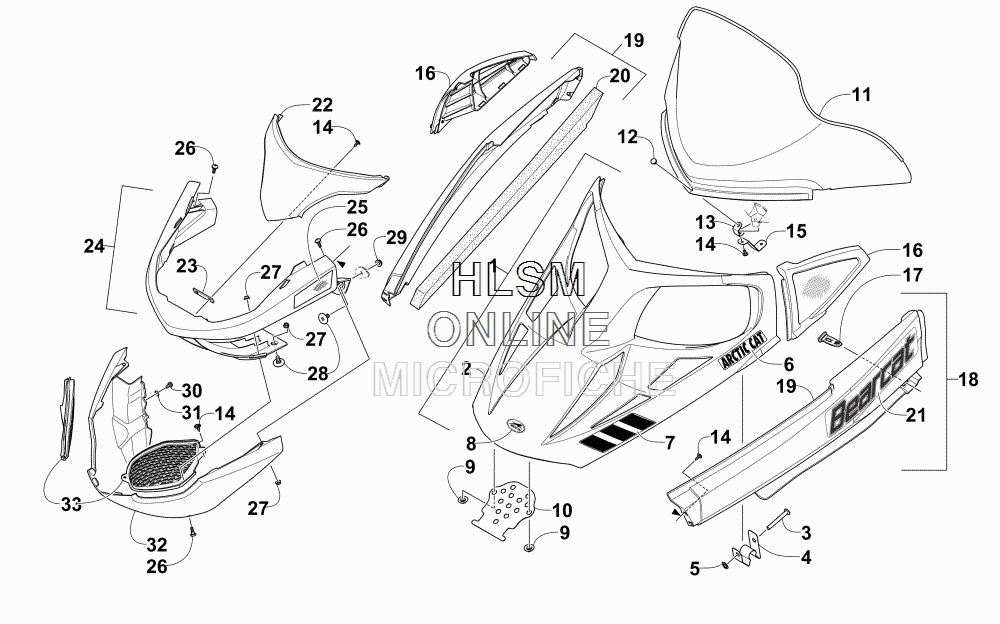

N- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-112 HOOD W/DECALS - WHITE (INC. 2-8)
    HOOD W/DECALS - WHITE (INC. 2-8)
  • 2
    7800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)
    ...HOOD W/O DECALS - WHITE (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    0621-572 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 7
    1621-246 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 7
    1621-247 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 8
    9611-751 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 9
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 10
    5606-042 BRACKET, HINGE
    BRACKET, HINGE
  • 11
    5606-962 WINDSHIELD,HIGH-TINT
    WINDSHIELD,HIGH-TINT
  • 12
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 13
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 14
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 15
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 16
    5606-940 BEZEL, INTAKE - RIGHT - WHITE
    BEZEL, INTAKE - RIGHT - WHITE
  • 16
    5606-941 BEZEL, INTAKE - LEFT - WHITE
    BEZEL, INTAKE - LEFT - WHITE
  • 17
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 18
    4718-140 SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 19-20 AND ONE NO. 21)
    SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 19-20 AND ONE NO. 21)
  • 19
    3718-834 ...SPAR, FRONT W/O DECALS - RIGHT - BLUE (INC. 20)
    ...SPAR, FRONT W/O DECALS - RIGHT - BLUE (INC. 20)
  • 20
    0617-656 ......FOAM, FRONT SPAR - RIGHT
    ......FOAM, FRONT SPAR - RIGHT
  • 18
    4718-141 SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 19-20 AND ONE NO. 21)
    SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 19-20 AND ONE NO. 21)
  • 19
    3718-835 ...SPAR, FRONT W/O DECALS - LEFT - BLUE (INC. 20)
    ...SPAR, FRONT W/O DECALS - LEFT - BLUE (INC. 20)
  • 20
    0617-657 ......FOAM, FRONT SPAR - LEFT
    ......FOAM, FRONT SPAR - LEFT
  • 21
    1621-241 ...DECAL, FRONT SPAR
    ...DECAL, FRONT SPAR
  • 22
    5606-991 FASCIA, BUMPER - UPPER - WHITE
    FASCIA, BUMPER - UPPER - WHITE
  • 23
    5606-953 SPACER
    SPACER
  • 24
    3718-274 BUMPER, FRONT - BLUE (INC. 25)
    BUMPER, FRONT - BLUE (INC. 25)
  • 25
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 25
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 26
    0423-355 SCREW, SHOULDER-M6-1.0 X 18-BLK
    SCREW, SHOULDER-M6-1.0 X 18-BLK
  • 27
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 28
    1623-775 SCREW,SHOULDER TSTRH M6X1.0X25 Z & Y
    SCREW,SHOULDER TSTRH M6X1.0X25 Z & Y
  • 29
    8424-602 NUT,HEX-FLG M6X1.0 CL8 Z & Y
    NUT,HEX-FLG M6X1.0 CL8 Z & Y
  • 30
    0623-966 SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB)
    SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB)
  • 31
    8053-242 WASHER,LOCK-5/16 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-5/16 EXT TOOTH TYP A Z & Y
  • 32
    6606-630 FASCIA, BUMPER - LOWER - BLUE
    FASCIA, BUMPER - LOWER - BLUE
  • 33
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 33
    4606-605 VENT,BUMPER-LH-MOLD BLK
    VENT,BUMPER-LH-MOLD BLK
