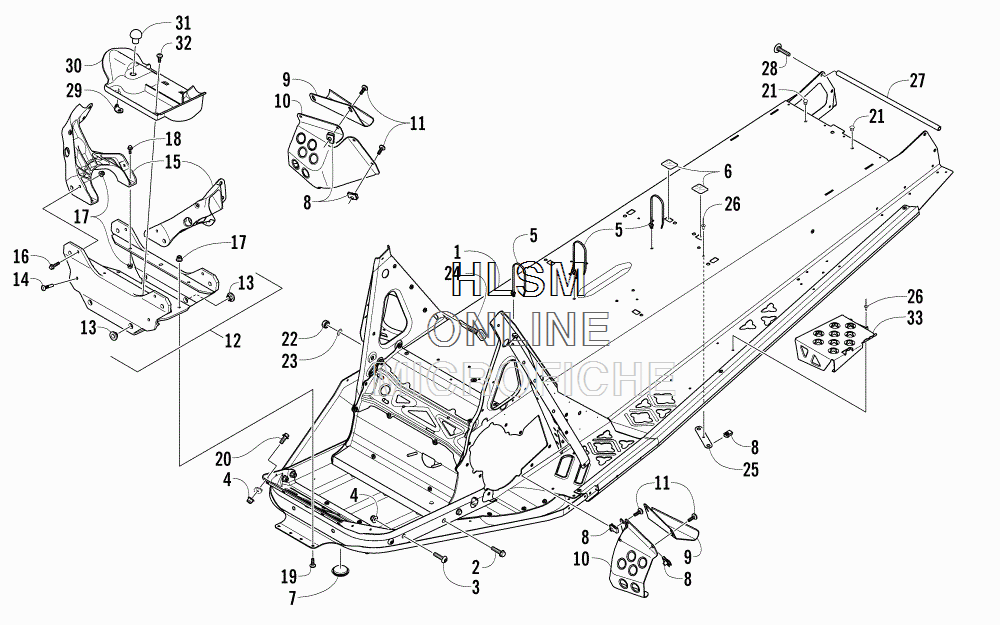

CHASSIS ASSEMBLY для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-310 CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
    CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
  • 2
    1623-428 SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y
    SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z & Y
  • 3
    8476-835 SCREW,MACH-TSTRH M8X1.25X35 Z & Y
    SCREW,MACH-TSTRH M8X1.25X35 Z & Y
  • 4
    8427-802 ...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    ...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 5
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
  • 6
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 7
    1623-625 PLUG
    PLUG
  • 8
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    3606-920 BRACKET, TOE HOOK - RIGHT
    BRACKET, TOE HOOK - RIGHT
  • 9
    3606-921 BRACKET, TOE HOOK - LEFT
    BRACKET, TOE HOOK - LEFT
  • 10
    3606-710 SHIELD, TOE - RIGHT
    SHIELD, TOE - RIGHT
  • 10
    3606-711 SHIELD, TOE - LEFT
    SHIELD, TOE - LEFT
  • 11
    8471-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & BLK
    SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & BLK
  • 12
    1707-340 BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)
    BRKT,FRT SUSP MTG-W/BUSHINGS (INC. 13-14)
  • 13
    0605-763 ...BUSHING
    ...BUSHING
  • 14
    1623-443 BOLT, RIBBED NECK M6 X 35 Z & Y
    BOLT, RIBBED NECK M6 X 35 Z & Y
  • 15
    0607-806 FRAME, MOUNTING - SHOCK - RIGHT
    FRAME, MOUNTING - SHOCK - RIGHT
  • 15
    0607-807 FRAME, MOUNTING - SHOCK - LEFT
    FRAME, MOUNTING - SHOCK - LEFT
  • 16
    8408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
  • 17
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 18
    8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 19
    8476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & Y
    SCREW,MACH-TSTRH M6X1.0X20 Z & Y
  • 20
    8408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 21
    1623-795 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 23
    8053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
  • 24
    4606-454 STRAP, HOLD-DOWN - RIGHT
    STRAP, HOLD-DOWN - RIGHT
  • 24
    4606-455 STRAP, HOLD-DOWN - LEFT
    STRAP, HOLD-DOWN - LEFT
  • 25
    5606-126 PLATE, BACKING
    PLATE, BACKING
  • 26
    8060-686 RIVET
    RIVET
  • 27
    3604-540 BRACE, TUNNEL
    BRACE, TUNNEL
  • 28
    1623-813 SCREW,SHOULDER-M8X1.25X23 CL8.8 W/ 2353
    SCREW,SHOULDER-M8X1.25X23 CL8.8 W/ 2353
  • 29
    4606-770 BRACKET, RETAINING
    BRACKET, RETAINING
  • 30
    5606-318 CLOSE-OFF, FRONT END
    CLOSE-OFF, FRONT END
  • 31
    0612-111 BUMPER, MOLDED - RUBBER
    BUMPER, MOLDED - RUBBER
  • 32
    0423-557 SCREW, SHOULDER W/LOCTITE
    SCREW, SHOULDER W/LOCTITE
  • 33
    5606-580 FOOTREST, PASSENGER - RIGHT
    FOOTREST, PASSENGER - RIGHT
  • 33
    5606-581 FOOTREST, PASSENGER - LEFT
    FOOTREST, PASSENGER - LEFT
