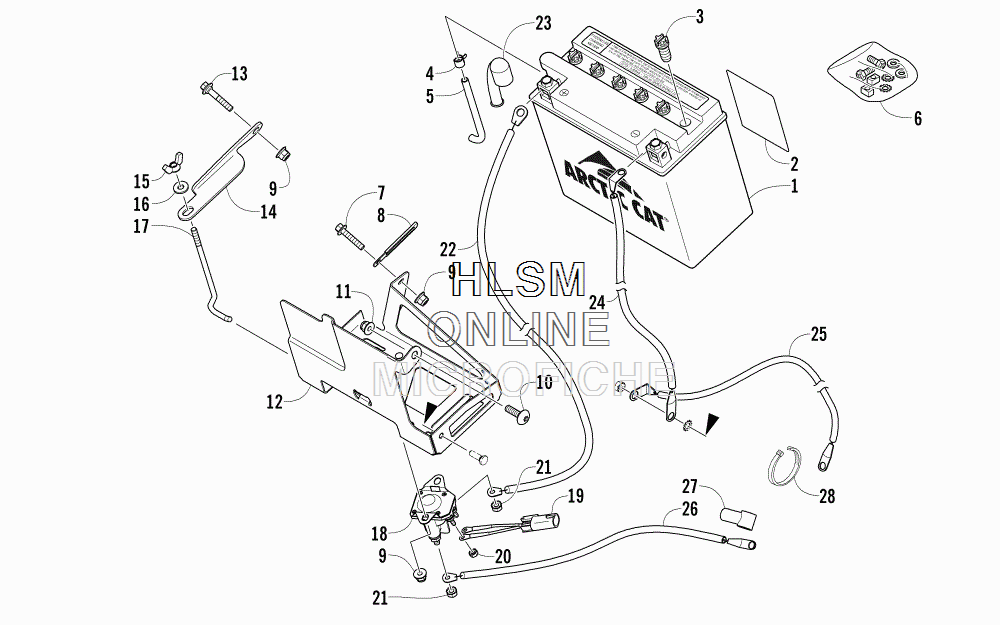

BATTERY AND TRAY ASSEMBLY для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-047 BATTERY PACKAGE (0645-170) (INC. 2-6)
    BATTERY PACKAGE (0645-170) (INC. 2-6)
  • 2
    0645-430 ...DECAL, WARNING
    ...DECAL, WARNING
  • 3
    0645-045 ...CAP, BATTERY
    ...CAP, BATTERY
  • 4
    0645-152 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 5
    0645-263 ...HOSE, BATTERY
    ...HOSE, BATTERY
  • 6
    0445-082 ...KIT, HARDWARE
    ...KIT, HARDWARE
  • 7
    8408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
  • 8
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 9
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 10
    8476-816 SCREW,MACH-TSTRH M8X1.25X16 Z & Y
    SCREW,MACH-TSTRH M8X1.25X16 Z & Y
  • 11
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 12
    0745-315 TRAY, BATTERY - PAINTED BLACK
    TRAY, BATTERY - PAINTED BLACK
  • 13
    1623-725 SCREW,SHOULDER-HFH M6X1.00X35 CL8.8Z & Y
    SCREW,SHOULDER-HFH M6X1.00X35 CL8.8Z & Y
  • 14
    0745-318 BRACKET, HOLD-DOWN - BATTERY
    BRACKET, HOLD-DOWN - BATTERY
  • 15
    0423-716 WINGNUT,NYLOC-M6X1.0
    WINGNUT,NYLOC-M6X1.0
  • 16
    8050-217 WASHER,FLAT- 1/4 X .625 X .065 Z & Y
    WASHER,FLAT- 1/4 X .625 X .065 Z & Y
  • 17
    0745-329 ROD, HOLD-DOWN - BATTERY
    ROD, HOLD-DOWN - BATTERY
  • 18
    0645-673 SOLENOID, STARTER RELAY
    SOLENOID, STARTER RELAY
  • 19
    1686-708 HARNESS, ADAPTER - SOLENOID
    HARNESS, ADAPTER - SOLENOID
  • 20
    0624-524 NUT,HEX,8-32 W/STAR WASHER SS
    NUT,HEX,8-32 W/STAR WASHER SS
  • 21
    0623-877 NUT, HEX 1/4-20 Z & Y - SEMS
    NUT, HEX 1/4-20 Z & Y - SEMS
  • 22
    0645-587 CABLE, BATTERY/SOLENOID (INC. 23)
    CABLE, BATTERY/SOLENOID (INC. 23)
  • 23
    0645-521 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 24
    0645-586 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 25
    0645-593 CABLE, STARTER-TO-GROUND
    CABLE, STARTER-TO-GROUND
  • 26
    0645-592 CABLE, SOLENOID/STARTER (INC. 27)
    CABLE, SOLENOID/STARTER (INC. 27)
  • 27
    0645-327 ...BOOT, TERMINAL - SOLENOID
    ...BOOT, TERMINAL - SOLENOID
  • 28
    0123-788 TIE,CABLE-8.5/7.5/7.4
    TIE,CABLE-8.5/7.5/7.4
  • 28
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 28
    0623-144 TIE, CABLE-17.5 LONG
    TIE, CABLE-17.5 LONG
