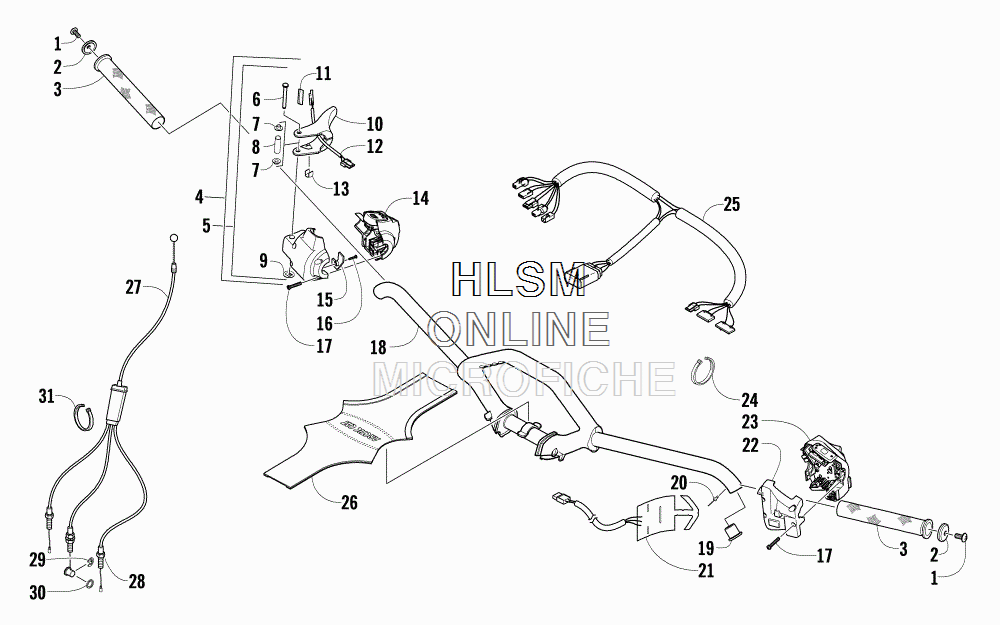

HANDLEBAR AND CONTROLS для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1623-618 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    1623-754 WASHER, BACKING
    WASHER, BACKING
  • 3
    4606-945 GRIP
    GRIP
  • 4
    0609-882 CONTROL, THROTTLE - RIGHT HAND - REAR (34 MM) (INC. 5-10)
    CONTROL, THROTTLE - RIGHT HAND - REAR (34 MM) (INC. 5-10)
  • 5
    0609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
    ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
  • 9
    0123-766 ......NUT, PUSH (INCLUDED IN KIT)
    ......NUT, PUSH (INCLUDED IN KIT)
  • 10
    0609-795 ...LEVER, THROTTLE
    ...LEVER, THROTTLE
  • 11
    0617-248 PAD, INSULATOR - THUMB WARMER
    PAD, INSULATOR - THUMB WARMER
  • 12
    0609-827 ELEMENT, THUMB WARMER - HI/LO (15 V)
    ELEMENT, THUMB WARMER - HI/LO (15 V)
  • 13
    0609-595 CLIP, RETAINING
    CLIP, RETAINING
  • 14
    0609-880 CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
    CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
  • 15
    0609-792 COVER, CONNECTOR
    COVER, CONNECTOR
  • 16
    0609-793 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0609-791 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    1705-229 HANDLEBAR W/INSERTS-ASSY (INC. 19-20)
    HANDLEBAR W/INSERTS-ASSY (INC. 19-20)
  • 19
    0605-945 ...INSERT, HANDLEBAR
    ...INSERT, HANDLEBAR
  • 20
    8060-682 ...RIVET
    ...RIVET
  • 21
    0609-838 ELEMENT, HANDWARMER - RIGHT
    ELEMENT, HANDWARMER - RIGHT
  • 21
    0609-839 ELEMENT, HANDWARMER - LEFT
    ELEMENT, HANDWARMER - LEFT
  • 22
    0609-883 CONTROL, LEFT HAND - REAR
    CONTROL, LEFT HAND - REAR
  • 23
    0609-929 CONTROL, LEFT HAND W/O PPT - FRONT
    CONTROL, LEFT HAND W/O PPT - FRONT
  • 24
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 25
    1686-537 HARNESS, HANDLEBAR
    HARNESS, HANDLEBAR
  • 26
    1705-285 WRAP, HANDLEBAR
    WRAP, HANDLEBAR
  • 27
    0687-216 CABLE, THROTTLE (INC. 28)
    CABLE, THROTTLE (INC. 28)
  • 28
    0623-464 ...NUT, JAM
    ...NUT, JAM
  • 29
    0124-057 E-RING
    E-RING
  • 30
    0124-056 WASHER
    WASHER
  • 31
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
