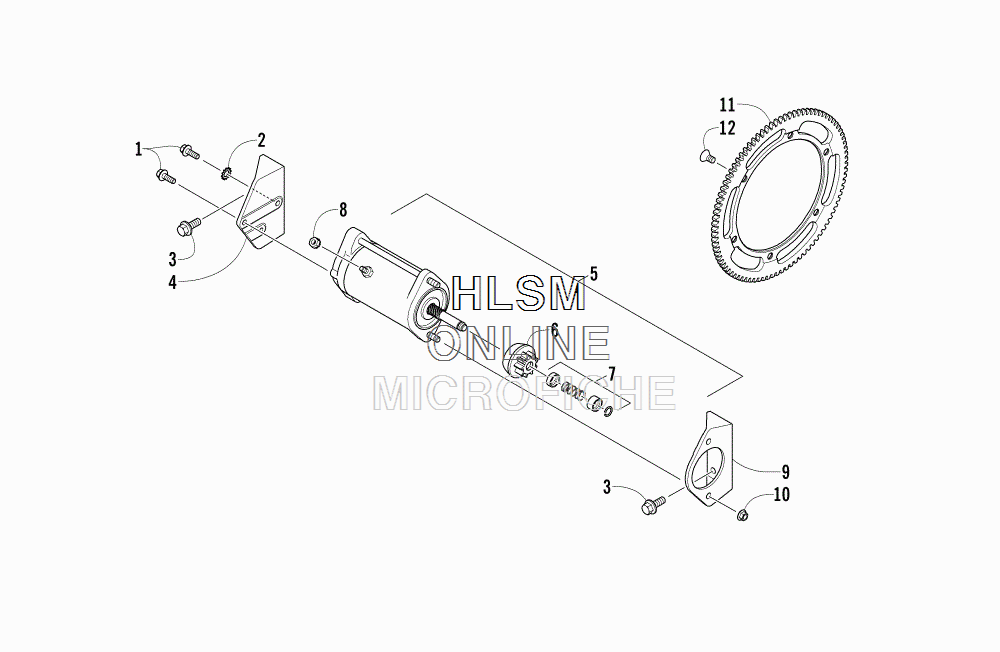

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-621 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
  • 2
    8053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
  • 3
    1623-566 SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
    SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
  • 4
    0645-728 BRACKET, MOUNTING - RIGHT
    BRACKET, MOUNTING - RIGHT
  • 5
    0745-392 MOTOR, STARTER (INC. 6-7)
    MOTOR, STARTER (INC. 6-7)
  • 6
    0645-686 ...GEAR, PINION
    ...GEAR, PINION
  • 7
    0745-398 ...PINION STOPPER ASSEMBLY
    ...PINION STOPPER ASSEMBLY
  • 8
    0623-038 NUT,HEX M6 Z & Y-SEMS (W/WASHER)
    NUT,HEX M6 Z & Y-SEMS (W/WASHER)
  • 9
    0645-729 BRACKET, MOUNTING - LEFT
    BRACKET, MOUNTING - LEFT
  • 10
    8424-802 NUT,HEX-FLG M8X1.25 CL8 Z & Y
    NUT,HEX-FLG M8X1.25 CL8 Z & Y
  • 11
    0745-402 RING GEAR, ELECTRIC START - TREATED
    RING GEAR, ELECTRIC START - TREATED
  • 12
    1623-821 SCREW,MACH-TSFH M8X1.25X14 CL10.9Z & Y
    SCREW,MACH-TSFH M8X1.25X14 CL10.9Z & Y
