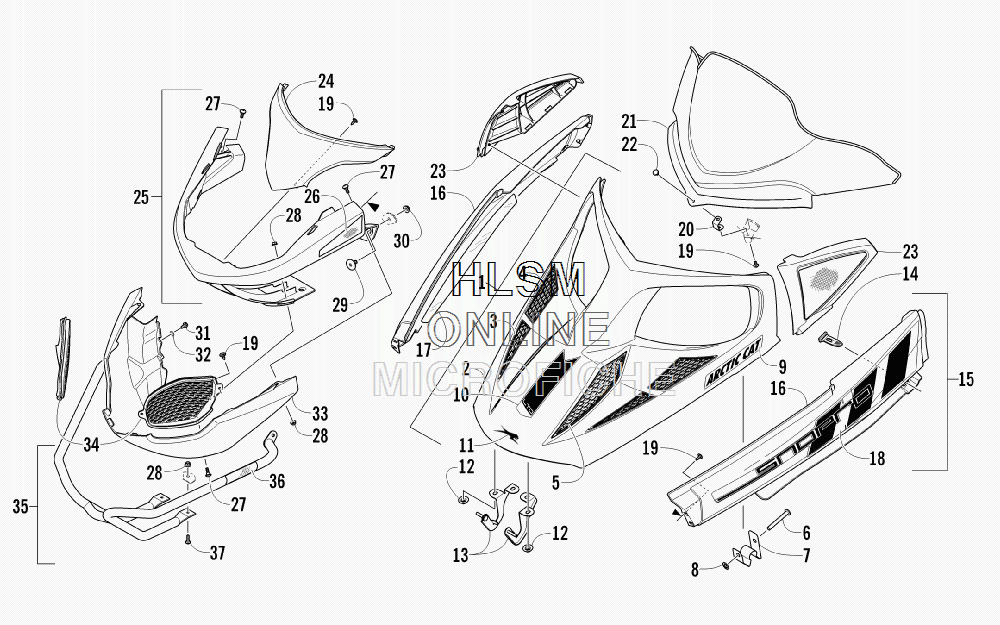

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F8 LXR (ORANGE) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-076 HOOD W/DECALS - GREEN (INC. 2-11)
    HOOD W/DECALS - GREEN (INC. 2-11)
  • 2
    7800-843 ...HOOD W/O DECALS - GREEN (INC. 3-8)
    ...HOOD W/O DECALS - GREEN (INC. 3-8)
  • 3
    4606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
    ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
  • 3
    4606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK
    ......VENT, HOOD - OUTER FRONT - LEFT - BLACK
  • 4
    4606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK
    ......VENT, HOOD - OUTER REAR - RIGHT - BLACK
  • 4
    4606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK
    ......VENT, HOOD - OUTER REAR - LEFT - BLACK
  • 5
    4606-614 ......VENT, HOOD - INNER - RIGHT - BLACK
    ......VENT, HOOD - INNER - RIGHT - BLACK
  • 5
    4606-615 ......VENT, HOOD - INNER - LEFT - BLACK
    ......VENT, HOOD - INNER - LEFT - BLACK
  • 6
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 7
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 7
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 8
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 9
    9611-304 ...DECAL, HOOD - "ARCTIC CAT"
    ...DECAL, HOOD - "ARCTIC CAT"
  • 10
    9611-305 ...DECAL, HOOD - CREST
    ...DECAL, HOOD - CREST
  • 11
    8611-267 ...DECAL, AIRCAT - CHROME
    ...DECAL, AIRCAT - CHROME
  • 12
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 13
    3706-348 BRACKET, HINGE - RIGHT
    BRACKET, HINGE - RIGHT
  • 13
    3706-347 BRACKET, HINGE - LEFT
    BRACKET, HINGE - LEFT
  • 14
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 15
    3718-074 SPAR, FRONT W/DECALS - RIGHT - GREEN (INC. 16-18)
    SPAR, FRONT W/DECALS - RIGHT - GREEN (INC. 16-18)
  • 15
    3718-075 SPAR, FRONT W/DECALS - LEFT - GREEN (INC. 16 AND 18)
    SPAR, FRONT W/DECALS - LEFT - GREEN (INC. 16 AND 18)
  • 16
    5706-016 ...SPAR, FRONT W/O DECALS - RIGHT - GREEN
    ...SPAR, FRONT W/O DECALS - RIGHT - GREEN
  • 16
    5706-017 ...SPAR, FRONT W/O DECALS - LEFT - GREEN
    ...SPAR, FRONT W/O DECALS - LEFT - GREEN
  • 17
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 18
    9611-302 ...DECAL, FRONT SPAR - FORWARD - RIGHT
    ...DECAL, FRONT SPAR - FORWARD - RIGHT
  • 18
    9611-303 ...DECAL, FRONT SPAR - FORWARD - LEFT
    ...DECAL, FRONT SPAR - FORWARD - LEFT
  • 19
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 21
    5606-984 WINDSHIELD
    WINDSHIELD
  • 22
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 23
    5706-026 BEZEL, INTAKE - RIGHT - GREEN
    BEZEL, INTAKE - RIGHT - GREEN
  • 23
    5706-027 BEZEL, INTAKE - LEFT - GREEN
    BEZEL, INTAKE - LEFT - GREEN
  • 24
    5706-022 FACIA, BUMPER - UPPER - GREEN
    FACIA, BUMPER - UPPER - GREEN
  • 25
    3718-072 BUMPER, FRONT - GREEN (INC. 26)
    BUMPER, FRONT - GREEN (INC. 26)
  • 26
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 26
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 27
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 28
    8427-602 NUT, LOCK
    NUT, LOCK
  • 29
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 30
    8424-602 NUT
    NUT
  • 31
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 32
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 33
    5606-462 FASCIA, BUMPER - LOWER - BLACK
    FASCIA, BUMPER - LOWER - BLACK
  • 34
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 34
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
  • 35
    5706-079 BUMPER, FRONT - BLACK (INC. 36)
    BUMPER, FRONT - BLACK (INC. 36)
  • 36
    9611-395 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 37
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
