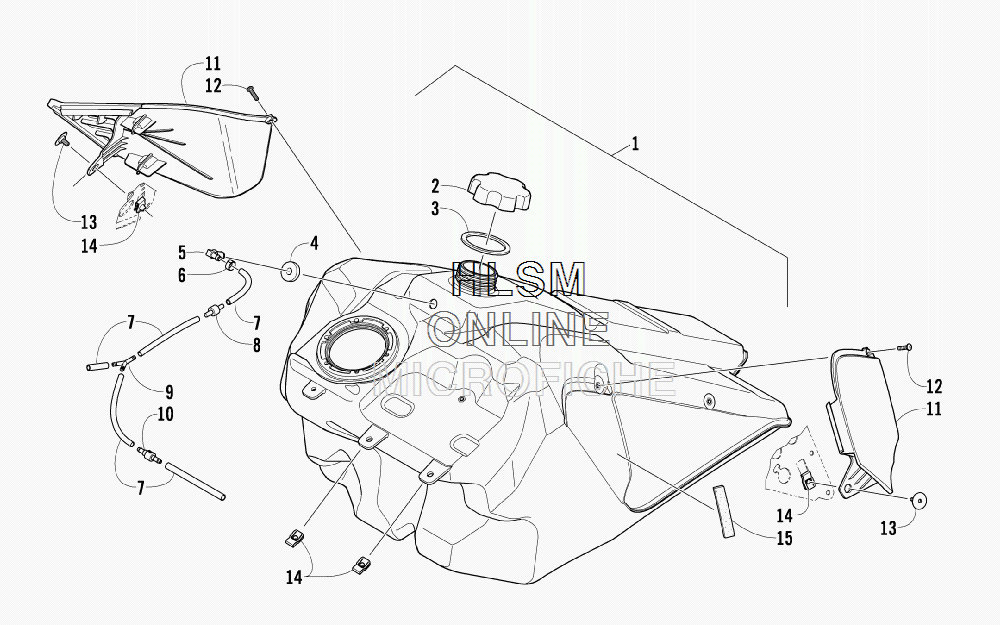

GAS TANK ASSEMBLY для Arctic Cat F8 LXR (ORANGE) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-148 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    2670-153 ...CAP, GAS TANK - ASSEMBLY (INC. 3)
    ...CAP, GAS TANK - ASSEMBLY (INC. 3)
  • 3
    0109-733 ......SEAL, GAS TANK CAP
    ......SEAL, GAS TANK CAP
  • 4
    1670-325 ...GROMMET
    ...GROMMET
  • 5
    1670-494 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 6
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 7
    6101-009 HOSE, GASLINE - 50 FT
    HOSE, GASLINE - 50 FT
  • 8
    0610-059 VALVE, CHECK
    VALVE, CHECK
  • 9
    2670-105 Y-FITTING
    Y-FITTING
  • 10
    1670-913 VALVE, PRESSURE-RELIEF
    VALVE, PRESSURE-RELIEF
  • 11
    5606-144 KNEE PAD, RIGHT
    KNEE PAD, RIGHT
  • 11
    5606-145 KNEE PAD, LEFT
    KNEE PAD, LEFT
  • 12
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 15
    0619-946 TAPE, FOAM - 1 FT
    TAPE, FOAM - 1 FT
