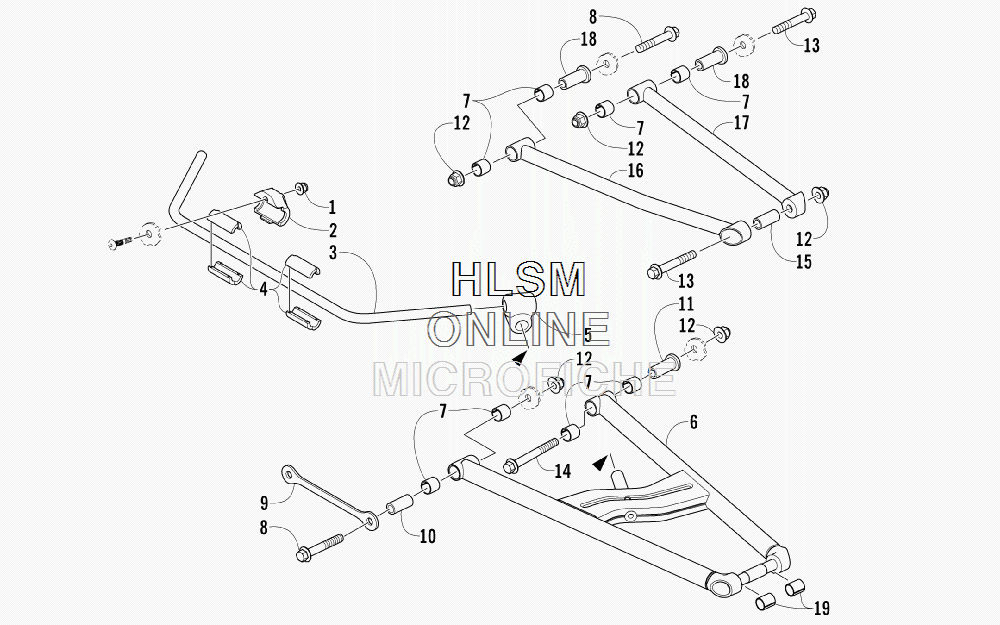

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat F8 LXR (ORANGE) - 2011 года выпуска`

№

Артикул

Название
1

8427-602 NUT, LOCK

NUT, LOCK

440 ₽
2

2603-818 BRACKET, MOUNTING - SWAY BAR

BRACKET, MOUNTING - SWAY BAR

4 570 ₽
3

2703-323 BAR, SWAY

BAR, SWAY

16 220 ₽
4

2603-712 SLEEVE, SWAY BAR

SLEEVE, SWAY BAR

920 ₽
5

2603-710 LINK, SWAY BAR

LINK, SWAY BAR

3 950 ₽
6

2703-770 A-ARM, LOWER - GREEN (INC. EIGHT NO. 7)

A-ARM, LOWER - GREEN (INC. EIGHT NO. 7)

28 490 ₽
7

1603-895 ...BEARING

...BEARING

810 ₽
8

8408-070 SCREW, CAP

SCREW, CAP

650 ₽
9

4606-402 BRACE, LOWER A-ARM

BRACE, LOWER A-ARM

1 240 ₽
10

2603-544 AXLE, INNER - LOWER A-ARM - FRONT

AXLE, INNER - LOWER A-ARM - FRONT

440 ₽
11

2603-543 AXLE, LOWER A-ARM - REAR

AXLE, LOWER A-ARM - REAR

610 ₽
12

8427-002 NUT, LOCK

NUT, LOCK

150 ₽
13

8408-065 SCREW, CAP

SCREW, CAP

480 ₽
14

8408-090 SCREW, CAP

SCREW, CAP

580 ₽
15

2603-643 AXLE, SPINDLE

AXLE, SPINDLE

500 ₽
16

2703-766 A-ARM, UPPER - FRONT - GREEN (INC. FOUR NO. 7)

A-ARM, UPPER - FRONT - GREEN (INC. FOUR NO. 7)

12 680 ₽
17

2703-768 A-ARM, UPPER - REAR - GREEN (INC. FOUR NO. 7)

A-ARM, UPPER - REAR - GREEN (INC. FOUR NO. 7)

13 930 ₽
18

2603-634 AXLE, INNER - UPPER A-ARM

AXLE, INNER - UPPER A-ARM

560 ₽
19

2603-577 BEARING, SPLIT

BEARING, SPLIT

980 ₽
