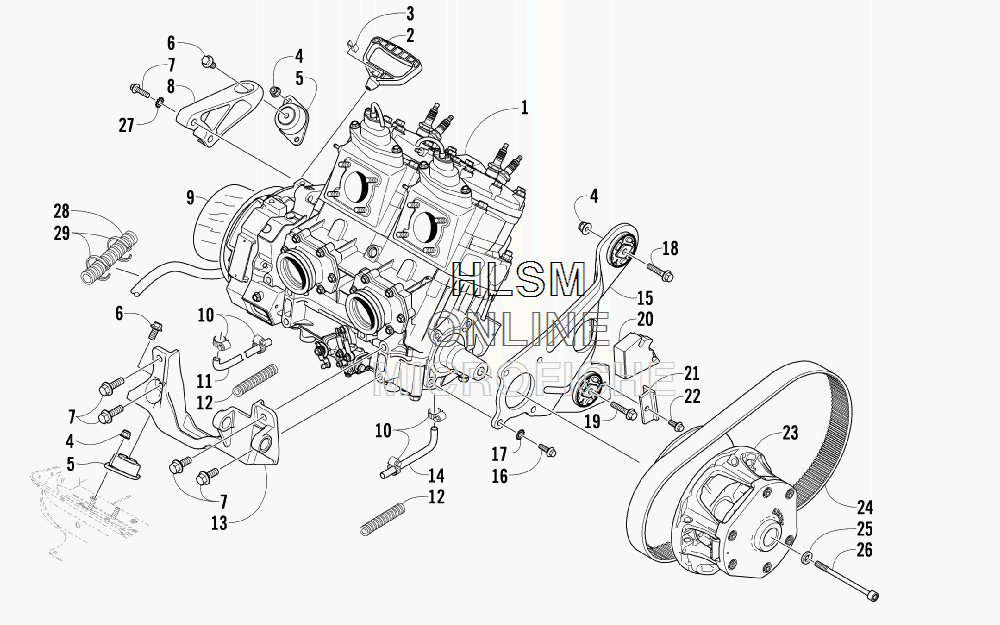

ENGINE AND RELATED PARTS для Arctic Cat F8 LXR (ORANGE) - 2011 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 W/O EFI COMPONENTSENGINE, AB80L4 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48427-802 NUT, LOCKNUT, LOCK
-
50608-496 MOUNT, ENGINEMOUNT, ENGINE
-
68409-020 SCREW, CAPSCREW, CAP
-
78409-026 SCREW, CAPSCREW, CAP
-
80708-474 MOUNT, ENGINE - MAGMOUNT, ENGINE - MAG
-
94606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100623-373 CLAMP, HOSECLAMP, HOSE
-
110610-779 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
120619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
130745-282 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
140610-731 HOSE, COOLANT - PTO/THROTTLE BODYHOSE, COOLANT - PTO/THROTTLE BODY
-
150708-484 BRACKET, ENGINE MOUNTING - LEFTBRACKET, ENGINE MOUNTING - LEFT
-
168408-821 SCREW, CAPSCREW, CAP
-
178053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
188408-845 SCREW, CAPSCREW, CAP
-
198408-847 SCREW, CAPSCREW, CAP
-
200608-511 BUMPER, TORQUEBUMPER, TORQUE
-
210608-512 STOP, TORQUE BUMPERSTOP, TORQUE BUMPER
-
220623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
230746-245 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
240627-046 BELT, DRIVEBELT, DRIVE
-
251623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
261623-792 BOLT, CLUTCHBOLT, CLUTCH
-
278053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
281619-131 CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
-
290123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
