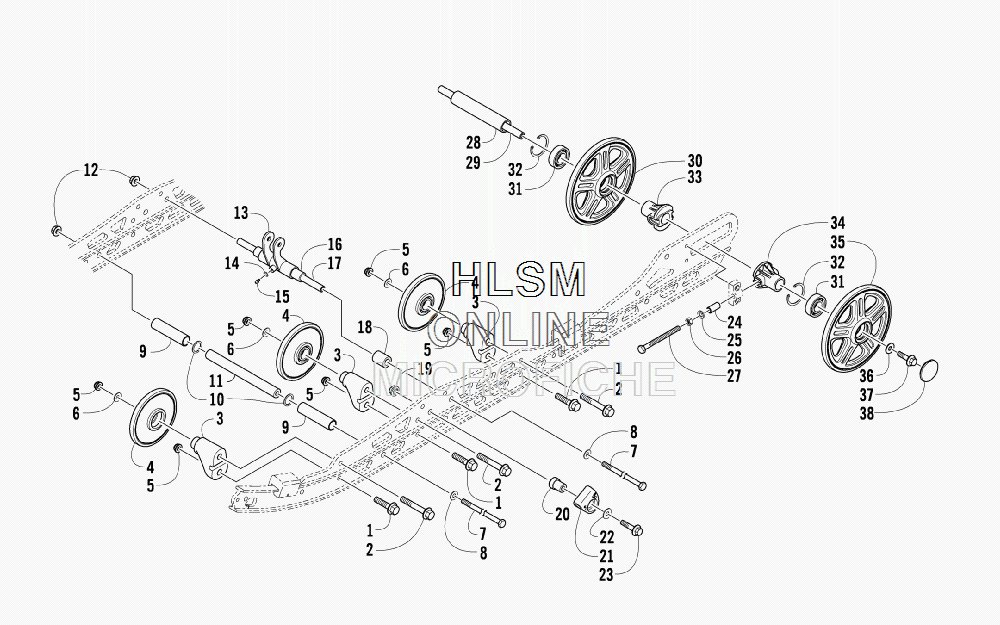

IDLER WHEEL ASSEMBLY для Arctic Cat CFR 800 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    8020-134 SCREW, CAP-HFH 5/16-18 X 1.25 G5 Z & Y
    SCREW, CAP-HFH 5/16-18 X 1.25 G5 Z & Y
  • 2
    8020-142 SCREW, CAP-HFH 5/16-18 X 3.25 G5 Z & Y
    SCREW, CAP-HFH 5/16-18 X 3.25 G5 Z & Y
  • 3
    3604-004 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 4
    3604-486 WHEEL, IDLER
    WHEEL, IDLER
  • 5
    8047-426 NUT, LOCK
    NUT, LOCK
  • 6
    8450-133 WASHER
    WASHER
  • 7
    1623-037 SCREW, CAP
    SCREW, CAP
  • 8
    0623-439 WASHER
    WASHER
  • 9
    3604-083 SPACER, SHOCK - FRONT ARM
    SPACER, SHOCK - FRONT ARM
  • 10
    0623-912 WASHER
    WASHER
  • 11
    3604-080 AXLE
    AXLE
  • 12
    8047-490 NUT, LOCK
    NUT, LOCK
  • 13
    0704-994 PIVOT, REAR SHOCK (INC. 14-16)
    PIVOT, REAR SHOCK (INC. 14-16)
  • 14
    1623-011 ...WASHER
    ...WASHER
  • 15
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 16
    0603-083 ...BEARING, GARLOCK 10DU12
    ...BEARING, GARLOCK 10DU12
  • 17
    1604-209 AXLE
    AXLE
  • 18
    2604-109 SPACER
    SPACER
  • 19
    8047-486 NUT, LOCK
    NUT, LOCK
  • 20
    2604-378 BLOCK, SLIDE
    BLOCK, SLIDE
  • 21
    2604-515 SLIDE, SPRING
    SLIDE, SPRING
  • 22
    8050-282 WASHER
    WASHER
  • 23
    8020-229 SCREW, CAP
    SCREW, CAP
  • 24
    2604-890 SPACER
    SPACER
  • 25
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 26
    8042-486 NUT
    NUT
  • 27
    1623-354 SCREW, CAP
    SCREW, CAP
  • 28
    1604-810 SPACER, REAR WHEEL
    SPACER, REAR WHEEL
  • 29
    2604-874 AXLE, REAR
    AXLE, REAR
  • 30
    3604-060 WHEEL, IDLER (INC. 31-32)
    WHEEL, IDLER (INC. 31-32)
  • 31
    3604-033 ...BEARING, WHL-NSK CHINA 6004-W/ENS GREASE
    ...BEARING, WHL-NSK CHINA 6004-W/ENS GREASE
  • 32
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 33
    2604-881 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 34
    1704-490 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 35
    3604-066 WHEEL, IDLER - GREEN (INC. 31-32)
    WHEEL, IDLER - GREEN (INC. 31-32)
  • 36
    0623-664 WASHER
    WASHER
  • 37
    1623-248 SCREW, CAP
    SCREW, CAP
  • 38
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
