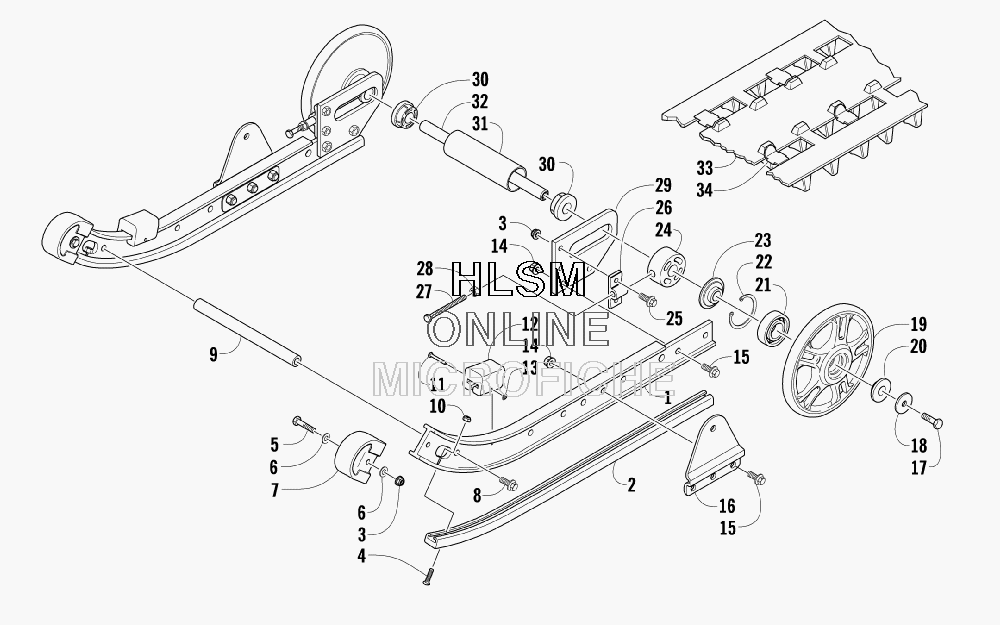

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat 120 SNO PRO - 2009 года выпуска

  • №
    Артикул
    Название
  • -
    7999-569 COMPLETE SKID FRAME ASSEMBLY GREEN
    COMPLETE SKID FRAME ASSEMBLY GREEN
  • -
    7999-592 COMPLETE SKID FRAME ASSEMBLY BLACK-PINK
    COMPLETE SKID FRAME ASSEMBLY BLACK-PINK
  • 1
    1604-705 RAIL, FORMED
    RAIL, FORMED
  • 2
    1604-568 WEARSTRIP, SLIDE RAIL - BLACK
    WEARSTRIP, SLIDE RAIL - BLACK
  • 3
    8047-366 NUT, LOCK
    NUT, LOCK
  • 4
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    8002-043 SCREW, CAP
    SCREW, CAP
  • 6
    8050-217 WASHER
    WASHER
  • 7
    0604-231 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    1623-566 SCREW, CAP
    SCREW, CAP
  • 9
    1604-566 AXLE, CROSS-BRACE
    AXLE, CROSS-BRACE
  • 10
    8041-366 NUT, LOCK
    NUT, LOCK
  • 11
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 12
    0104-631 PAD, SHOCK
    PAD, SHOCK
  • 13
    0423-090 NUT, PUSH
    NUT, PUSH
  • 14
    8047-426 NUT, LOCK
    NUT, LOCK
  • 15
    8020-131 SCREW, CAP
    SCREW, CAP
  • 16
    0704-896 BRACKET, SUPPORT - ARM
    BRACKET, SUPPORT - ARM
  • 17
    1623-427 SCREW, CAP
    SCREW, CAP
  • 18
    0123-570 WASHER
    WASHER
  • 19
    2604-982 WHEEL, IDLER - REAR - GREEN (INC. 20-23)
    WHEEL, IDLER - REAR - GREEN (INC. 20-23)
  • 19
    3604-294 WHEEL, IDLER - REAR - PINK (INC. 20-23) (BLACK-PINK)
    WHEEL, IDLER - REAR - PINK (INC. 20-23) (BLACK-PINK)
  • 20
    1604-773 ...INSERT, IDLER WHEEL - OUTER
    ...INSERT, IDLER WHEEL - OUTER
  • 21
    0107-598 ...BEARING
    ...BEARING
  • 22
    0123-798 ...RING, RETAINING
    ...RING, RETAINING
  • 23
    1604-772 ...INSERT, IDLER WHEEL - INNER
    ...INSERT, IDLER WHEEL - INNER
  • 24
    0604-165 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 25
    8020-040 SCREW, CAP
    SCREW, CAP
  • 26
    0604-206 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 27
    0124-310 SCREW, CAP
    SCREW, CAP
  • 28
    8042-486 NUT
    NUT
  • 29
    1604-661 HOUSING, AXLE - REAR
    HOUSING, AXLE - REAR
  • 30
    0604-968 BUSHING, SPACER
    BUSHING, SPACER
  • 31
    1604-563 SPACER
    SPACER
  • 32
    1604-562 AXLE, REAR
    AXLE, REAR
  • 33
    1602-015 TRACK ASSEMBLY (INC. 34)
    TRACK ASSEMBLY (INC. 34)
  • 34
    1602-079 ...CLIP, GUIDE
    ...CLIP, GUIDE
