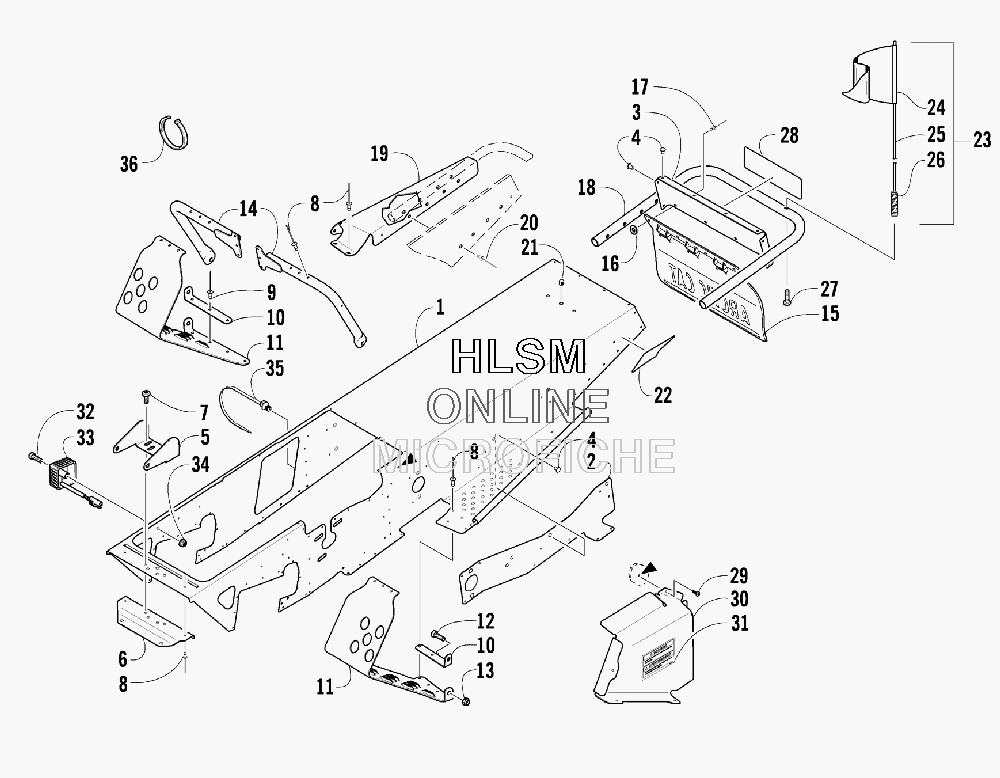

CHASSIS- FOOTREST- AND REAR BUMPER ASSEMBLY для Arctic Cat 120 SNO PRO - 2009 года выпуска
-
№АртикулНазвание
-
12718-539 TUNNEL ASSEMBLY (INC. 2-4)TUNNEL ASSEMBLY (INC. 2-4)
-
22706-156 ...PLATE, REINFORCEMENT - RIGHT...PLATE, REINFORCEMENT - RIGHT
-
22706-157 ...PLATE, REINFORCEMENT - LEFT...PLATE, REINFORCEMENT - LEFT
-
31606-740 ...PLATE,COVER-TUNNEL-PTD BLK...PLATE,COVER-TUNNEL-PTD BLK
-
40123-418 ...RIVET, SOLID...RIVET, SOLID
-
52706-141 BRACKET, MOUNTING - HOODBRACKET, MOUNTING - HOOD
-
63706-774 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
70623-892 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
88060-504 RIVETRIVET
-
98060-506 RIVETRIVET
-
102706-180 BRACKET, FOOTREST SUPPORT - RIGHTBRACKET, FOOTREST SUPPORT - RIGHT
-
102706-181 BRACKET, FOOTREST SUPPORT - LEFTBRACKET, FOOTREST SUPPORT - LEFT
-
111606-784 FOOTREST - RIGHTFOOTREST - RIGHT
-
111606-785 FOOTREST - LEFTFOOTREST - LEFT
-
128020-040 SCREW, CAPSCREW, CAP
-
138041-366 NUT, LOCKNUT, LOCK
-
143706-772 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
143706-773 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
151606-750 SNOWFLAPSNOWFLAP
-
160123-802 WASHERWASHER
-
178060-628 RIVETRIVET
-
183706-777 BUMPER, REAR - PLATINUMBUMPER, REAR - PLATINUM
-
193606-994 END CAP, REAR BUMPER - RIGHTEND CAP, REAR BUMPER - RIGHT
-
193606-995 END CAP, REAR BUMPER - LEFTEND CAP, REAR BUMPER - LEFT
-
208060-706 RIVETRIVET
-
210623-562 PLUG, HOLEPLUG, HOLE
-
226611-688 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
226611-689 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
231706-105 FLAG, SAFETY - ASSEMBLY (INC. 24-27)FLAG, SAFETY - ASSEMBLY (INC. 24-27)
-
241706-104 ...FLAG, SAFETY...FLAG, SAFETY
-
251606-954 ...POLE, SAFETY FLAG...POLE, SAFETY FLAG
-
262606-010 ...MOUNTING, SAFETY FLAG - ASSEMBLY...MOUNTING, SAFETY FLAG - ASSEMBLY
-
278020-134 ...SCREW, CAP...SCREW, CAP
-
288611-480 DECAL, REAR BUMPER GREENDECAL, REAR BUMPER GREEN
-
288611-491 DECAL, REAR BUMPER (BLACK-PINK)DECAL, REAR BUMPER (BLACK-PINK)
-
290623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
302706-217 COVER, DRIVEN SPROCKETCOVER, DRIVEN SPROCKET
-
313611-754 DECAL, WARNING - COVERDECAL, WARNING - COVER
-
328020-045 SCREW, CAPSCREW, CAP
-
330630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
348047-366 NUT, LOCKNUT, LOCK
-
350623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
360123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
