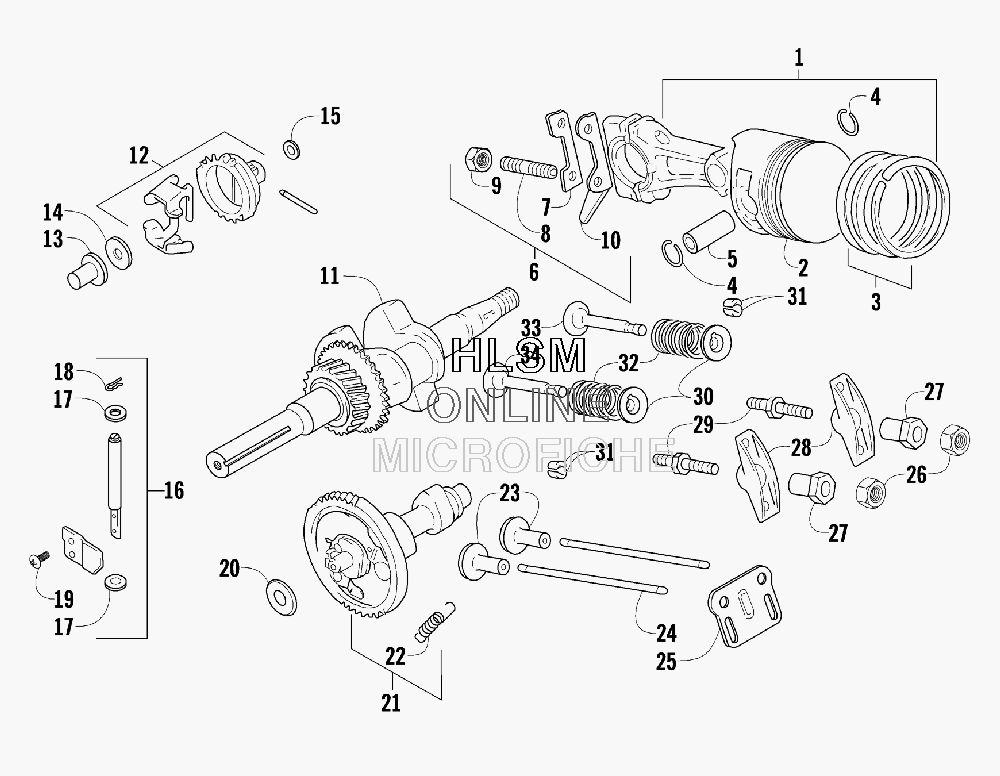

PISTON AND CRANKSHAFT для Arctic Cat 120 SNO PRO - 2009 года выпуска
-
№АртикулНазвание
-
10694-026 PISTON ASSEMBLY (INC. 2-4)PISTON ASSEMBLY (INC. 2-4)
-
20691-398 ...PISTON STD...PISTON STD
-
20691-569 ...PISTON, OVERSIZED (0.25 MM)* (OPT)...PISTON, OVERSIZED (0.25 MM)* (OPT)
-
20691-570 ...PISTON, OVERSIZED (0.50 MM)* (OPT)...PISTON, OVERSIZED (0.50 MM)* (OPT)
-
30691-399 ...RING, PISTON - SET STD...RING, PISTON - SET STD
-
30691-571 ...RING, PISTON - SET - OVERSIZED (0.25 MM)* (OPT)...RING, PISTON - SET - OVERSIZED (0.25 MM)* (OPT)
-
30691-572 ...RING, PISTON - SET - OVERSIZED (0.50 MM)* (OPT)...RING, PISTON - SET - OVERSIZED (0.50 MM)* (OPT)
-
40691-378 ...CIRCLIP...CIRCLIP
-
50691-400 PIN, PISTONPIN, PISTON
-
60691-936 ROD, CONNECTING - ASSEMBLY (INC. 7-10)ROD, CONNECTING - ASSEMBLY (INC. 7-10)
-
70691-403 ...PLATE, LOCK...PLATE, LOCK
-
80691-366 ...BOLT, STUD...BOLT, STUD
-
93004-851 ...NUT...NUT
-
100691-402 ...PLATE, SPLASH...PLATE, SPLASH
-
110694-027 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
120693-698 GEAR, GOVERNOR - SETGEAR, GOVERNOR - SET
-
130691-842 SLIDER, GOVERNORSLIDER, GOVERNOR
-
140691-843 WASHERWASHER
-
153004-652 WASHERWASHER
-
160693-258 SHAFT, THROTTLE CONTROL - SET (INC. 17-19)SHAFT, THROTTLE CONTROL - SET (INC. 17-19)
-
170693-252 ...WASHER...WASHER
-
180691-848 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
193004-563 ...SCREW, MACHINE...SCREW, MACHINE
-
200691-840 WASHERWASHER
-
210691-914 CAMSHAFT (INC. 22)CAMSHAFT (INC. 22)
-
220691-380 ...SPRING...SPRING
-
230691-406 TAPPETTAPPET
-
240691-407 ROD, PUSHROD, PUSH
-
250691-415 GUIDE, PUSH RODGUIDE, PUSH ROD
-
260691-016 NUTNUT
-
270691-413 PIVOTPIVOT
-
280691-412 ARM, ROCKERARM, ROCKER
-
290694-037 BOLT, STUDBOLT, STUD
-
300693-313 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
310693-281 COTTER, VALVECOTTER, VALVE
-
320694-036 SPRING, VALVESPRING, VALVE
-
330694-008 VALVE, INTAKEVALVE, INTAKE
-
340694-009 VALVE, EXHAUSTVALVE, EXHAUST
