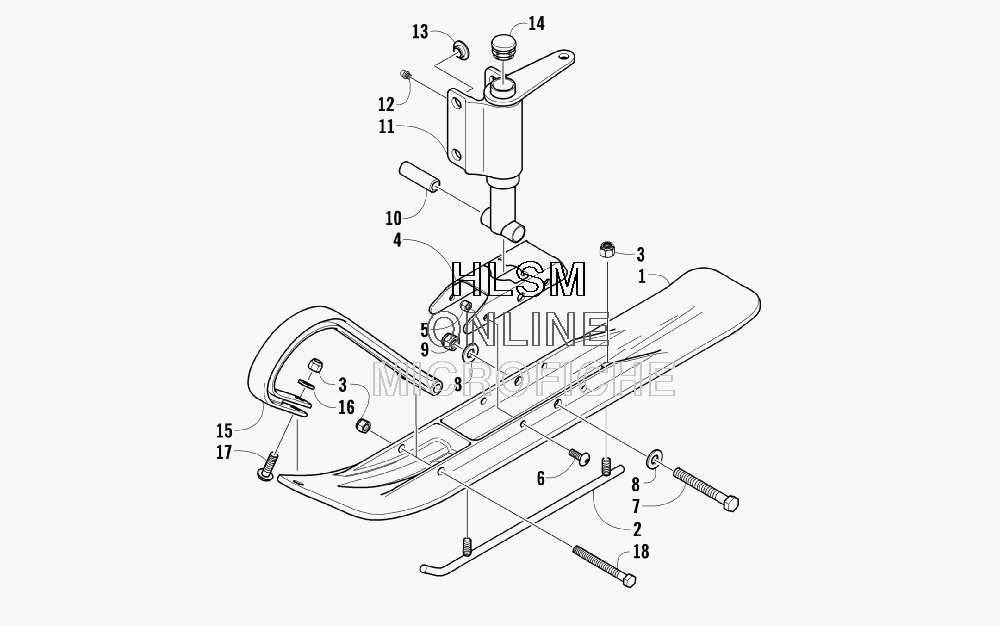

SKI AND SPINDLE ASSEMBLY для Arctic Cat 120 SNO PRO - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-593 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 2
    0703-698 WEARBAR
    WEARBAR
  • 3
    8047-426 NUT, LOCK
    NUT, LOCK
  • 4
    2703-396 SADDLE, SKI - GREEN
    SADDLE, SKI - GREEN
  • 4
    2703-413 SADDLE, SKI - PINK (BLACK-PINK)
    SADDLE, SKI - PINK (BLACK-PINK)
  • 5
    8047-366 NUT, LOCK
    NUT, LOCK
  • 6
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    8002-231 SCREW, CAP
    SCREW, CAP
  • 8
    8050-277 WASHER
    WASHER
  • 9
    8047-486 NUT, LOCK
    NUT, LOCK
  • 10
    1603-365 AXLE
    AXLE
  • 11
    2703-395 SPINDLE - GREEN (INC. 12-13)
    SPINDLE - GREEN (INC. 12-13)
  • 11
    2703-412 SPINDLE - PINK (INC. 12-13) (BLACK-PINK)
    SPINDLE - PINK (INC. 12-13) (BLACK-PINK)
  • 12
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 13
    0603-647 ...INSERT, SPINDLE
    ...INSERT, SPINDLE
  • 14
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 15
    1603-594 HANDLE, SKI - BLACK
    HANDLE, SKI - BLACK
  • 16
    8050-247 WASHER
    WASHER
  • 17
    8017-672 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    8002-141 SCREW, CAP
    SCREW, CAP
