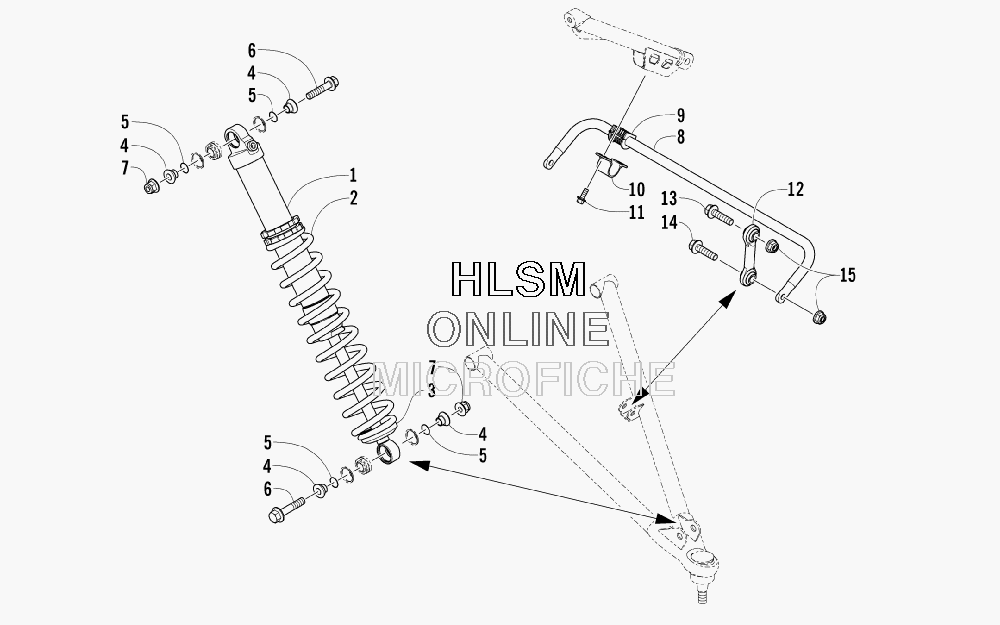

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat AC 600 Sno Pro - 2008 года выпуска`
-
№АртикулНазвание
-
12703-360 SHOCK, SKISHOCK, SKI
-
22703-385 SPRING, COMPRESSION - WHITE - 175 LBSPRING, COMPRESSION - WHITE - 175 LB
-
22703-406 SPRING, COMPRESSION - WHITE - 145 LB (OPTIONAL)SPRING, COMPRESSION - WHITE - 145 LB (OPTIONAL)
-
22703-386 SPRING, COMPRESSION - WHITE - 160 LB (OPTIONAL)SPRING, COMPRESSION - WHITE - 160 LB (OPTIONAL)
-
22703-387 SPRING, COMPRESSION - WHITE - 190 LB (OPTIONAL)SPRING, COMPRESSION - WHITE - 190 LB (OPTIONAL)
-
31603-890 RETAINER, SPRINGRETAINER, SPRING
-
42603-758 SPACER, SPHERICAL BEARINGSPACER, SPHERICAL BEARING
-
52604-698 O-RINGO-RING
-
68408-045 SCREW, CAPSCREW, CAP
-
78427-002 NUT, LOCKNUT, LOCK
-
84639-961 KIT, SWAY BAR - BLACK - 11.1 MM (INC. 9)KIT, SWAY BAR - BLACK - 11.1 MM (INC. 9)
-
84639-962 KIT, SWAY BAR - BLACK - 12.7 MM (INC. 9) (OPTIONAL)KIT, SWAY BAR - BLACK - 12.7 MM (INC. 9) (OPTIONAL)
-
84639-963 KIT, SWAY BAR - BLACK - 14.3 MM (INC. 9) (OPTIONAL)KIT, SWAY BAR - BLACK - 14.3 MM (INC. 9) (OPTIONAL)
-
92603-803 ...BUSHING, SWAY BAR - 11.1 MM...BUSHING, SWAY BAR - 11.1 MM
-
92603-804 ...BUSHING, SWAY BAR - 12.7 MM (OPTIONAL)...BUSHING, SWAY BAR - 12.7 MM (OPTIONAL)
-
92603-775 ...BUSHING, SWAY BAR - 14.3 MM (OPTIONAL)...BUSHING, SWAY BAR - 14.3 MM (OPTIONAL)
-
102603-776 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
118408-616 SCREW, CAPSCREW, CAP
-
122603-800 LINK, SWAY BARLINK, SWAY BAR
-
138408-840 SCREW, CAPSCREW, CAP
-
148408-835 SCREW, CAPSCREW, CAP
-
158427-802 NUT, LOCKNUT, LOCK
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY
- BELLY PAN ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- CONTROL ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND STEERING SUPPORT ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND WIRING ASSEMBLY
- HOOD AND WINDSHIELD ASSEMBLY
- HOOD PARTS LIST (MODIFIED RACE SLED)*
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- KIT PARTS LIST (MODIFIED RACE SLED)
- MAGNETO
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SERVOMOTOR ASSEMBLY
- • SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST AND TIE ROD ASSEMBLY
- WATER PUMP/WATER MANIFOLD
