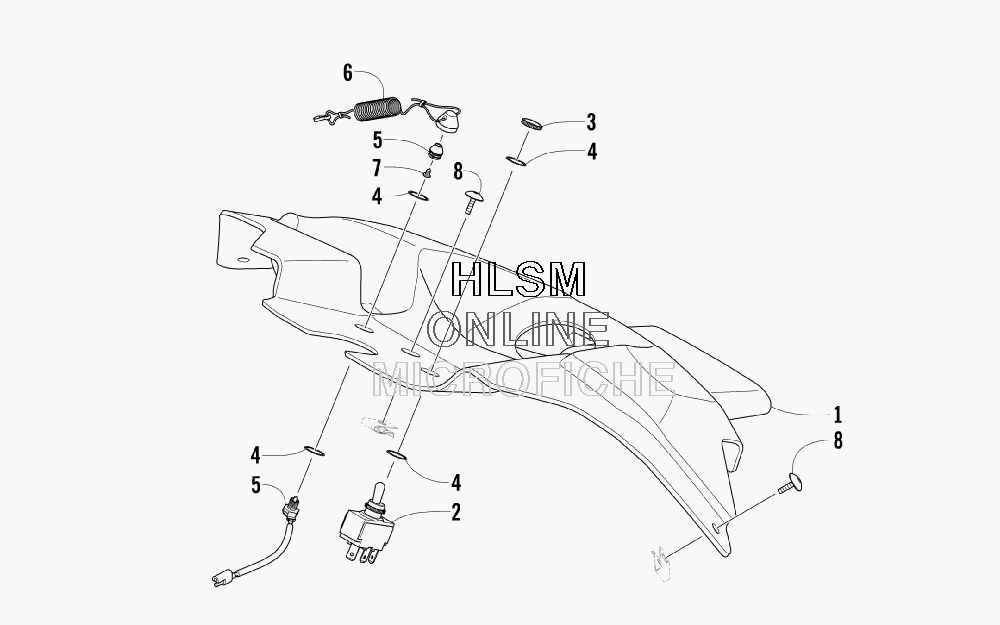

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat AC 600 Sno Pro - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5606-374 CONSOLE
    CONSOLE
  • 2
    0609-186 SWITCH, HANDWARMER/THUMBWARMER (INC. 3)
    SWITCH, HANDWARMER/THUMBWARMER (INC. 3)
  • 3
    0609-220 ...NUT, KNURLED - BLACK (BRASS)
    ...NUT, KNURLED - BLACK (BRASS)
  • 4
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 5
    0709-072 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/SCREW (INC. 7)
    ...TETHER CORD W/SCREW (INC. 7)
  • 7
    0623-338 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 8
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
