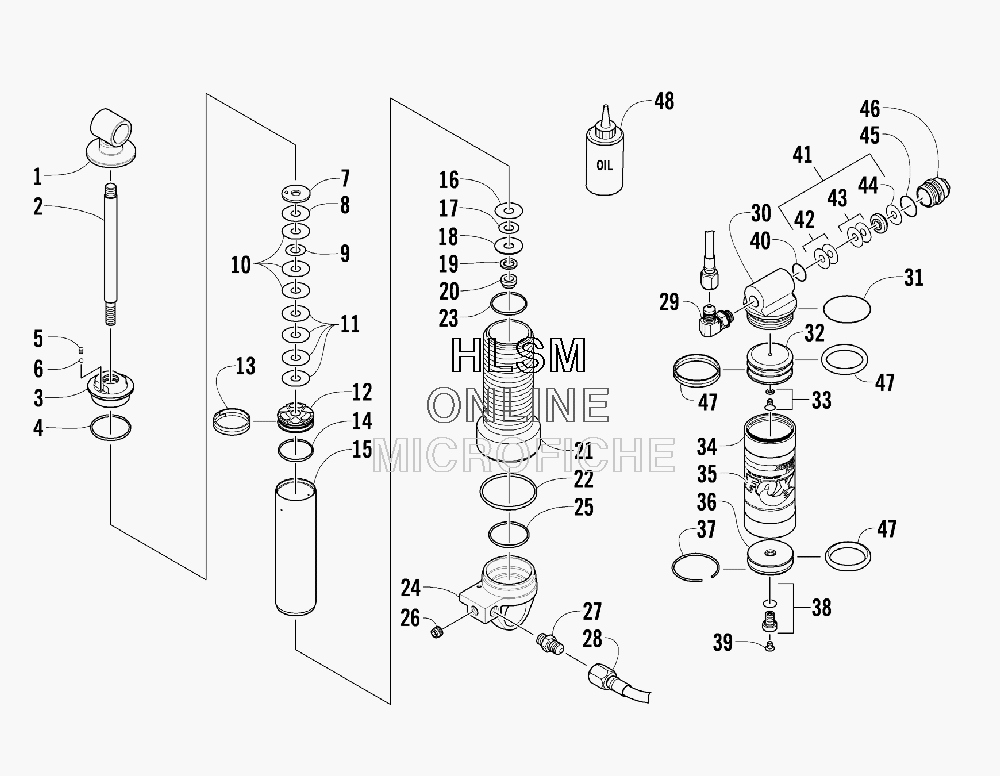

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat AC 600 Sno Pro - 2008 года выпуска`
-
№АртикулНазвание
-
1704-732 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
3604-166 SHOCK ABSORBER REBUILD KIT (INC. 3 - 6, 13, 14, 22 AND 23)SHOCK ABSORBER REBUILD KIT (INC. 3 - 6, 13, 14, 22 AND 23)
-
3604-177 RESERVOIR REBUILD KIT (INC. 33, 40 AND 45)RESERVOIR REBUILD KIT (INC. 33, 40 AND 45)
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-529 ROD, SHOCKROD, SHOCK
-
32604-568 BEARING - ASSEMBLY (INC. 4) (INC. IN SHOCK ABSORBER REBUILD KIT)BEARING - ASSEMBLY (INC. 4) (INC. IN SHOCK ABSORBER REBUILD KIT)
-
41604-420 ...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)
-
51603-940 SCREW W/O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)SCREW W/O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)
-
61604-315 BALL, ADJUSTER (INC. IN SHOCK ABSORBER REBUILD KIT)BALL, ADJUSTER (INC. IN SHOCK ABSORBER REBUILD KIT)
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-349 VALVE, SHOCK 1.300 X 0.008 IN.VALVE, SHOCK 1.300 X 0.008 IN.
-
90603-333 VALVE, SHOCK 0.800 X 0.006 IN.VALVE, SHOCK 0.800 X 0.006 IN.
-
100603-890 VALVE, SHOCK 1.300 X 0.015 IN.VALVE, SHOCK 1.300 X 0.015 IN.
-
110603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
122603-531 PISTON, DAMPING - 1.459 BORE - NO BLEEDPISTON, DAMPING - 1.459 BORE - NO BLEED
-
130603-292 STRAP, PISTON - TEFLON (INC. IN SHOCK ABSORBER REBUILD KIT)STRAP, PISTON - TEFLON (INC. IN SHOCK ABSORBER REBUILD KIT)
-
142604-214 O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)
-
153604-422 BODY, SHOCKBODY, SHOCK
-
160603-343 VALVE, SHOCK 1.100 X 0.008 IN.VALVE, SHOCK 1.100 X 0.008 IN.
-
170603-878 VALVE, SHOCK 0.700 X 0.012 IN.VALVE, SHOCK 0.700 X 0.012 IN.
-
183604-170 PLATE, TOP OUTPLATE, TOP OUT
-
190603-389 WASHER, BACKUPWASHER, BACKUP
-
200603-301 NUT, CAPNUT, CAP
-
213604-169 SLEEVE, ADJUSTER (INC. 22-23)SLEEVE, ADJUSTER (INC. 22-23)
-
220604-809 ...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)
-
230604-810 ...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)...O-RING (INC. IN SHOCK ABSORBER REBUILD KIT)
-
242604-909 END CAP, SHOCK (INC. 25)END CAP, SHOCK (INC. 25)
-
250603-438 ...O-RING...O-RING
-
262604-207 PLUG, BRASSPLUG, BRASS
-
272604-944 FITTING, STRAIGHTFITTING, STRAIGHT
-
282604-967 HOSE, SWIVELHOSE, SWIVEL
-
292604-943 FITTING, ELBOW W/O-RINGFITTING, ELBOW W/O-RING
-
302603-528 HOUSING, DAMPING ADJUSTER (INC. 31)HOUSING, DAMPING ADJUSTER (INC. 31)
-
312603-504 ...O-RING...O-RING
-
322604-969 PISTON, INTERNAL FLOATING - ASSEMBLYPISTON, INTERNAL FLOATING - ASSEMBLY
-
331604-316 SCREW, RELIEF W/O-RING (INC. IN RESERVOIR REBUILD KIT)SCREW, RELIEF W/O-RING (INC. IN RESERVOIR REBUILD KIT)
-
342603-515 RESERVOIRRESERVOIR
-
353604-160 DECAL, SHOCK - RESERVOIRDECAL, SHOCK - RESERVOIR
-
362603-525 END CAP, SHOCK - ASSEMBLYEND CAP, SHOCK - ASSEMBLY
-
370604-992 RING, RETAININGRING, RETAINING
-
380703-341 VALVE, PRESSURE W/O-RINGVALVE, PRESSURE W/O-RING
-
390624-097 SCREW, MACHINESCREW, MACHINE
-
403604-164 O-RING ( (INC. IN RESERVOIR REBUILD KIT)O-RING ( (INC. IN RESERVOIR REBUILD KIT)
-
413604-187 PISTON, DAMPING (INC. 42-44)PISTON, DAMPING (INC. 42-44)
-
423604-165 ...PLATE, BACKUP...PLATE, BACKUP
-
432603-501 ...VALVE, SHOCK 0.700 X 0.010 IN....VALVE, SHOCK 0.700 X 0.010 IN.
-
440603-331 ...VALVE, SHOCK 0.700 X 0.008 IN....VALVE, SHOCK 0.700 X 0.008 IN.
-
452603-502 O-RING (INC. IN RESERVOIR REBUILD KIT)O-RING (INC. IN RESERVOIR REBUILD KIT)
-
462603-527 CARTRIDGE, DAMPING ADJUSTERCARTRIDGE, DAMPING ADJUSTER
-
473604-177 REBUILD KIT, RESERVOIRREBUILD KIT, RESERVOIR
-
484639-345 OIL, GAS SHOCK - 1 QTOIL, GAS SHOCK - 1 QT
