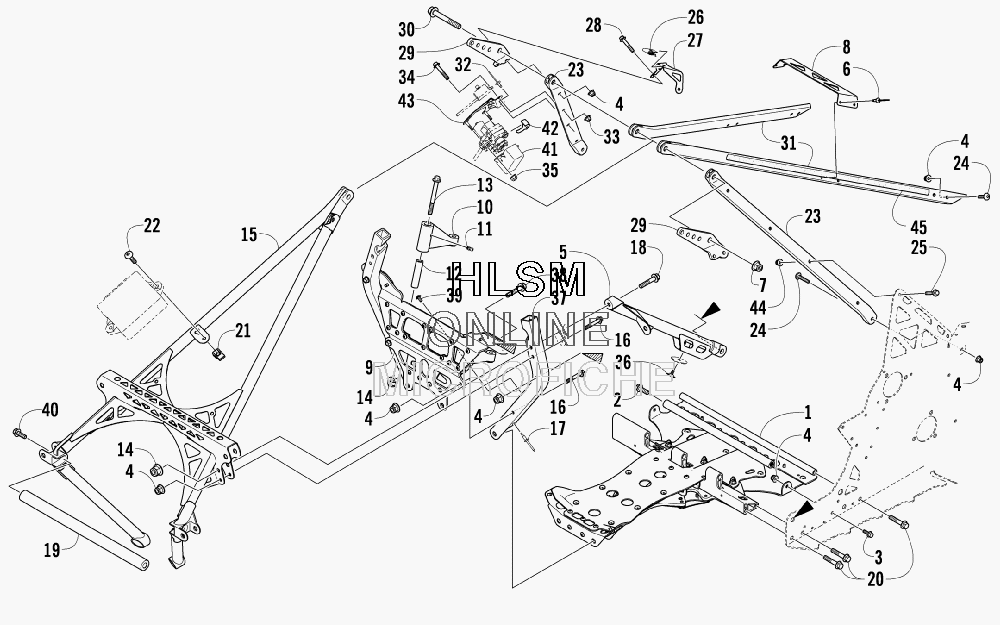

FRONT FRAME AND STEERING SUPPORT ASSEMBLY для Arctic Cat AC 600 Sno Pro - 2008 года выпуска
-
№АртикулНазвание
-
11707-162 GUSSET, LOWER ARMGUSSET, LOWER ARM
-
28409-026 SCREW, CAPSCREW, CAP
-
38408-616 SCREW, CAPSCREW, CAP
-
48427-602 NUT, LOCKNUT, LOCK
-
54706-082 BRACE, DIAGONAL - RIGHT - BLACKBRACE, DIAGONAL - RIGHT - BLACK
-
54706-083 BRACE, DIAGONAL - LEFT - BLACKBRACE, DIAGONAL - LEFT - BLACK
-
68060-686 RIVETRIVET
-
78427-002 NUT, LOCKNUT, LOCK
-
85606-616 BRACE, SUPPORT - SPARBRACE, SUPPORT - SPAR
-
91707-164 BULKHEAD, STEERINGBULKHEAD, STEERING
-
101707-172 ARM, STEERING (INC. 11)ARM, STEERING (INC. 11)
-
111623-010 ...FITTING, GREASE...FITTING, GREASE
-
122603-436 AXLE, STEERING ARMAXLE, STEERING ARM
-
138408-880 SCREW, CAPSCREW, CAP
-
148427-802 NUT, LOCKNUT, LOCK
-
154706-051 SPAR, UPPER - BLACKSPAR, UPPER - BLACK
-
168408-640 SCREW, CAPSCREW, CAP
-
171623-241 RIVETRIVET
-
188408-845 SCREW, CAPSCREW, CAP
-
194706-413 CROSSBRACE, FRONT ARM MOUNTCROSSBRACE, FRONT ARM MOUNT
-
201623-428 SCREW, CAPSCREW, CAP
-
210423-031 NUT, SPEEDNUT, SPEED
-
228476-620 SCREW, MACHINESCREW, MACHINE
-
234706-096 SPAR, MIDDLE - MACHINE - RIGHTSPAR, MIDDLE - MACHINE - RIGHT
-
234706-097 SPAR, MIDDLE - MACHINE - LEFTSPAR, MIDDLE - MACHINE - LEFT
-
248476-625 SCREW, MACHINESCREW, MACHINE
-
258408-625 SCREW, CAPSCREW, CAP
-
261623-052 U-NUTU-NUT
-
275606-396 BRACKET, MOUNTING - CONSOLEBRACKET, MOUNTING - CONSOLE
-
288408-630 SCREW, CAPSCREW, CAP
-
290605-962 BRACKET, STEERING - RIGHTBRACKET, STEERING - RIGHT
-
290605-963 BRACKET, STEERING - LEFTBRACKET, STEERING - LEFT
-
308408-090 SCREW, CAPSCREW, CAP
-
314706-098 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
314706-099 SPAR, REAR - LEFTSPAR, REAR - LEFT
-
328060-682 RIVETRIVET
-
338427-502 NUT, LOCKNUT, LOCK
-
348408-530 SCREW, CAPSCREW, CAP
-
358047-366 NUT, LOCKNUT, LOCK
-
360423-101 SCREW, BODYSCREW, BODY
-
370607-930 TUBE, STEERING - BULKHEAD - RIGHTTUBE, STEERING - BULKHEAD - RIGHT
-
370607-931 TUBE, STEERING - BULKHEAD - LEFTTUBE, STEERING - BULKHEAD - LEFT
-
388408-645 SCREW, CAPSCREW, CAP
-
391623-463 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
408408-825 SCREW, CAPSCREW, CAP
-
412606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
425606-208 CLIP, SERVOMOTORCLIP, SERVOMOTOR
-
432706-814 PLATE, MOUNTING - SERVOMOTORPLATE, MOUNTING - SERVOMOTOR
-
448424-602 NUTNUT
-
456990-283 VELCRO HOOK - 1 IN. X 80 IN.VELCRO HOOK - 1 IN. X 80 IN.
