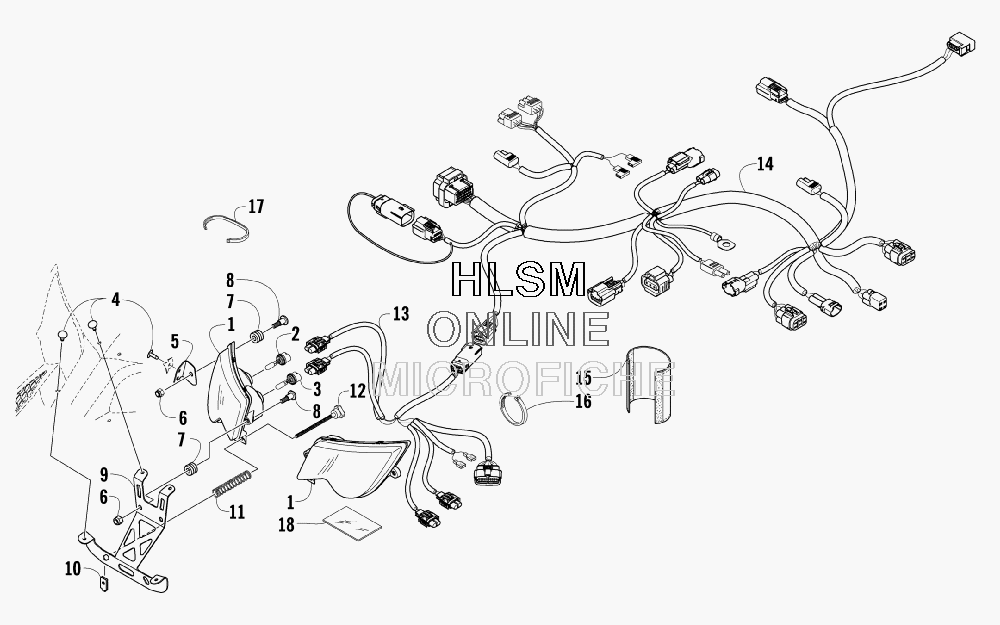

HEADLIGHT AND WIRING ASSEMBLY для Arctic Cat AC 600 Sno Pro - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-852 HEADLIGHT ASSEMBLY - RIGHT (INC. 2-3)
    HEADLIGHT ASSEMBLY - RIGHT (INC. 2-3)
  • 1
    0609-853 HEADLIGHT ASSEMBLY - LEFT (INC. 2-3)
    HEADLIGHT ASSEMBLY - LEFT (INC. 2-3)
  • 2
    0409-073 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
  • 3
    0409-045 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
  • 4
    8061-508 RIVET
    RIVET
  • 5
    5606-390 BRACKET, HEADLIGHT - RIGHT
    BRACKET, HEADLIGHT - RIGHT
  • 5
    5606-391 BRACKET, HEADLIGHT - LEFT
    BRACKET, HEADLIGHT - LEFT
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    0423-447 GROMMET
    GROMMET
  • 8
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    5606-392 BRACKET, HEADLIGHT - MIDDLE
    BRACKET, HEADLIGHT - MIDDLE
  • 10
    1623-052 U-NUT
    U-NUT
  • 11
    0623-360 SPRING, ADJUSTMENT - HEADLIGHT
    SPRING, ADJUSTMENT - HEADLIGHT
  • 12
    1623-024 SCREW, ADJUSTMENT
    SCREW, ADJUSTMENT
  • 13
    1686-470 HARNESS, HOOD
    HARNESS, HOOD
  • 14
    1686-465 HARNESS, MAIN
    HARNESS, MAIN
  • 15
    3706-761 WRAP, WIRE HARNESS
    WRAP, WIRE HARNESS
  • 16
    0123-903 TIE, CABLE
    TIE, CABLE
  • 17
    0123-788 TIE, CABLE
    TIE, CABLE
  • 18
    2606-556 FOIL, HEADLIGHT - LEFT
    FOIL, HEADLIGHT - LEFT
