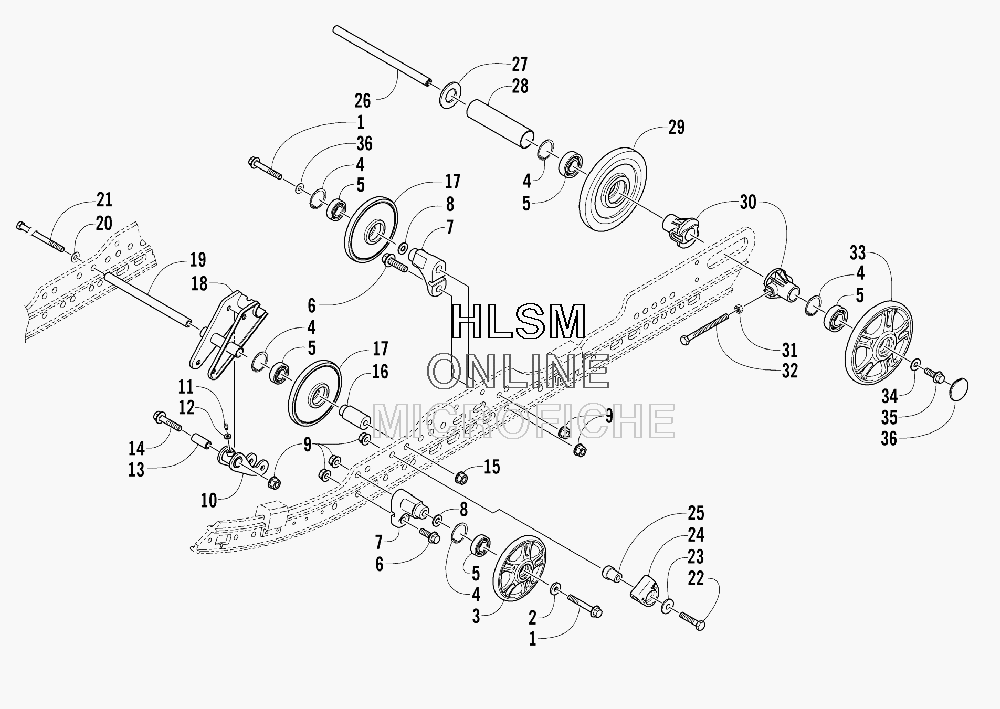

IDLER WHEEL ASSEMBLY для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
28050-282 WASHERWASHER
-
33604-048 WHEEL, IDLER - ORANGE (INC. 4-5)WHEEL, IDLER - ORANGE (INC. 4-5)
-
40623-946 ...RING, RETAINING...RING, RETAINING
-
53604-033 ...BEARING...BEARING
-
68020-224 SCREW, CAPSCREW, CAP
-
72604-579 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
81604-187 WASHERWASHER
-
98047-486 NUT, LOCKNUT, LOCK
-
101704-272 PIVOT, REAR SHOCK (INC. 11-12)PIVOT, REAR SHOCK (INC. 11-12)
-
111623-010 ...FITTING, GREASE...FITTING, GREASE
-
121623-011 ...WASHER, GREASE FITTING...WASHER, GREASE FITTING
-
131604-329 AXLE, SHOCK PIVOTAXLE, SHOCK PIVOT
-
148020-228 SCREW, CAPSCREW, CAP
-
158047-490 NUT, LOCKNUT, LOCK
-
162604-964 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
173604-039 WHEEL, IDLER - BLACK (INC. 4-5)WHEEL, IDLER - BLACK (INC. 4-5)
-
181704-235 BRACKET, MOUNTING - FRONT ARM SHOCKBRACKET, MOUNTING - FRONT ARM SHOCK
-
192604-737 AXLE, STEELAXLE, STEEL
-
200623-044 WASHERWASHER
-
211623-037 SCREW, CAPSCREW, CAP
-
228002-229 SCREW, CAPSCREW, CAP
-
238050-282 WASHERWASHER
-
242604-516 SLIDE, SPRINGSLIDE, SPRING
-
252604-378 BLOCK, SLIDEBLOCK, SLIDE
-
262604-283 AXLE, REAR WHEELAXLE, REAR WHEEL
-
270623-921 WASHERWASHER
-
281604-940 SPACER, REAR WHEELSPACER, REAR WHEEL
-
293604-049 WHEEL, IDLER - BLACK (INC. 4-5)WHEEL, IDLER - BLACK (INC. 4-5)
-
301704-489 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
318042-486 NUTNUT
-
320623-123 SCREW, CAPSCREW, CAP
-
333604-054 WHEEL, IDLER - ORANGE (INC. 4-5)WHEEL, IDLER - ORANGE (INC. 4-5)
-
340623-664 WASHERWASHER
-
351623-248 SCREW, CAPSCREW, CAP
-
361604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
