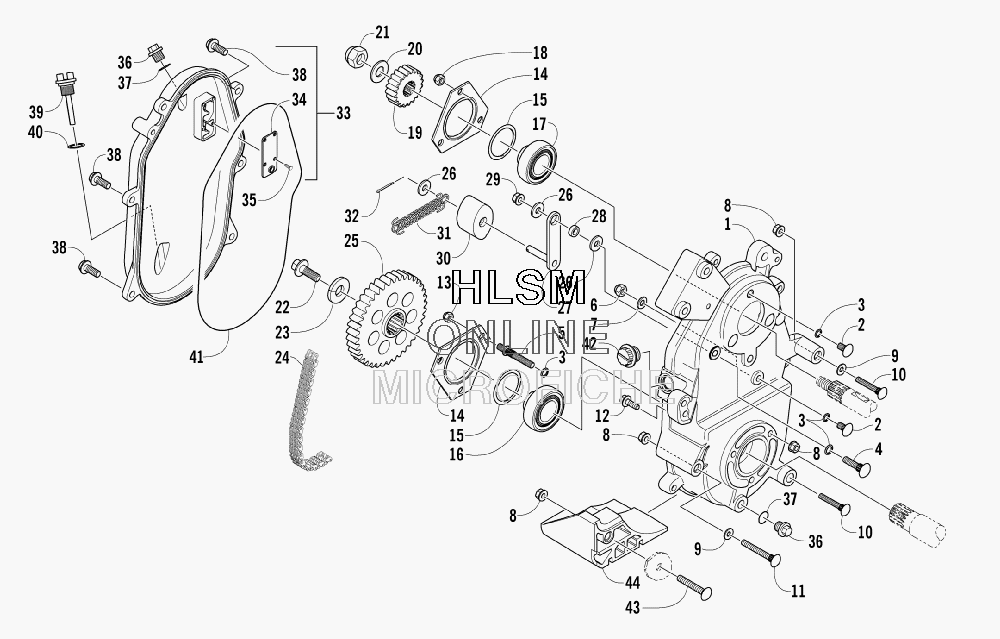

DRIVE/DROPCASE ASSEMBLY для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
10702-450 DROPCASE W/STUDS (INC. 2-7)DROPCASE W/STUDS (INC. 2-7)
-
20123-523 ...BOLT, RIBBED...BOLT, RIBBED
-
30607-025 ...O-RING, STUD...O-RING, STUD
-
40623-117 ...BOLT, RIBBED...BOLT, RIBBED
-
50623-317 ...STUD...STUD
-
68042-426 ...NUT...NUT
-
70623-094 ...WASHER...WASHER
-
88047-426 NUT, LOCKNUT, LOCK
-
98050-247 WASHERWASHER
-
108011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
118011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
121623-551 SCREW, CAPSCREW, CAP
-
138040-426 NUT, LOCKNUT, LOCK
-
141602-521 PLATE, FLANGEPLATE, FLANGE
-
150107-003 O-RINGO-RING
-
161602-972 BEARING, 1 IN.BEARING, 1 IN.
-
171602-973 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
188041-426 NUT, LOCKNUT, LOCK
-
190107-341 SPROCKET - 18TSPROCKET - 18T
-
200623-231 WASHER, SPRINGWASHER, SPRING
-
210123-310 NUT, LOCKNUT, LOCK
-
221623-556 SCREW, CAPSCREW, CAP
-
231623-038 WASHER, SPRINGWASHER, SPRING
-
240107-372 CHAIN - 72PCHAIN - 72P
-
250602-938 SPROCKET - 44TSPROCKET - 44T
-
268050-212 WASHERWASHER
-
270107-226 ARM, TIGHTENERARM, TIGHTENER
-
280107-234 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
298047-366 NUT, LOCKNUT, LOCK
-
300107-411 PAD, TIGHTENERPAD, TIGHTENER
-
310707-026 SPRING ASSEMBLYSPRING ASSEMBLY
-
320123-082 PIN, COTTERPIN, COTTER
-
337996-258 COVER, DROPCASE - ASSEMBLY (INC. 34-35 AND ONE NO. 36-37)COVER, DROPCASE - ASSEMBLY (INC. 34-35 AND ONE NO. 36-37)
-
341602-152 ...COVER, OIL VENT...COVER, OIL VENT
-
350623-081 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
360623-293 ...PLUG, DROPCASE...PLUG, DROPCASE
-
371602-213 ...O-RING...O-RING
-
388020-134 SCREW, CAPSCREW, CAP
-
390602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
400670-183 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
410602-437 SEAL, DROPCASESEAL, DROPCASE
-
420602-857 PLUG, DROPCASEPLUG, DROPCASE
-
438011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
440616-964 GUARD, DROPCASEGUARD, DROPCASE
