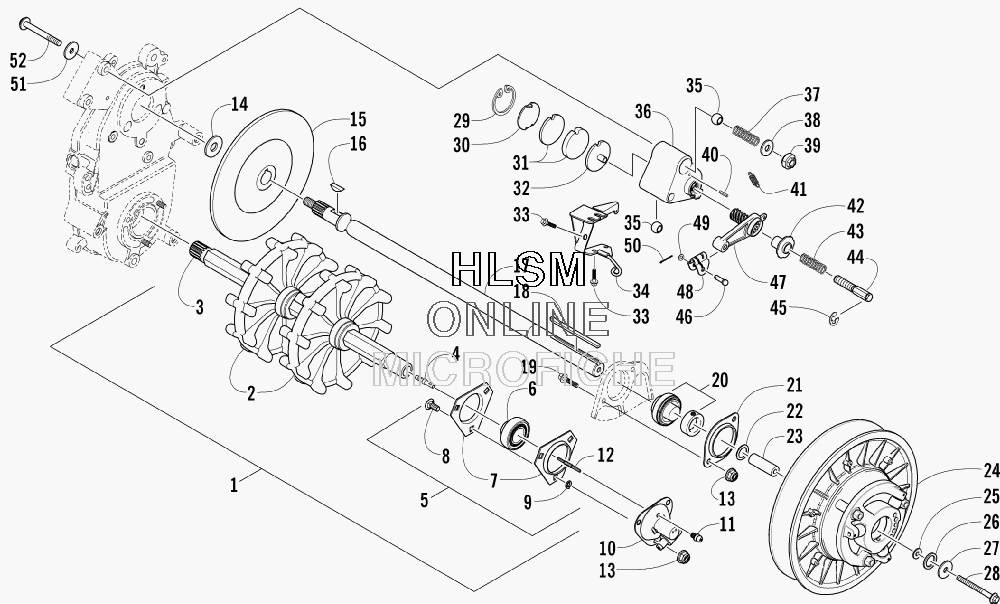

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
10728-146 TRACK DRIVE ASSEMBLY (INC. 2-9)TRACK DRIVE ASSEMBLY (INC. 2-9)
-
21602-507 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
31602-852 ...DRIVESHAFT...DRIVESHAFT
-
40120-247 ...BUSHING, DRIVE...BUSHING, DRIVE
-
50702-567 ...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)
-
61602-374 ......BEARING, 1 IN. W/LOCK COLLAR......BEARING, 1 IN. W/LOCK COLLAR
-
70602-198 ......PLATE, FLANGE......PLATE, FLANGE
-
88011-130 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
90623-810 ......RING, SOLDER......RING, SOLDER
-
100720-005 ADAPTER, DRIVE (INC. 11)ADAPTER, DRIVE (INC. 11)
-
110104-062 ...FITTING, GREASE...FITTING, GREASE
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
138047-426 NUT, LOCKNUT, LOCK
-
140623-912 WASHERWASHER
-
151602-206 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-468 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
198020-132 SCREW, CAPSCREW, CAP
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHER,FLAT-1.00 X1.43 X.030WASHER,FLAT-1.00 X1.43 X.030
-
220623-119 WASHER,FLAT-1.00 X1.43 X.075WASHER,FLAT-1.00 X1.43 X.075
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-211 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
281623-552 SCREW, CAPSCREW, CAP
-
290602-502 RING, SNAPRING, SNAP
-
300602-775 PLATE, BACKING - STATIONARY PADPLATE, BACKING - STATIONARY PAD
-
310702-264 PAD, BRAKE - SETPAD, BRAKE - SET
-
320602-716 PISTON, BRAKE PADPISTON, BRAKE PAD
-
338020-039 SCREW, CAPSCREW, CAP
-
340702-283 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
350602-503 BALL, ALIGNMENTBALL, ALIGNMENT
-
360602-505 CALIPER, BRAKE - ASSEMBLYCALIPER, BRAKE - ASSEMBLY
-
370602-618 SPRING, COMPRESSIONSPRING, COMPRESSION
-
380623-450 WASHERWASHER
-
390602-622 NUT, BRAKE CALIPERNUT, BRAKE CALIPER
-
408070-316 PIN, SPRINGPIN, SPRING
-
410602-779 SPRING, RETURNSPRING, RETURN
-
421602-024 KNOB, BRAKE - ADJUSTERKNOB, BRAKE - ADJUSTER
-
430602-616 SPRING, COMPRESSIONSPRING, COMPRESSION
-
440602-515 SCREW, BRAKE - ADJUSTERSCREW, BRAKE - ADJUSTER
-
450124-057 E-RINGE-RING
-
460602-509 PIN, CLEVISPIN, CLEVIS
-
471602-022 ARM, ACTIVATORARM, ACTIVATOR
-
480602-508 CLEVISCLEVIS
-
498050-212 WASHERWASHER
-
500117-868 PIN, COTTERPIN, COTTER
-
518050-307 WASHERWASHER
-
520602-386 BOLT, MOUNTING - BRAKE CALIPERBOLT, MOUNTING - BRAKE CALIPER
