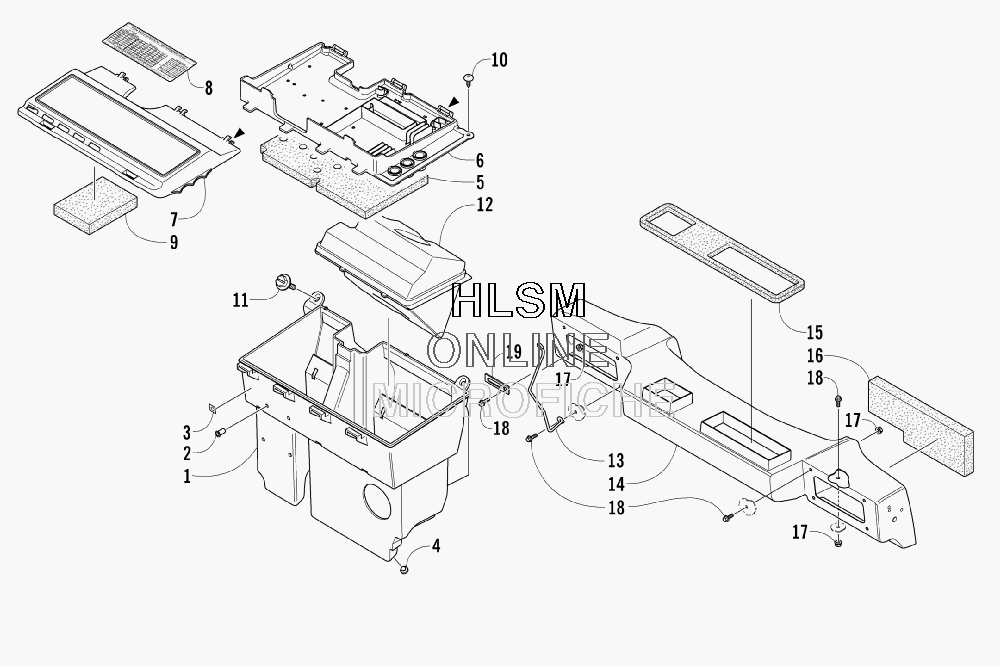

AIR SILENCER ASSEMBLY для Arctic Cat Z 370 (ORANGE LX) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-658 SILENCER, AIR - ASSEMBLY (INC. 2)
    SILENCER, AIR - ASSEMBLY (INC. 2)
  • 2
    1623-127 ...INSERT
    ...INSERT
  • 3
    4611-029 DECAL, FUEL SHUT-OFF VALVE
    DECAL, FUEL SHUT-OFF VALVE
  • 4
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 5
    0617-393 FOAM, AIR SILENCER - TOP
    FOAM, AIR SILENCER - TOP
  • 6
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 7
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 8
    7611-593 DECAL, JET CHART
    DECAL, JET CHART
  • 9
    0617-411 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 10
    0623-727 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    0623-780 SCREW, MACHINE - HEX SHOULDER
    SCREW, MACHINE - HEX SHOULDER
  • 12
    1670-061 RESONATOR, Q-WAVE
    RESONATOR, Q-WAVE
  • 13
    0707-705 BRACKET, GUARD - HARNESS/ROPE
    BRACKET, GUARD - HARNESS/ROPE
  • 14
    1670-327 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 15
    0617-245 SEAL, PLENUM/AIR SILENCER
    SEAL, PLENUM/AIR SILENCER
  • 16
    0617-270 FOAM, PLENUM - INTAKE
    FOAM, PLENUM - INTAKE
  • 17
    8047-366 NUT, LOCK
    NUT, LOCK
  • 18
    8020-040 SCREW, CAP
    SCREW, CAP
  • 19
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
