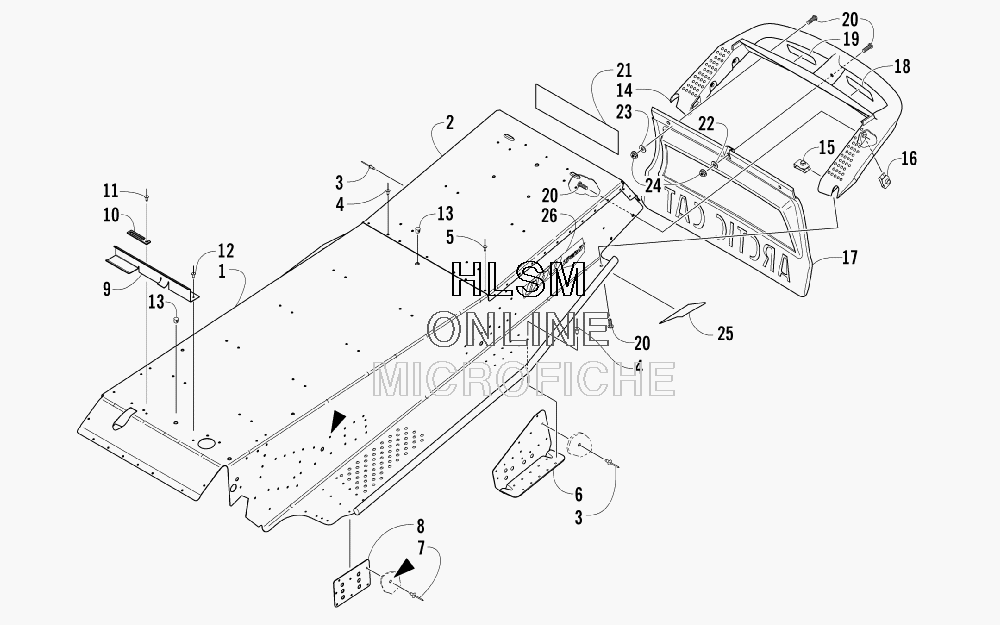

TUNNEL AND REAR BUMPER для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-308 TUNNEL ASSEMBLY (INC. 2-6)
    TUNNEL ASSEMBLY (INC. 2-6)
  • 2
    2606-867 ...PLATE, END - REAR TUNNEL
    ...PLATE, END - REAR TUNNEL
  • 3
    0123-418 ...RIVET
    ...RIVET
  • 4
    8060-686 ...RIVET
    ...RIVET
  • 5
    8060-484 ...RIVET
    ...RIVET
  • 6
    1706-078 ...BRACKET, MOUNTING - REAR SUSPENSION - RIGHT
    ...BRACKET, MOUNTING - REAR SUSPENSION - RIGHT
  • 6
    1706-079 ...BRACKET, MOUNTING - REAR SUSPENSION - LEFT
    ...BRACKET, MOUNTING - REAR SUSPENSION - LEFT
  • 7
    0623-072 RIVET
    RIVET
  • 8
    2706-116 PLATE, SUSPENSION MOUNTING - FRONT
    PLATE, SUSPENSION MOUNTING - FRONT
  • 9
    0707-704 BRACKET, MAIN HARNESS PROTECTOR
    BRACKET, MAIN HARNESS PROTECTOR
  • 10
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 11
    8060-506 RIVET
    RIVET
  • 12
    0623-166 RIVET
    RIVET
  • 13
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 14
    1606-200 BUMPER, REAR
    BUMPER, REAR
  • 15
    0623-427 NUT, U
    NUT, U
  • 16
    0623-771 NUT, U
    NUT, U
  • 17
    1606-507 SNOWFLAP
    SNOWFLAP
  • 18
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 19
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 20
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    7611-797 DECAL, BUMPER
    DECAL, BUMPER
  • 22
    8050-217 WASHER
    WASHER
  • 23
    0623-184 WASHER
    WASHER
  • 24
    8047-366 NUT, LOCK
    NUT, LOCK
  • 25
    6611-688 DECAL, REFLECTOR - RED - RIGHT
    DECAL, REFLECTOR - RED - RIGHT
  • 25
    6611-689 DECAL, REFLECTOR - RED - LEFT
    DECAL, REFLECTOR - RED - LEFT
  • 26
    7611-424 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 26
    7611-425 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
