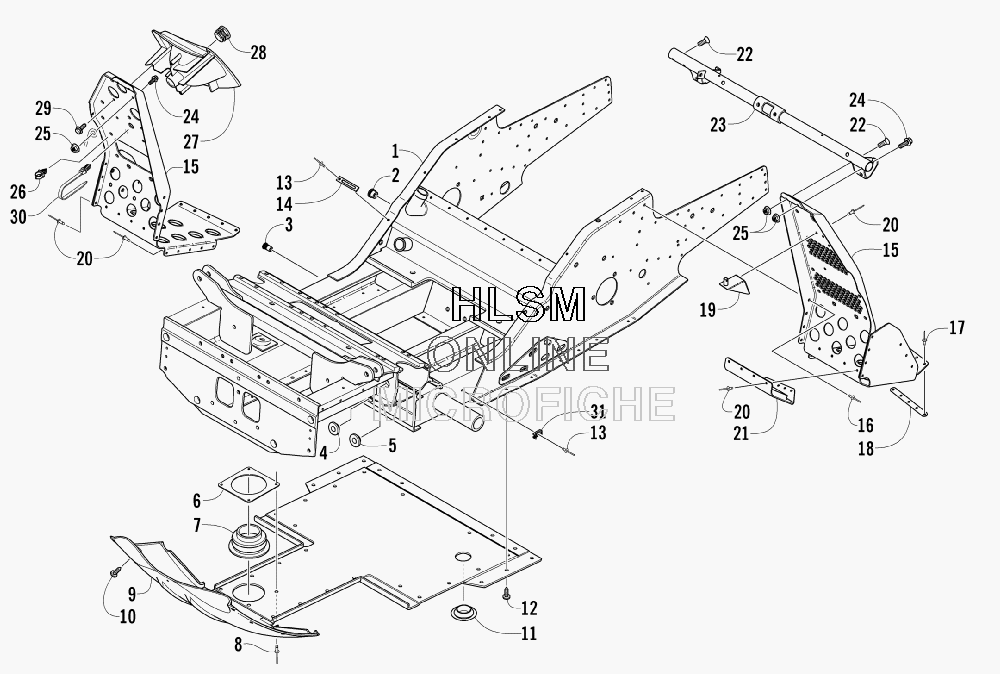

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска
-
№АртикулНазвание
-
10707-820 CHASSIS ASSEMBLY (INC. 2-5)CHASSIS ASSEMBLY (INC. 2-5)
-
20623-581 ...INSERT...INSERT
-
30623-582 ...INSERT...INSERT
-
40607-420 ...INSERT, LOWER A-ARM MOUNT...INSERT, LOWER A-ARM MOUNT
-
50607-421 ...INSERT, UPPER A-ARM MOUNT...INSERT, UPPER A-ARM MOUNT
-
60712-952 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
93706-396 BELLY PAN - CENTER - PLATINUMBELLY PAN - CENTER - PLATINUM
-
100623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
112606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
121623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138060-506 RIVETRIVET
-
143002-964 CLAMP, WIRECLAMP, WIRE
-
153606-782 FOOTREST - RIGHT - PLATINUMFOOTREST - RIGHT - PLATINUM
-
152606-733 FOOTREST - LEFT - PLATINUMFOOTREST - LEFT - PLATINUM
-
160623-341 RIVETRIVET
-
170623-282 RIVETRIVET
-
182706-110 PLATE, BACKING - FOOTRESTPLATE, BACKING - FOOTREST
-
190705-173 BRACKET, MOUNTING - BELT GUARDBRACKET, MOUNTING - BELT GUARD
-
200623-166 RIVETRIVET
-
212606-458 PLATE, BACKING - RIGHT - PLATINUMPLATE, BACKING - RIGHT - PLATINUM
-
212606-459 PLATE, BACKING - LEFT - PLATINUMPLATE, BACKING - LEFT - PLATINUM
-
228019-615 SCREW, MACHINESCREW, MACHINE
-
231705-095 SUPPORT, STEERINGSUPPORT, STEERING
-
248020-040 SCREW, CAPSCREW, CAP
-
258047-366 NUT, LOCKNUT, LOCK
-
260623-101 CLIP, ROUTINGCLIP, ROUTING
-
271706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
280623-831 PLUG, RECOIL CUPPLUG, RECOIL CUP
-
290623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
300623-677 CABLE TIE, PUSH-MOUNTCABLE TIE, PUSH-MOUNT
-
310623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
