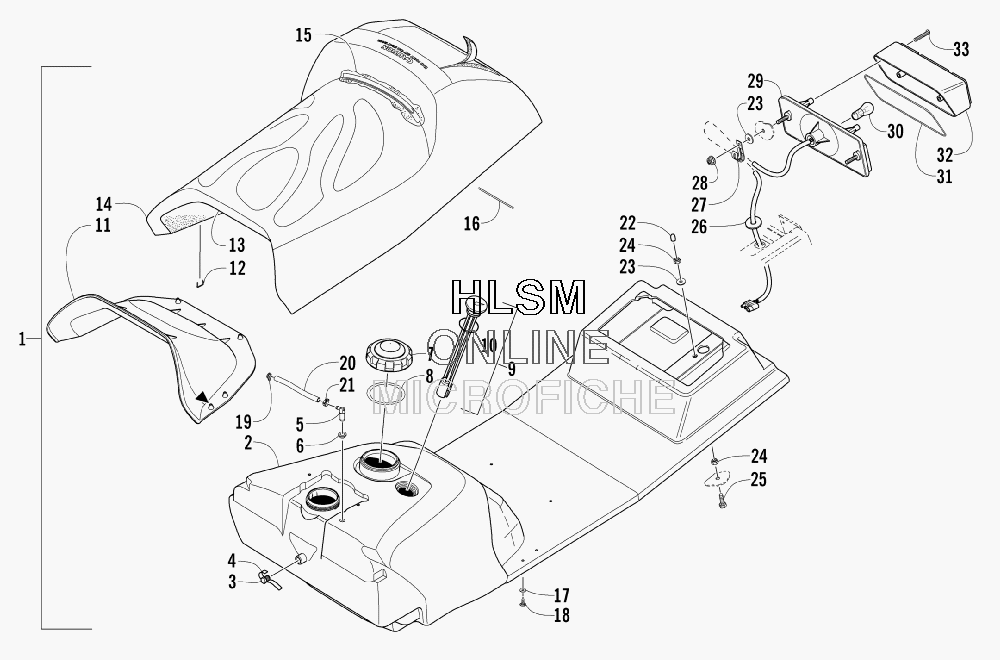

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-030 COMPLETE SEAT ASSEMBLY (INC. 2-18)
    COMPLETE SEAT ASSEMBLY (INC. 2-18)
  • 2
    0770-558 ...TANK, GAS/SEAT-BASE (INC. 3-10)
    ...TANK, GAS/SEAT-BASE (INC. 3-10)
  • 3
    0670-243 ......PLUG, GAS TANK
    ......PLUG, GAS TANK
  • 4
    0670-289 ......TAPE, TEFLON
    ......TAPE, TEFLON
  • 5
    1670-494 ......VENT, GAS TANK
    ......VENT, GAS TANK
  • 6
    1670-325 ......GROMMET, GAS TANK
    ......GROMMET, GAS TANK
  • 7
    1670-199 ......CAP, GAS TANK (INC. 8)
    ......CAP, GAS TANK (INC. 8)
  • 8
    1670-228 .........SEAL, GAS TANK CAP
    .........SEAL, GAS TANK CAP
  • 9
    1670-241 ......GAUGE, GAS W/SEAL (INC. 10)
    ......GAUGE, GAS W/SEAL (INC. 10)
  • 10
    0470-400 .........SEAL, GAS GAUGE
    .........SEAL, GAS GAUGE
  • 11
    1606-126 ...INSERT, SEAT FOAM
    ...INSERT, SEAT FOAM
  • 12
    0624-528 ...STAPLE, SEAT COVER
    ...STAPLE, SEAT COVER
  • 13
    3706-310 ...FOAM, SEAT CUSHION
    ...FOAM, SEAT CUSHION
  • 14
    3706-493 ...COVER, SEAT (INC. 15)
    ...COVER, SEAT (INC. 15)
  • 15
    3606-363 ......WIRE, SEAT
    ......WIRE, SEAT
  • 16
    2606-943 ...WIRE, SEAT
    ...WIRE, SEAT
  • 17
    8050-217 ...WASHER
    ...WASHER
  • 18
    0623-309 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 19
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
  • 20
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 20
    6101-009 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 21
    1623-042 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    0623-404 CAP, PROTECTOR
    CAP, PROTECTOR
  • 23
    0623-184 WASHER
    WASHER
  • 24
    8047-366 NUT, LOCK
    NUT, LOCK
  • 25
    8020-042 SCREW, CAP
    SCREW, CAP
  • 26
    0617-136 SEAL, FOAM - SEAT-BASE
    SEAL, FOAM - SEAT-BASE
  • 27
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 28
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 29
    0609-091 TAILLIGHT W/SOCKET ASSEMBLY
    TAILLIGHT W/SOCKET ASSEMBLY
  • 30
    0109-460 BULB
    BULB
  • 31
    0609-092 GASKET, TAILLIGHT LENS
    GASKET, TAILLIGHT LENS
  • 32
    0609-090 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 33
    0609-093 SCREW, RETAINING
    SCREW, RETAINING
