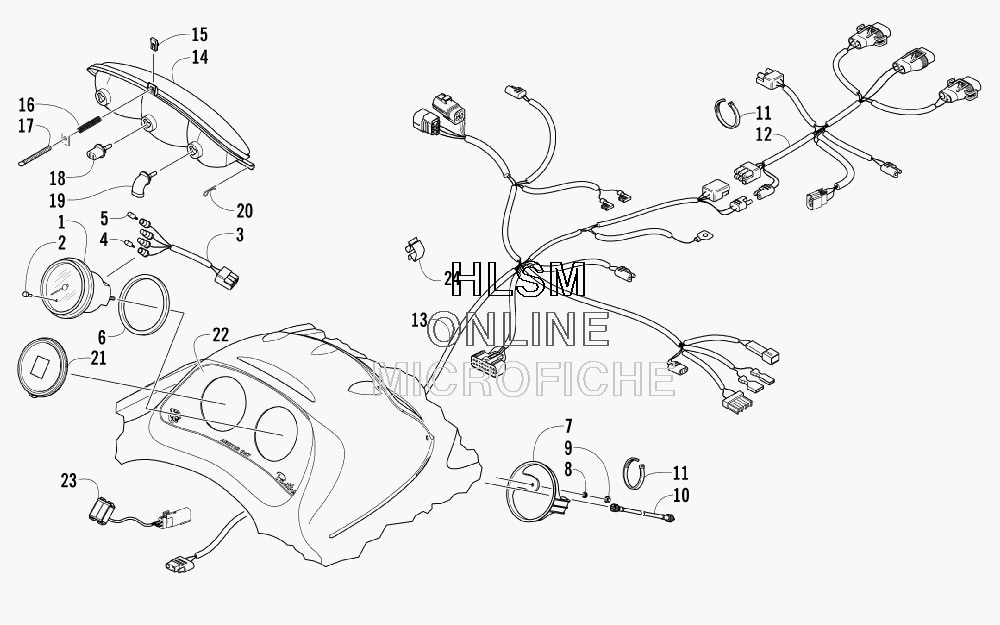

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2-5)SPEEDOMETER (INC. 2-5)
-
20620-073 ...KNOB, TRIPMETER...KNOB, TRIPMETER
-
30620-151 ...HARNESS, BULB - SPEEDOMETER (INC. 4-5)...HARNESS, BULB - SPEEDOMETER (INC. 4-5)
-
40620-149 ......BULB, INDICATOR......BULB, INDICATOR
-
50230-020 ......BULB, INSTRUMENT......BULB, INSTRUMENT
-
60620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
70620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
88050-212 WASHERWASHER
-
90623-038 NUT W/WASHERNUT W/WASHER
-
100620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
110123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
121686-194 HARNESS, HOODHARNESS, HOOD
-
131686-313 HARNESS, MAINHARNESS, MAIN
-
140609-250 LENS/REFLECTOR - HEADLIGHTLENS/REFLECTOR - HEADLIGHT
-
150623-757 NUT, SPEEDNUT, SPEED
-
160623-466 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
170623-467 SCREW, THUMBSCREW, THUMB
-
180609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
190609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
200623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
213706-393 PLUG, GAUGE HOLE (INCLUDED IN HOOD W/DECALS)PLUG, GAUGE HOLE (INCLUDED IN HOOD W/DECALS)
-
227611-411 DECAL, INSTRUMENT - HOOD (INCLUDED IN HOOD W/DECALS)DECAL, INSTRUMENT - HOOD (INCLUDED IN HOOD W/DECALS)
-
230630-216 LIGHT, INDICATOR - CHECK ENGINE/BATTERYLIGHT, INDICATOR - CHECK ENGINE/BATTERY
-
241623-200 CLIP, UCLIP, U
