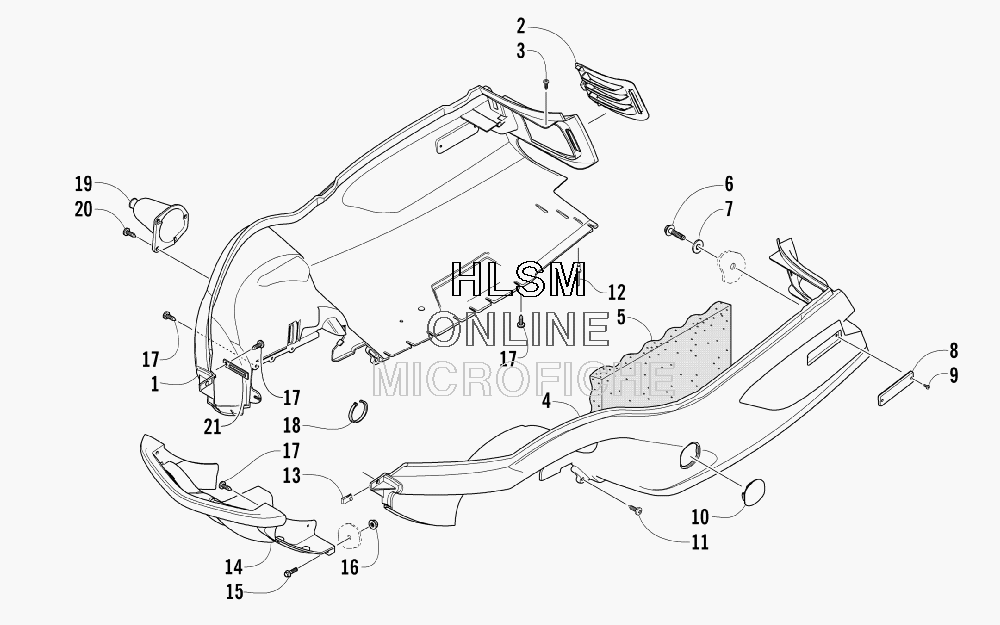

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat PANTHER 660 TRAIL - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3706-394 BELLY PAN - RIGHT - PLATINUM
    BELLY PAN - RIGHT - PLATINUM
  • 2
    4606-214 LOUVER, AIR-INTAKE - RIGHT - PLATINUM
    LOUVER, AIR-INTAKE - RIGHT - PLATINUM
  • 2
    4606-215 LOUVER, AIR-INTAKE - LEFT - PLATINUM
    LOUVER, AIR-INTAKE - LEFT - PLATINUM
  • 3
    0623-378 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    3706-395 BELLY PAN - LEFT - PLATINUM
    BELLY PAN - LEFT - PLATINUM
  • 5
    0617-315 FOAM, BELLY PAN - LEFT
    FOAM, BELLY PAN - LEFT
  • 6
    0623-647 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    0623-184 WASHER
    WASHER
  • 8
    0606-526 REFLECTOR, FRONT - AMBER
    REFLECTOR, FRONT - AMBER
  • 9
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 10
    4606-216 PANEL, ACCESS - DRIVE CLUTCH - PLATINUM
    PANEL, ACCESS - DRIVE CLUTCH - PLATINUM
  • 11
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    8061-508 RIVET
    RIVET
  • 13
    0623-427 NUT, U
    NUT, U
  • 14
    3606-989 BUMPER, FRONT - PLATINUM
    BUMPER, FRONT - PLATINUM
  • 15
    8020-040 SCREW, CAP
    SCREW, CAP
  • 16
    8047-366 NUT, LOCK
    NUT, LOCK
  • 17
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
  • 19
    0605-332 BOOT, STEERING - RIGHT
    BOOT, STEERING - RIGHT
  • 19
    0605-333 BOOT, STEERING - LEFT
    BOOT, STEERING - LEFT
  • 20
    1623-429 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 21
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
