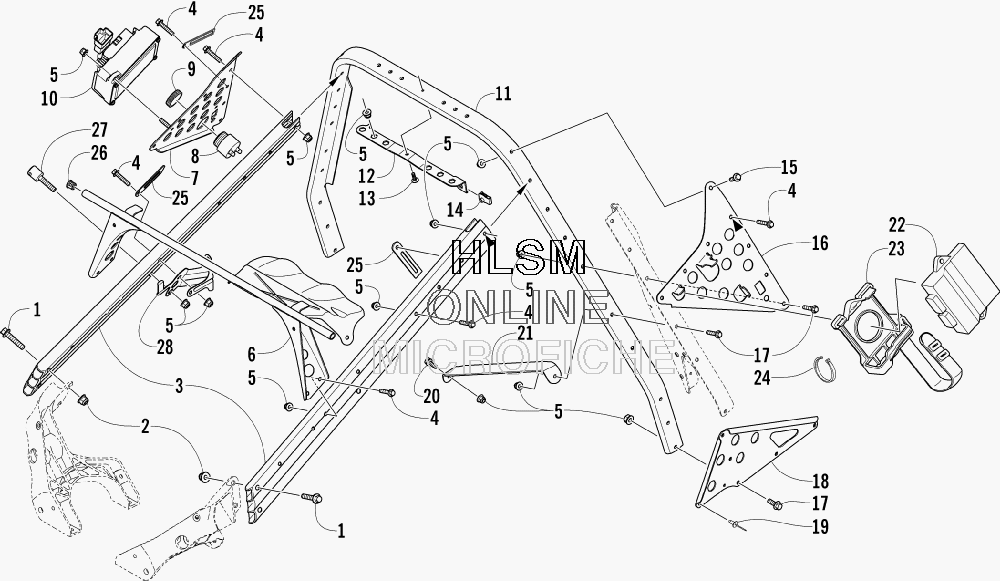

STEERING SUPPORT ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
18408-840 SCREW, CAPSCREW, CAP
-
28427-802 NUT, HEXNUT, HEX
-
28427-802 NUT, HEXNUT, HEX
-
30607-814 FRAME, UPPER - FRONTFRAME, UPPER - FRONT
-
48408-635 SCREW, CAPSCREW, CAP
-
58427-602 NUT, LOCKNUT, LOCK
-
63706-659 BRACKET, SUPPORT - HEADLIGHT W/HEATSHIELDBRACKET, SUPPORT - HEADLIGHT W/HEATSHIELD
-
71707-100 GUSSET, SUPPORT - STEERING - RIGHTGUSSET, SUPPORT - STEERING - RIGHT
-
80630-010 ALARM, REVERSE (INC. 9)ALARM, REVERSE (INC. 9)
-
90630-017 ...RING, RETAINING...RING, RETAINING
-
100630-201 UNIT, CHASSIS CONTROL - CCUUNIT, CHASSIS CONTROL - CCU
-
110605-862 SUPPORT, STEERINGSUPPORT, STEERING
-
124606-771 PLATE, NUTPLATE, NUT
-
130623-574 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140423-577 CLIP, U-NUTCLIP, U-NUT
-
158408-625 SCREW, CAPSCREW, CAP
-
160607-897 GUSSET, SUPPORT - STEERING - LEFTGUSSET, SUPPORT - STEERING - LEFT
-
178408-630 SCREW, CAPSCREW, CAP
-
183706-634 BRACKET, FOOTREST - OUTER RIGHTBRACKET, FOOTREST - OUTER RIGHT
-
183706-635 BRACKET, FOOTREST - OUTER LEFTBRACKET, FOOTREST - OUTER LEFT
-
191623-130 RIVETRIVET
-
208408-616 SCREW, CAPSCREW, CAP
-
214606-408 BRACKET, SUPPORT - CLUTCH GUARDBRACKET, SUPPORT - CLUTCH GUARD
-
223007-237 ECUECU
-
230645-506 MOUNT, ECUMOUNT, ECU
-
240123-903 CABLE TIECABLE TIE
-
253002-964 CLIP, WIRECLIP, WIRE
-
260623-562 PLUGPLUG
-
272612-061 PIN, RESONATORPIN, RESONATOR
-
283706-682 BRACKET, MOUNTING - COOLANT TANKBRACKET, MOUNTING - COOLANT TANK
