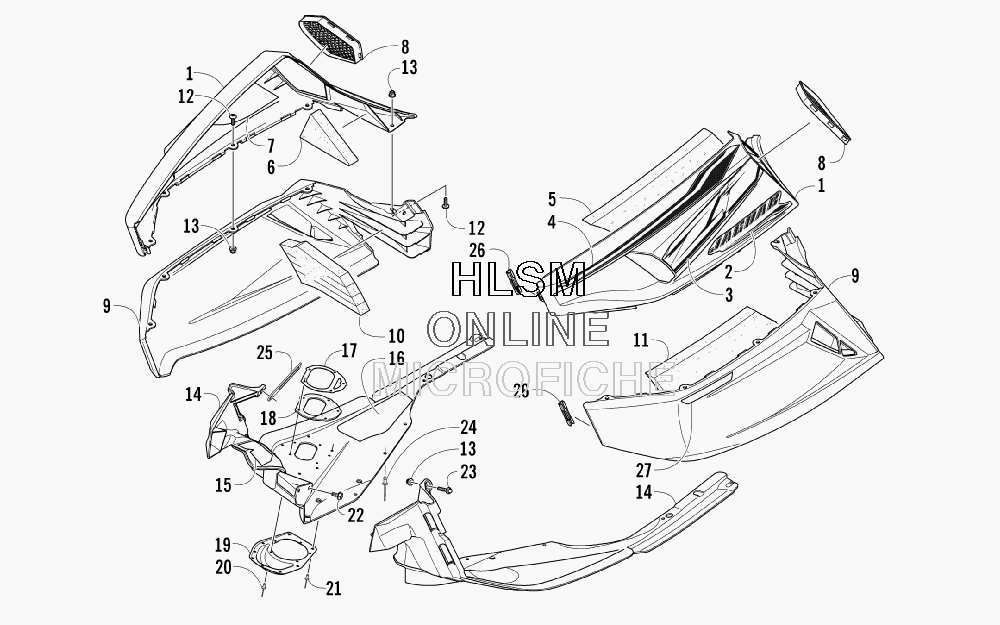

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-062 PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-7)
    PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-7)
  • 1
    2718-061 PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-6)
    PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-6)
  • 2
    7611-568 ...DECAL, VENT - UPPER SIDE PANEL - LOWER RIGHT
    ...DECAL, VENT - UPPER SIDE PANEL - LOWER RIGHT
  • 2
    7611-569 ...DECAL, VENT - UPPER SIDE PANEL - LOWER LEFT
    ...DECAL, VENT - UPPER SIDE PANEL - LOWER LEFT
  • 3
    7611-566 ...DECAL, VENT - UPPER SIDE PANEL - CENTER RIGHT
    ...DECAL, VENT - UPPER SIDE PANEL - CENTER RIGHT
  • 3
    7611-567 ...DECAL, VENT - UPPER SIDE PANEL - CENTER LEFT
    ...DECAL, VENT - UPPER SIDE PANEL - CENTER LEFT
  • 4
    7611-564 ...DECAL, VENT - UPPER SIDE PANEL - UPPER RIGHT
    ...DECAL, VENT - UPPER SIDE PANEL - UPPER RIGHT
  • 4
    7611-565 ...DECAL, VENT - UPPER SIDE PANEL - UPPERLEFT
    ...DECAL, VENT - UPPER SIDE PANEL - UPPERLEFT
  • 5
    0617-514 ...FOAM, UPPER SIDE PANEL - RIGHT
    ...FOAM, UPPER SIDE PANEL - RIGHT
  • 5
    0617-515 ...FOAM, UPPER SIDE PANEL - LEFT
    ...FOAM, UPPER SIDE PANEL - LEFT
  • 6
    0617-528 ...FOAM, UPPER SIDE PANEL - REAR
    ...FOAM, UPPER SIDE PANEL - REAR
  • 7
    4606-799 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 8
    4606-354 VENT, UPPER SIDE PANEL - REAR - RIGHT
    VENT, UPPER SIDE PANEL - REAR - RIGHT
  • 8
    4606-355 VENT, UPPER SIDE PANEL - REAR - LEFT
    VENT, UPPER SIDE PANEL - REAR - LEFT
  • 9
    3706-704 PANEL, SIDE - LOWER - RIGHT W/FOAM (INC. 10-11 AND 27)
    PANEL, SIDE - LOWER - RIGHT W/FOAM (INC. 10-11 AND 27)
  • 9
    3706-703 PANEL, SIDE - LOWER - LEFT W/FOAM (INC. 10-11 AND 27)
    PANEL, SIDE - LOWER - LEFT W/FOAM (INC. 10-11 AND 27)
  • 10
    0617-530 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
    ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
  • 10
    0617-531 ...FOAM, LOWER SIDE PANEL - REAR - LEFT
    ...FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 11
    0617-516 ...FOAM, LOWER SIDE PANEL - RIGHT
    ...FOAM, LOWER SIDE PANEL - RIGHT
  • 11
    0617-517 ...FOAM, LOWER SIDE PANEL - LEFT
    ...FOAM, LOWER SIDE PANEL - LEFT
  • 12
    8408-620 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    3706-705 PLATE, SKID - RIGHT W/FOIL (INC. 15-16)
    PLATE, SKID - RIGHT W/FOIL (INC. 15-16)
  • 14
    4606-707 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 15
    4606-796 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 16
    4606-797 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 17
    1712-328 PLATE, EXHAUST - OUTLET
    PLATE, EXHAUST - OUTLET
  • 18
    2612-122 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 19
    1712-329 SHIELD, HEAT - EXHAUST OUTLET
    SHIELD, HEAT - EXHAUST OUTLET
  • 20
    8060-510 RIVET, BLIND
    RIVET, BLIND
  • 21
    0623-778 RIVET, BULB
    RIVET, BULB
  • 22
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    8408-635 SCREW, CAP
    SCREW, CAP
  • 24
    8061-708 RIVET, BLIND
    RIVET, BLIND
  • 25
    3002-964 CLIP, WIRE
    CLIP, WIRE
  • 26
    3706-523 RETAINER, HINGE - SIDE PANEL
    RETAINER, HINGE - SIDE PANEL
  • 27
    7611-798 DECAL, REFLECTOR
    DECAL, REFLECTOR
