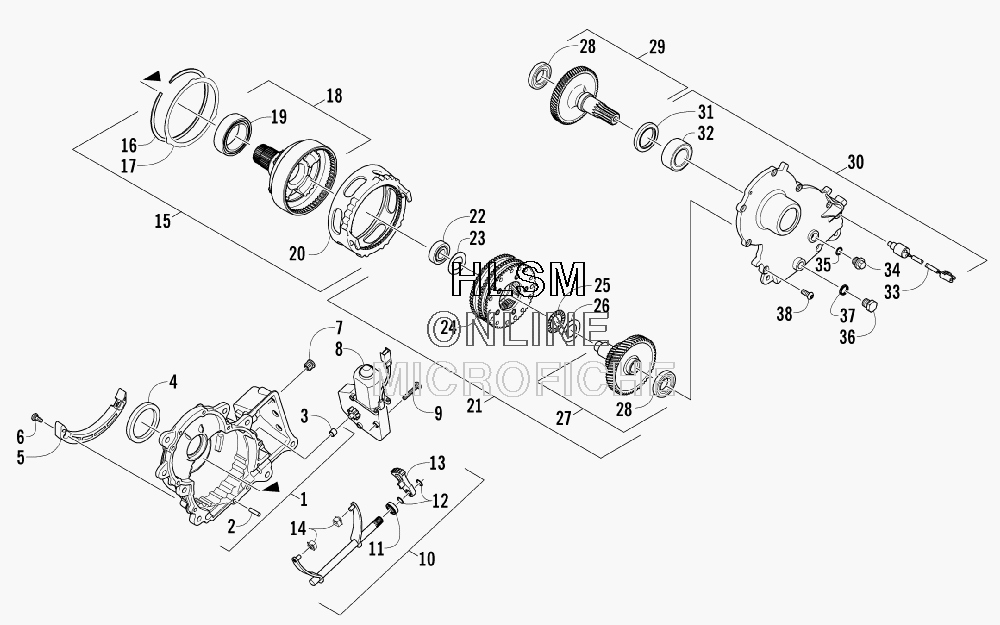

GEARCASE ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 0702-918 COMPLETE GEARCASE ASSEMBLY
    COMPLETE GEARCASE ASSEMBLY
  • 1
    0702-812 GEARCASE (INC. 2-4)
    GEARCASE (INC. 2-4)
  • 2
    1602-915 ...PIN, DOWEL
    ...PIN, DOWEL
  • 3
    1602-916 ...BEARING
    ...BEARING
  • 4
    1602-949 ...SEAL, OIL
    ...SEAL, OIL
  • 5
    1602-993 PROTECTOR, REVERSE GEARCASE
    PROTECTOR, REVERSE GEARCASE
  • 6
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    1602-917 PLUG, PLASTIC
    PLUG, PLASTIC
  • 8
    7999-272 ACTUATOR, SHIFT
    ACTUATOR, SHIFT
  • 9
    1623-644 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0702-835 FORK, SHIFT - ASSEMBLY (INC. 11-13)
    FORK, SHIFT - ASSEMBLY (INC. 11-13)
  • 11
    2602-013 ...SEAL, OIL
    ...SEAL, OIL
  • 12
    2602-057 ...RING, RETAINING
    ...RING, RETAINING
  • 13
    1602-970 ...ARM, SHIFT FORK
    ...ARM, SHIFT FORK
  • 14
    1602-847 BLOCK, SLIDER
    BLOCK, SLIDER
  • 15
    0702-910 SLIDER, OUTER - ASSEMBLY (INC. 16-20)
    SLIDER, OUTER - ASSEMBLY (INC. 16-20)
  • 16
    2602-040 ...RING, RETAINING
    ...RING, RETAINING
  • 17
    2602-064 ...WASHER, THRUST
    ...WASHER, THRUST
  • 18
    0702-722 ...SHAFT,OUTPUT (INC. 19)
    ...SHAFT,OUTPUT (INC. 19)
  • 20
    2602-063 ...SLIDER, OUTER
    ...SLIDER, OUTER
  • 21
    0702-779 GEAR, TRANSFER - 63/34T - ASSEMBLY (INC. 22-28)
    GEAR, TRANSFER - 63/34T - ASSEMBLY (INC. 22-28)
  • 22
    1602-842 ...BEARING
    ...BEARING
  • 23
    2602-058 ...WASHER, SPACER
    ...WASHER, SPACER
  • 24
    0702-867 ...GEAR, PLANETARY - ASSEMBLY
    ...GEAR, PLANETARY - ASSEMBLY
  • 25
    1602-840 ...WASHER, THRUST
    ...WASHER, THRUST
  • 26
    1602-841 ...BEARING, THRUST
    ...BEARING, THRUST
  • 27
    0702-778 ...GEAR, TRANSFER - 63T/34T (INC. ONE NO. 28)
    ...GEAR, TRANSFER - 63T/34T (INC. ONE NO. 28)
  • 28
    1602-981 ......BEARING
    ......BEARING
  • 29
    0702-688 SHAFT, INPUT - 57T (INC. ONE NO. 28)
    SHAFT, INPUT - 57T (INC. ONE NO. 28)
  • 30
    0702-814 COVER, GEARCASE (INC. 31-37)
    COVER, GEARCASE (INC. 31-37)
  • 31
    1602-875 ...SEAL, OIL
    ...SEAL, OIL
  • 32
    1602-982 ...BEARING
    ...BEARING
  • 33
    0630-224 ...SWITCH, GEAR INDICATOR
    ...SWITCH, GEAR INDICATOR
  • 34
    0623-293 ...PLUG, GEARCASE
    ...PLUG, GEARCASE
  • 35
    1602-213 ...O-RING
    ...O-RING
  • 36
    0812-006 ...PLUG, DRAIN - MAGNETIC
    ...PLUG, DRAIN - MAGNETIC
  • 37
    0830-017 ...GASKET, METAL
    ...GASKET, METAL
  • 38
    8468-616 SCREW, MACHINE
    SCREW, MACHINE
  • *
    4639-628 FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)
    FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)
