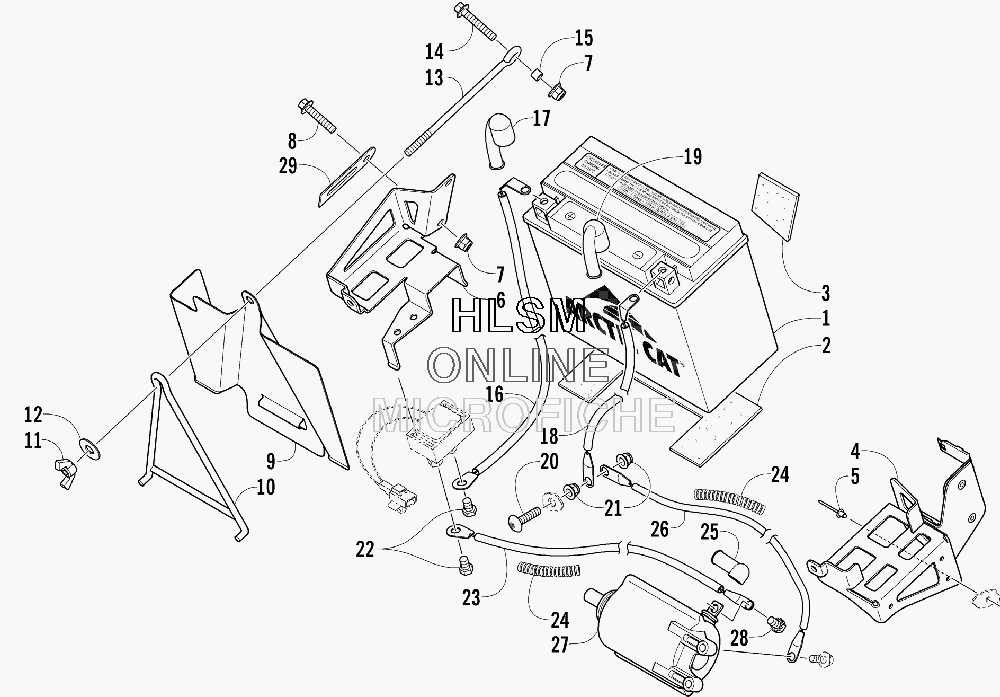

BATTERY AND TRAY ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0645-480 BATTERY
    BATTERY
  • 2
    0617-526 PAD, FOAM - BATTERY - BOTTOM
    PAD, FOAM - BATTERY - BOTTOM
  • 3
    0617-527 PAD, FOAM - BATTERY - SIDE
    PAD, FOAM - BATTERY - SIDE
  • 4
    0745-267 TRAY, BATTERY - INNER
    TRAY, BATTERY - INNER
  • 5
    8060-486 RIVET
    RIVET
  • 6
    0745-265 TRAY, BATTERY - OUTER
    TRAY, BATTERY - OUTER
  • 7
    8427-602 NUT, LOCK
    NUT, LOCK
  • 8
    8408-630 SCREW, CAP
    SCREW, CAP
  • 9
    0645-468 SHIELD, HEAT - BATTERY
    SHIELD, HEAT - BATTERY
  • 10
    0745-262 ROD, BATTERY HEAT SHIELD
    ROD, BATTERY HEAT SHIELD
  • 11
    1623-430 NUT, WING
    NUT, WING
  • 12
    8050-217 WASHER
    WASHER
  • 13
    0745-263 ROD, BATTERY - TOP
    ROD, BATTERY - TOP
  • 14
    8408-635 SCREW, CAP
    SCREW, CAP
  • 15
    0645-479 SPACER, BATTERY ROD
    SPACER, BATTERY ROD
  • 16
    0645-485 CABLE, BATTERY/SOLENOID (INC. 17)
    CABLE, BATTERY/SOLENOID (INC. 17)
  • 17
    0645-521 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 18
    0645-484 CABLE, BATTERY/GROUND (INC. 19)
    CABLE, BATTERY/GROUND (INC. 19)
  • 19
    0645-520 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 20
    8476-830 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8427-802 NUT, LOCK
    NUT, LOCK
  • 22
    1623-450 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
  • 23
    0645-486 CABLE, SOLENOID/STARTER (INC. 24-25)
    CABLE, SOLENOID/STARTER (INC. 24-25)
  • 24
    0619-342 ...CONDUIT
    ...CONDUIT
  • 25
    0645-522 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 26
    0645-505 CABLE, STARTER-TO-GROUND (INC. 24)
    CABLE, STARTER-TO-GROUND (INC. 24)
  • 27
    3007-219 MOTOR, STARTER
    MOTOR, STARTER
  • 28
    1623-451 BOLT, STARTER MOTOR W/WASHER
    BOLT, STARTER MOTOR W/WASHER
  • 29
    3002-964 CLIP, WIRE
    CLIP, WIRE
